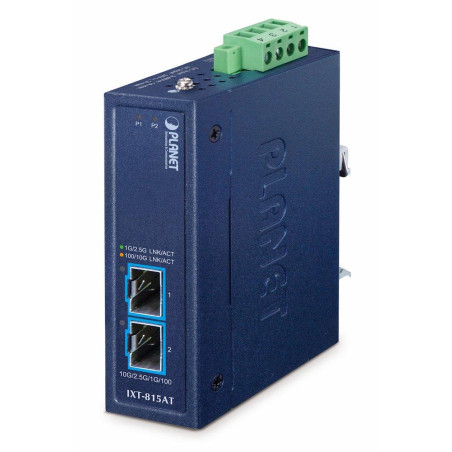

Planet IXT-815AT industrial compact converter 2x10Gb SFP+, ESD+EFT, IP30, -40~75°C, dual power (9-48VDC / 24VAC)

Compact industrial 2-port 10G/2.5G/1G/100Base-X SFP+ media converter for demanding industrial environments.

PLANET IXT-815AT is the smallest compact industrial 10G Ethernet media converter with dual SFP+ ports , providing wire-speed performance and exceptional flexibility for 10 Gigabit Ethernet expansion in demanding industrial environments. The device supports both single-mode and multi-mode fiber conversion and allows cascading to extend transmission distances.

The converter is equipped with a robust IP30 metal housing with redundant power supply system and a wide operating temperature range from -40 to +75°C . It also supports 10GPON to 10G Ethernet bridge function and is compatible with both XGS-PON and GPON ONT SFP modules for maximum deployment versatility.

Advanced network features
The device supports transparent IEEE 802.1Q VLAN tagging and multicast pass-through for seamless integration into tagged network environments. It also implements IEEE 802.3x flow control for effective data flow control and packet loss prevention.

High performance and reliability
With 4K MAC address table and auto-aging function, it ensures optimal network traffic management. The Realtek RTL8372NI chipset guarantees stable and high-speed data transmission with support for store-and-forward architecture.

Universal connectivity
The media converter enables conversion between different types of optical fibers including duplex to simplex fiber, 10GBase-X to 2.5G/1G/100Base-X fiber, and supports bridging between 10GPON and 10Gbps Ethernet for data centers.intra and enterprise networks.

BASIC SPECIFICATIONS

Model: IXT-815AT

Ports: 2× 10GBase-X SFP+

Supported speeds: 10G/2.5G/1G/100Mbps with auto-detection

Switching fabric: 40 Gbps

MAC address table: 4K with auto-aging

Jumbo frames: up to 12K

Power supply: 9–48 V DC or 24 V AC, redundant

Consumption: max. 8.46 W at 9 V DC

Operating temperature: -40 to +75°C

Humidity: 5-95% (non-condensing)

Protection: IP30

Dimensions: 104 × 70 × 30 mm

Weight: 254g

Mounting: DIN rail, wall-mounted

Certification: FCC Part 15 Class A, CE
