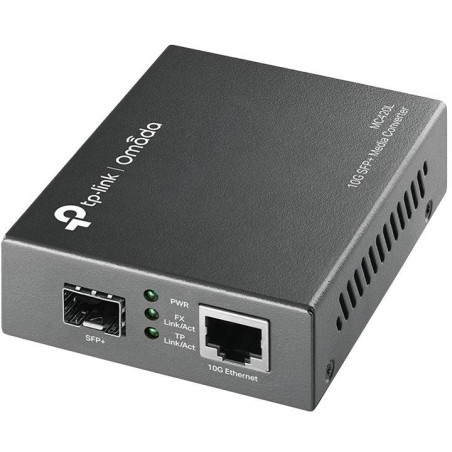

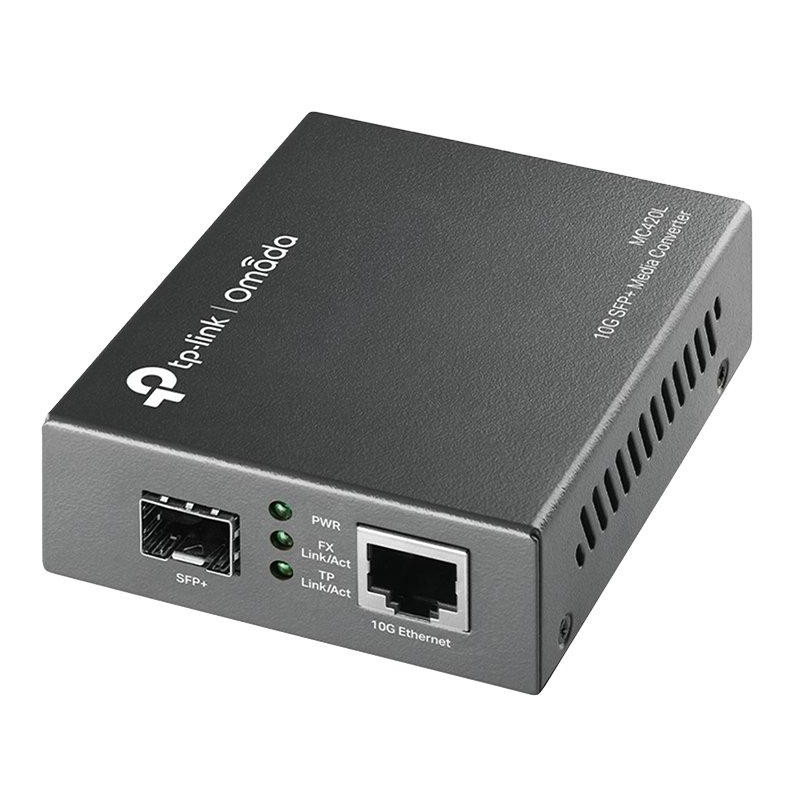

TP-Link MC420L Omada 10G Multi-Gigabit RJ45 to 10G SFP+

Powerful media converter designed for conversion between 10G optical and copper networks.

TP-Link MC420L is a professional media converter designed to convert between 10GBASE-SR/LR , 10GBASE-LRM optical media and 10GBASE-T copper media. The device allows you to easily extend the distance of your existing gigabit network via optical fiber when integrated with an SFP module .

The converter is ideal for creating long-distance point-to-point connections, making it the perfect solution for multi-building network connections, remote surveillance, or automated factory equipment. The MC420L offers flexible installation on standalone desktops or insertion into the TP-Link MC1400 chassis.

Flexible installation
The MC420L converter can be used as a standalone device or inserted into the TP-Link MC1400 chassis for centralized management of multiple converters in a rack.

Universal connectivity
The device is compatible with multiple types of optical media thanks to support for both multi-mode and single-mode SFP modules, allowing you to tailor the solution to specific network needs.

Clear signaling
Front panel status LEDs provide real-time status information, allowing you to monitor current network activity and quickly identify any problems.

BASIC SPECIFICATIONS

Standards: IEEE 802.3, 802.3ab, 802.3an, 802.3z, 802.3ae, 802.3aq, 802.3x

Interface: 1× SFP+, 1× 1G/2.5G/5G/10Gbps RJ-45

Transmission media: multi-mode/single-mode optical fiber

Transmission distance: depends on the SFP module used

Wavelength: depends on the SFP module used

Dimensions: 94.5 × 73 × 27 mm

Operating temperature: 0 °C to +50 °C

Storage temperature: -40°C to +70°C

Operating humidity: 10-90% non-condensing

Power supply: 9 V / 0.6 A (adapter included)

Maximum consumption: 4.12 W
