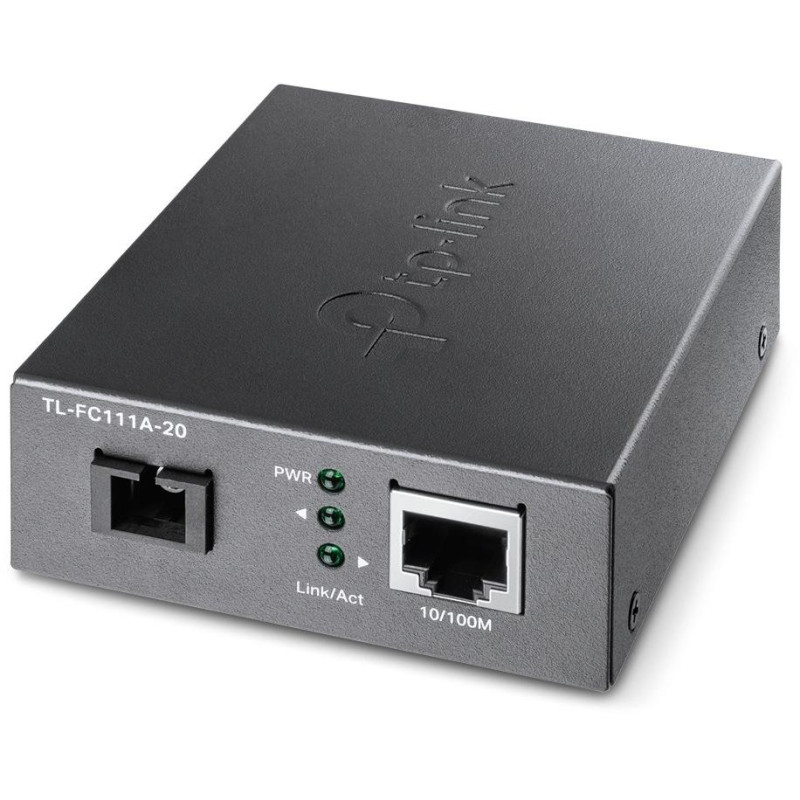

TP-Link TL-FC111A-20
Ethernet/optical media converter using WDM (Wavelength Division Multiplexing) technology, which is equipped with one 10/100 Mbps RJ-45 port and single-mode with SC connector . On the other side of the optical fiber, the TL-FC111B-20 converter is used.
Converter of metallic network to optical. It is suitable wherever the distance between two points is longer than allowed by a classic metallic network and galvanic connection cannot be used. Optical fibers also resist electromagnetic or atmospheric interference very well.
Wavelength:
TL-FC111A-20: 1550nm TX, 1310nm RX
TL-FC111B-20: 1310nm TX, 1550nm RX
Connecting devices without an optical interface:
Connecting devices with/without optical interface:
WDM Singlemode Converter - a converter with bidirectional data transmission over a single optical fiber. Bidirectional transmission is achieved by using two wavelengths, one for transmission and the other for reception. This eliminates the need for a separate fiber for each direction of transmission.
BASIC SPECIFICATIONS
Ports: 1x 10/100 Mbps RJ-45, 1x 100 Mbps SC
Optical line type: 9/125 µm single-mode
Metallic cable type: UTP/STP Cat5 or better
Range: up to 20 km
Standards Compliance: IEEE 802.3, IEEE 802.3i, IEEE 802.3u
Power supply: external adapter 5 V / 0.6 A
Dimensions: 94.5 x 73 x 27 mm
