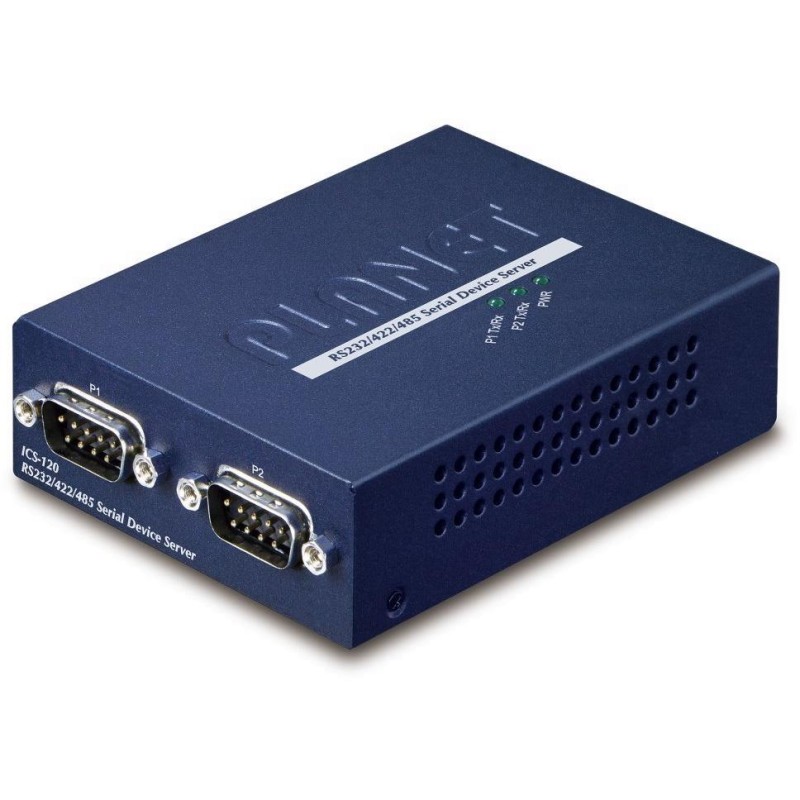

PLANET ICS-120
RS485/422/232 to TCP/IP protocol converter. IP communication converter (RJ-45 10/100 Base-TX) to serial lines of types RS-485, RS-422 and RS-232, serial communication type is optional.
Serial communication transmission over IP protocol is particularly used for data acquisition, control machines and control of camera systems . It also replaces the physical conversion of the serial protocol to another transmission medium. It practically extends the range of serial communication indefinitely.
The converter enables effective remote management via Web, Telnet, VCOM . Other management interfaces and protocols include PLANET Smart Discovery Utility, UNI-NMS monitoring and SNMP v1/v2c, SNMP trap . It supports both application and serial operating modes for alarm or IP address connection, which saves network administrator time in detecting and locating network problems without the need for visual inspection of cabling and devices.
Ability to work with character delimiter:
- the ability to enter a start and end character that determines the start and end of serial device communication. Data is not sent over Ethernet before the end character is received
- possibility to set reception from the serial port so that if it contains a certain character, the communication is ignored
You can set a fixed time after which communication should not be performed (e.g. to save telecommunication costs).
BASIC SPECIFICATIONS
Physical properties:
Ports: 2 x DB9 (RS-232/422/485), 1 x RJ-45 10/100BASE-TX
Design: desktop, DIN rail (mounting kit not included), wall-mounted
OAM support: no
Power supply: external DC 5 V, 2 A power supply, max. 5.5 W (power supply included)
Protection: ESD up to 6 KV
Operating temperature: -10 to +60 °C
Dimensions: 97 x 70 x 26 mm
Weight: 189g
Administration functions:
Management: Web, Telnet, VCOM, SNMP v1/v2c, SNMP trap, UNI-NMS monitoring, PLANET Smart Discovery Utility
IP protocol version: IPv4, IPv6
Diagnostics: Planet Smart Discovery automatic search utility
Operating mode: TCP server, TCP client, UDP client, VCOM (Virtual COM), RFC2217, Telnet server, Modbus converter server/client, master/slave
