Planet converter RS-232/422/485 to IP, 1x COM, 100Mb SFP, -10~+60°C, SNMP+Telnet

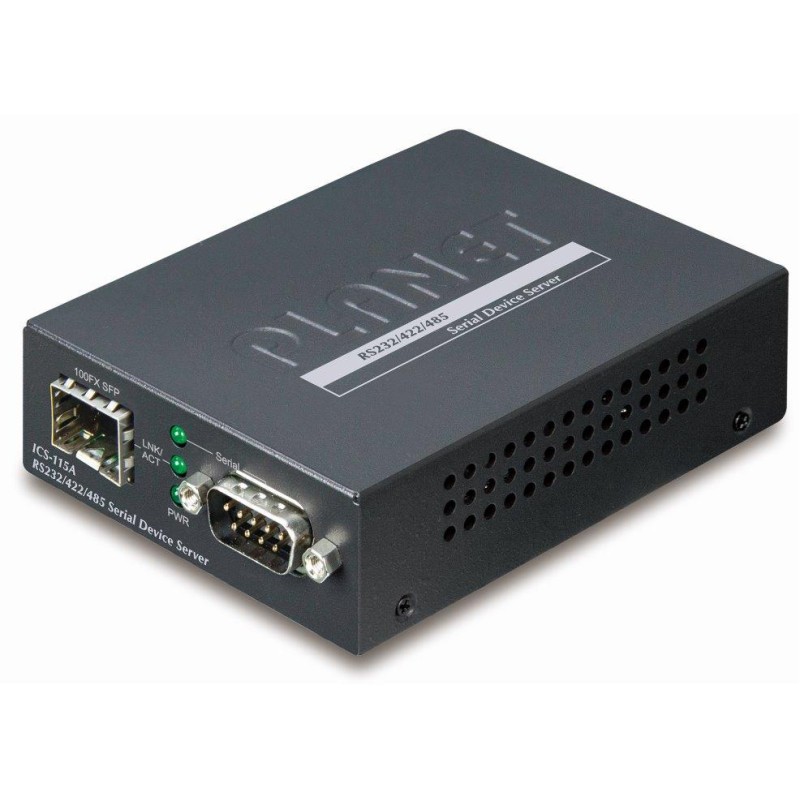

PLANET ICS-115A

RS485/422/232 to TCP/IP protocol converter. IP communication converter from 100Base-FX via SFP module to serial lines of types RS-485, RS-422 and RS-232. Serial communication type is optional.

Serial communication transmission over IP protocol is particularly used for data acquisition, control machines and control of camera systems . It also replaces the physical conversion of the serial protocol to another transmission medium. It practically extends the range of serial communication indefinitely.

The ICS-110 converter enables efficient remote management via Web, Telnet or VCOM . It supports both application and serial operating modes for alarm or IP address connection, saving network administrators time in detecting and locating network problems without the need for visual inspection of cabling and devices.

Please note that an optical interface is required to access device management.

Ability to work with character delimiter:

•

• The ability to specify a start and end character that determines the start and end of serial device communication. Data is not sent over Ethernet before the end character is received.

• possibility to set reception from the serial port so that if it contains a certain character, the communication is ignored


You can set a fixed time after which communication should not take place (e.g. to save data transmission costs).

BASIC SPECIFICATIONS

Physical properties:

Ports: 1 x RS-232/422/485, 1 x SFP 100BASE-FX

Design: desktop, DIN rail, wall-mounted

OAM support: no

Power supply: external power supply 5 V DC, 2 A, power consumption max. 5.5 W

Protection: ESD up to 6 KV

Operating temperature: -10 to 60 °C

Dimensions: 97 x 70 x 26 mm

Weight: 185g

Can be installed in chassis: MC-700, MC-1500, MC-1500R

Administration functions:

Management: Web, Telnet, VCOM, SNMP v1, v2c

IP protocol version: IPv4, IPv6

Diagnostics: Planet Smart Discovery automatic search utility

Operating mode: TCP server, TCP client, UDP client, VCOM, RFC2217, Telnet server, Modbus server/client converter, master, slave
