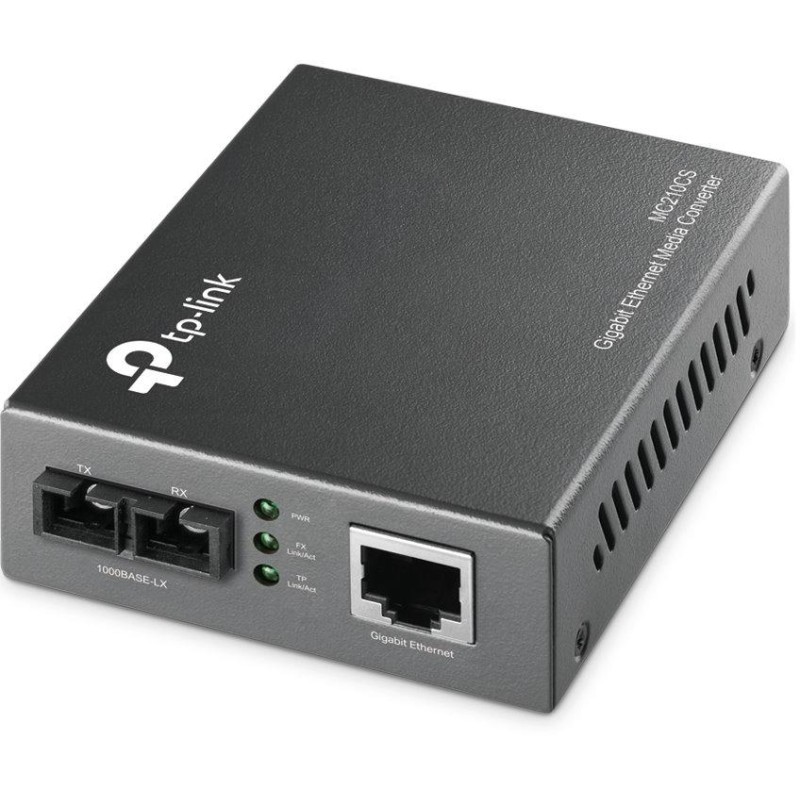

TP-Link MC210CS Converter 1000 mbps Ethernet/Optics (single-mode)

TP-Link MC210CS

Media converter designed to convert media from 1000Base-LX/LH optical lines to 1000Base-T metallic lines and vice versa . The MC210CS media converter, which was designed according to the IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards, is designed for use with single-mode optical cables with SC connectors . The MC210CS media converter supports the long-wave laser (LX) specification at maximum packet forwarding speed. It uses the 1310 nm wavelength for both receiving and sending data.

Other features of this module include the ability to use it as a standalone device (no chassis required), automatic MDI/MDI-X detection for the TX port, and front panel status LEDs. The MC210CS module supports data transmission over single-mode fiber optic cable up to 15 km .

•

• Supports 1000 Mbit/s in full duplex mode

• Complies with IEEE 802.3ab and IEEE 802.3z standards.

• Allows automatic configuration of forced/automatic transmission mode for the FX port.

• Extends the range of optical lines up to 15 km.


The media converter only supports gigabit ethernet. It does not support 10/100 Mbps speeds.

BASIC SPECIFICATIONS

Ports: 1x 1000 Mbps RJ-45, 1x 1000 Mbps SC/UPC

Wavelength: 1310 nm (Single Mode)

Standards IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z

Maximum consumption: 1.8 W

Dimensions: 94.5 x 73 x 27 mm
