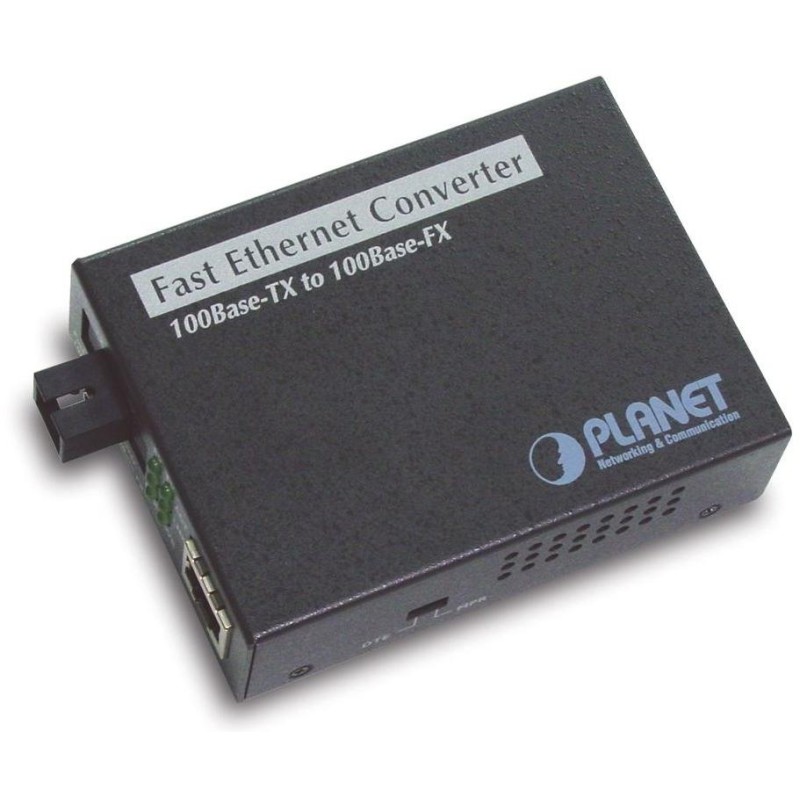

Planet FT-806A20, converter 10/100Base-TX/100FX, WDM, 1310 nm

PLANET FT-806A20

Fast Ethernet converter/switch 10/100Base-TX-100Base-FX, SC simplex connector, max 20km, full duplex, singlemode, bidirectional transmission over one fiber (WDM). Transmits at 1310nm, receives at 1550nm. LLR fault propagation.

WDM (Wavelength Division Multiplexing) converters allow Fast Ethernet to be operated over a single optical fiber. They allow you to immediately double the capacity of already laid optical paths. They convert metallic Fast Ethernet 100Base-T to optical 100Base-FX. Thanks to the fact that these are real switches, the individual interconnected network segments are always separated from collisions and therefore their range is always maximum.

For proper operation, you need to purchase the devices in pairs, i.e. one FT-806A and one FT-806B. Each of them receives and transmits at a different light wavelength. The converters are designed for single mode fibers, have a range of 20km.

BASIC SPECIFICATIONS

Ports:

1 x 10/100Base-TX, RJ-45

1 x 100Base-FX, SC connector

Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Transmission support: JumboFrame 1k MAC addresses

OAM support: no

Power supply: from external adapter, 5V/2A DC

Operating temperature: 0 to 50°C, humidity <90%

Dimensions: 97 x 69 x 26 mm

Weight: 200g

Can be installed in chassis: MC-700, MC-1500R, MC-1500, MC-1500R48
