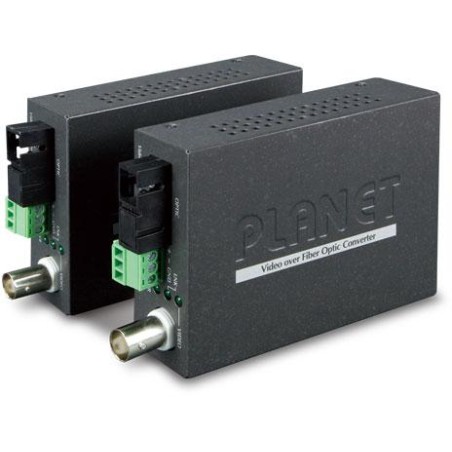

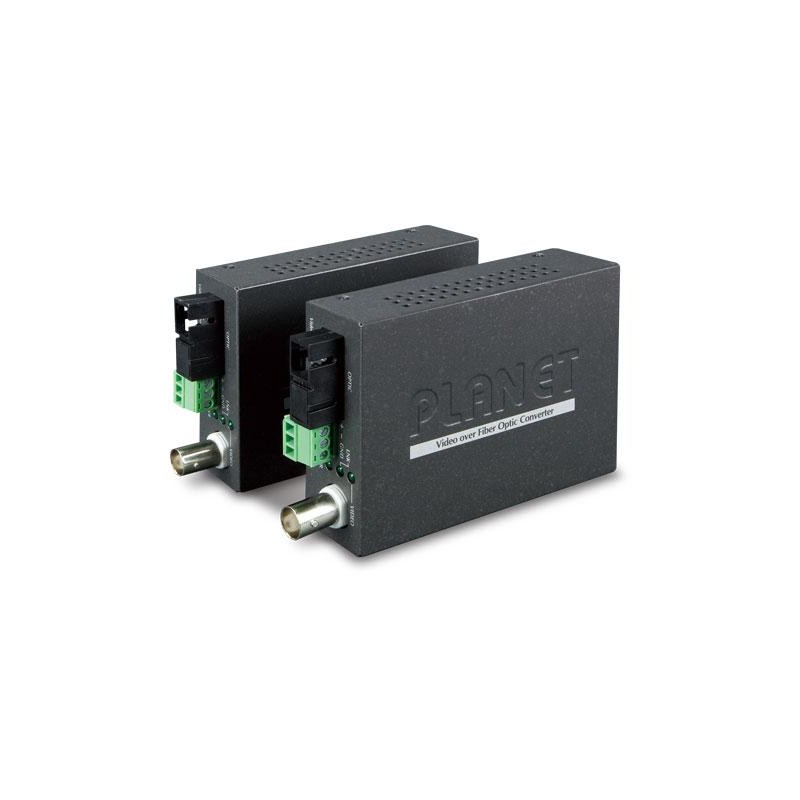

Planet VF-106G-KIT opto konvertor, 1x video (AHD/TVI/CVI/CVBS), 1x RS-485, singlemode (SC), pár
  • Planet VF-106G-KIT opto konvertor, 1x video (AHD/TVI/CVI/CVBS), 1x RS-485, singlemode (SC), pár

Planet VF-106G-KIT opto converter, 1x video (AHD/TVI/CVI/CVBS), 1x RS-485, singlemode (SC), pair

NETPLA1306
Grade
Write your review
PLANET VF-106G-KIT; Video converter to optics, 1x AHD/TVI/CVI/CVBS interface + 1x RS-485, for single mode optical fiber, range...
€315.41
Tax included
€260.67 Tax excluded
i
The amount of VAT applied is 21% for the country Czechia.
Delivered in 5 days
Quantity
Available
1 Item

Ask about the product on WhatsApp


Business terms and conditions



Delivery policy



Return policy

help_outlineProduct inquiry by email
Description

PLANET VF-106G-KIT

Video converter to optical, 1x AHD/TVI/CVI/CVBS interface + 1x RS-485, for single mode optical fiber, range <20 km. SC optical connector, single fiber (WDM technology). RS-485 with surge protection. DC 5V power supply.

4-in-1 converter for transmitting camera video signals over a single optical fiber. It consists of a transmitter and receiver. It is used for uncompressed transmission of video signals over optical paths.



BASIC SPECIFICATIONS



Video transmission interface: AHD, TVI, CVI, CVBS (PAL, NTSC, SECAM)

Ports:

1 x optical port: WDM 1310/1550nm, SC connector

1 x video input, BNC connector, 75 ohm, transmitted bandwidth: 60MHz

1 x RS-485, depending on settings, throughput up to 115kbps, range up to 1km, one-way transmission from receiver to transmitter, typically for telemetry/camera recording control

Video signal distortion by amplification: <1.3%, phase shift <1.3°; SNR > 67dB

Power supply: 5V DC, power consumption <5W, power supply included

Operating temperature: -25°C to 70°C, humidity <95%

Dimensions: 94 x 70 x 26 mm

Weight: 200g


wheel.jpgOther downloads


Product Details
PLANET Technology
NETPLA1306
8592457212850
1 Item

Data sheet

Color
Black
Warranty period for registration number (months)
26
Manufacturer
PLANET Technology
Warranty length (months)
26
Processed
Approved
Weight (g)
200
Dimensions
94 × 70 × 26mm
Management
No
Audio input/output
No
RS-232 port
No
MODBUS support
No
Conversion
Optical/coax + serial port
Serial port (number)
1
RS-485 port
Yes
HD-TVI video input
Yes
HD-SDI video input
No
HD-CVI video input
Yes
For technology
PAL (CVBS)
Number of channels
1
AHD video input
Yes
Max resolution (Mpx)
2
3G-SDI video input
No
Video input PAL (CVBS)
Yes
Contacts (NC/NO)
No
Zboží určeno pro
Commercial - pro profesionální použití
