Planet VF-101G-KIT opto konvertor, 1x video (AHD/TVI/CVI/CVBS), 1x RS-485, singlemode (ST), pár
  • Planet VF-101G-KIT opto konvertor, 1x video (AHD/TVI/CVI/CVBS), 1x RS-485, singlemode (ST), pár

Planet VF-101G-KIT opto converter, 1x video (AHD/TVI/CVI/CVBS), 1x RS-485, singlemode (ST), pair

NETPLA1257
Grade
Write your review
PLANET VF-101G-KIT; Video converter to optics, 1x AHD/TVI/CVI/CVBS interface + 1x RS-485, for single mode optical fiber, range...
€298.59
Tax included
€246.77 Tax excluded
i
The amount of VAT applied is 21% for the country Czechia.
To order
Quantity
Out of stock

Ask about the product on WhatsApp


Business terms and conditions



Delivery policy



Return policy

help_outlineProduct inquiry by email
Description

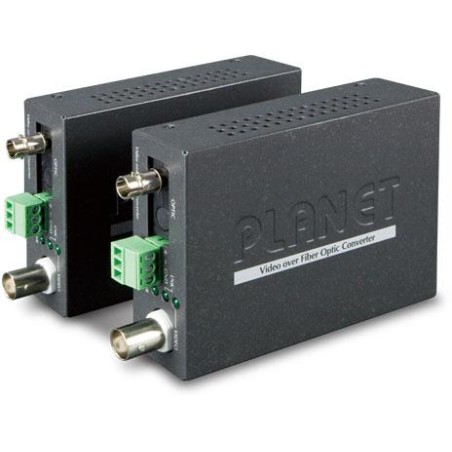

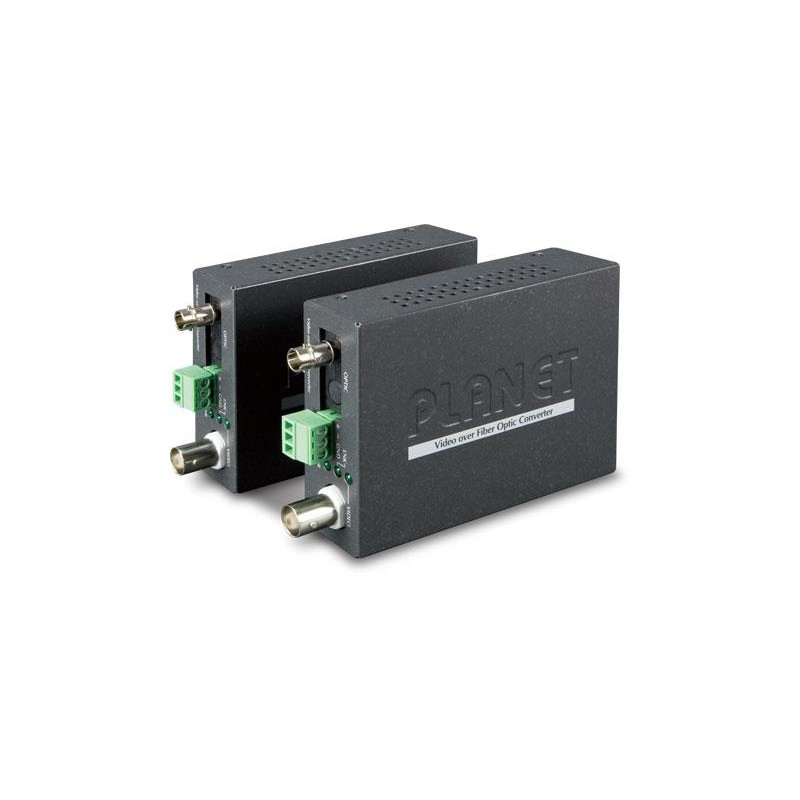

PLANET VF-101G-KIT

Video converter to optical, 1x AHD/TVI/CVI/CVBS interface + 1x RS-485, for single mode optical fiber, range <20 km. ST optical connector, single fiber (WDM technology). RS-485 with surge protection. DC 5V power supply.

4-in-1 converter for transmitting camera video signals over a single optical fiber. It consists of a transmitter and receiver. It is used for uncompressed transmission of video signals over optical paths.



BASIC SPECIFICATIONS



Video transmission interface: AHD, TVI, CVI, CVBS (PAL, NTSC, SECAM)

Ports:

1 x optical port: WDM 1310/1550nm, ST connector, singlemode 9/125um

1 x video input, BNC connector, 75 ohm, transmitted bandwidth: 60MHz

1 x RS-485, depending on settings, throughput up to 115kbps, range up to 1km, one-way transmission from receiver to transmitter, typically for telemetry/camera recording control

Video signal distortion by amplification: <1.3%, phase shift <1.3°; SNR > 67dB

Power supply: 5V DC, power consumption <5W, power supply included

Operating temperature: -25°C to 70°C, humidity <95%

Dimensions: 94 x 70 x 26 mm

Weight: 200g


wheel.jpgOther downloads


Product Details
PLANET Technology
NETPLA1257

Data sheet

Color
Black
Warranty period for registration number (months)
26
Manufacturer
PLANET Technology
Warranty length (months)
26
Processed
Approved
Weight (g)
200
Dimensions
94 × 70 × 26mm
Management
No
Audio input/output
No
RS-232 port
No
MODBUS support
No
Conversion
Optical/coax + serial port
Serial port (number)
1
RS-485 port
Yes
HD-TVI video input
Yes
HD-SDI video input
No
HD-CVI video input
Yes
For technology
PAL (CVBS)
Number of channels
1
AHD video input
Yes
Max resolution (Mpx)
2
3G-SDI video input
No
Video input PAL (CVBS)
Yes
Contacts (NC/NO)
No
Zboží určeno pro
Commercial - pro profesionální použití
