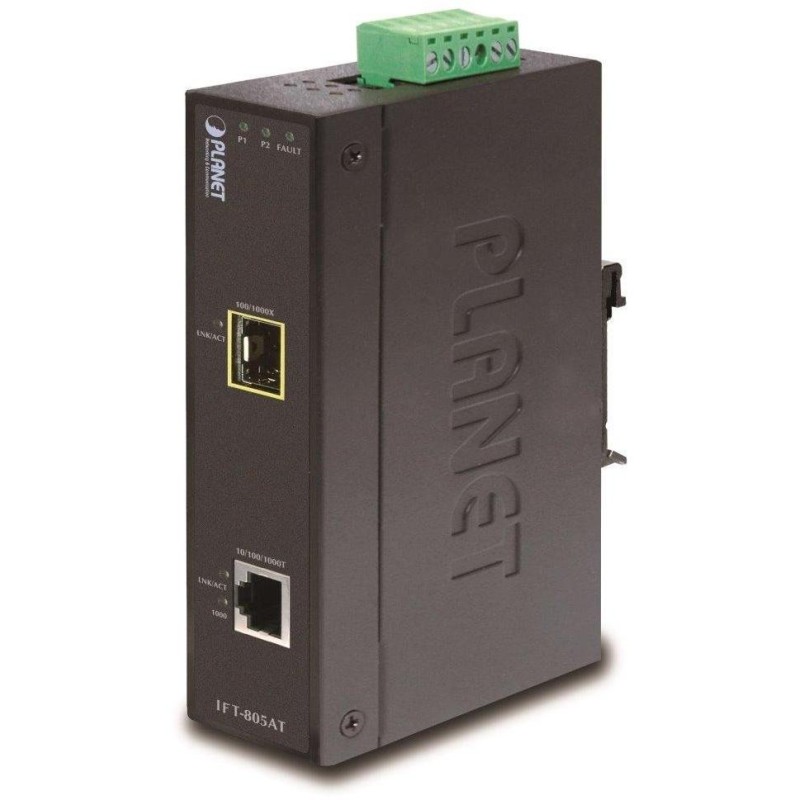

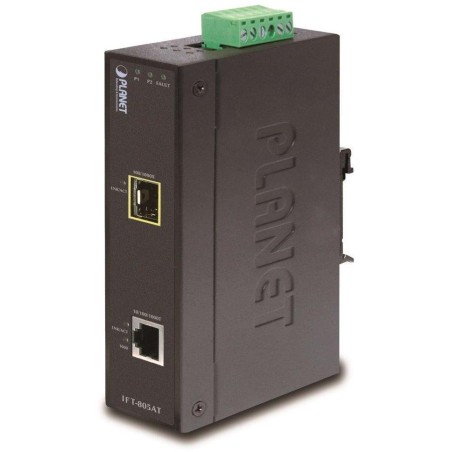

Planet IFT-805AT
100Base-TX /100base-FX optical converter for industrial applications with built-in switch. Optical port with SFP connector.
Redundant power supply, IP30 protection, aluminum housing, operating temperature -40 to 75 degrees C. Mounting on DIN rail or directly on the wall. Alarm switch in case of connection failure.
The IFT-80xT series of industrial converters expands the possibilities of Ethernet applications over optical lines in demanding environments such as factories, production halls or outdoor installations on roofs and attics. The converters are robust and resistant to a wide range of ambient temperatures, shocks, surges and mechanical damage. The casing is made with an IP30 protection level, they can be easily installed on a DIN rail or directly on a wall, the power supply is redundant in the range of 12 to 48V DC.
BASIC SPECIFICATIONS
Physical properties:
Ports: 1 x RJ-45 10/100Base-TX, 1 x SFP 100Base-FX
Transmission support: Frame 1522 B
Design: DIN rail, wall-mounted
OAM support: no
Power supply: 24-48V DC redundant power supply, connection possible from two different sources (not included), total power consumption up to 3W
Protection: ESD up to 6KV DC, EFT up to 6KV DC, reverse polarity protection, power connection on the terminal block, location on the bottom panel (does not interfere with wall mounting)
Operating temperature: -40 to 75°C
Dimensions: 135 x 85 x 32 mm
Weight: 430g
Can be installed in a chassis: no
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
DIN rail mounting :
Wall mounting using the supplied frame :
