Planet TSN-900-2T2S průmyslový TSN media konvertor, 2x1Gb, 2x2.5Gb SFP, 1x RJ45-to-RS232, RING, 1588PTP, -40~75°C
  • Planet TSN-900-2T2S průmyslový TSN media konvertor, 2x1Gb, 2x2.5Gb SFP, 1x RJ45-to-RS232, RING, 1588PTP, -40~75°C
  • Planet TSN-900-2T2S průmyslový TSN media konvertor, 2x1Gb, 2x2.5Gb SFP, 1x RJ45-to-RS232, RING, 1588PTP, -40~75°C
  • Planet TSN-900-2T2S průmyslový TSN media konvertor, 2x1Gb, 2x2.5Gb SFP, 1x RJ45-to-RS232, RING, 1588PTP, -40~75°C

Planet TSN-900-2T2S industrial TSN media converter, 2x1Gb, 2x2.5Gb SFP, 1x RJ45-to-RS232, RING, 1588PTP, -40~75°C

NETPLA2594
Grade
Write your review

PLANET TSN-900-2T2S
...
€709.74
Tax included
€586.56 Tax excluded
i
The amount of VAT applied is 21% for the country Czechia.
To order
Quantity
Out of stock

Ask about the product on WhatsApp


Business terms and conditions



Delivery policy



Return policy

help_outlineProduct inquiry by email
Description

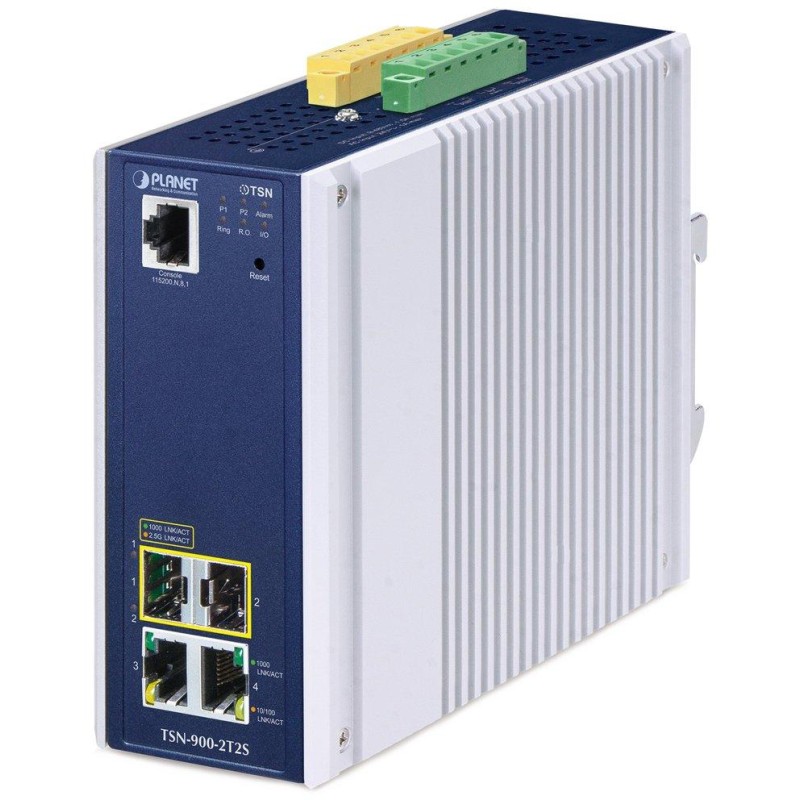

PLANET TSN-900-2T2S





A leading industrial media converter with advanced TSN technology for critical real-time applications.

PLANET TSN-900-2T2S is an innovative industrial media converter with Time-Sensitive Networking (TSN) technology, offering 2 10/100/1000BASE-T ports and 2 1G/2.5G SFP ports in a rugged metal housing with IP30 protection. The device ensures the transmission of critical data with extremely low latency and supports IEEE 1588 Precision Time Protocol (PTPv2) for accurate time synchronization on all ports.

With a robust design and an operating temperature range of -40 to +75°C, the TSN-900-2T2S is ideal for deployment in harsh industrial environments. The converter supports dual redundant power supply (DC 9–48V or AC 24V) with reverse polarity protection and offers DIN rail or wall mounting for flexible installation.






example of use






  • 2 10/100/1000BASE-T ports and 2 1G/2.5G SFP ports for flexible network connectivity
  • Advanced TSN technology with support for IEEE 802.1AS-Rev gPTP, 802.1Qbv, 802.1Qbu, 802.1CB
  • Industrial design with IP30 protection and operating temperature -40 to +75 °C
  • Dual redundant power supply with reverse polarity protection
  • 2 digital inputs (DI) and 2 digital outputs (DO) for alarm integration
  • Support ERPS (Ethernet Ring Protection Switching) with recovery time ≤ 10ms
  • Robust L2 features including VLAN, QoS, IGMP/MLD snooping and Link Aggregation
  • Advanced security including ACL, 802.1X, RADIUS/TACACS+ and DHCP Snooping
  • Possible monitoring of mobile applications CloudViewer Pro





BASIC SPECIFICATIONS

Physical properties:
Ports: 2× 10/100/1000Base-T RJ-45, 2× 100/1000Base-X SFP, 1× console port RJ-45 (RS-232), 1× 6pin terminal block (2× DI, 2× DO, 2× GND), 1× relay output (DC 24 V/ 1 A), 1× 6pin power terminal block
Memory: 64MB flash, 1024MB SDRAM
Throughput: 14 Gbps switching capacity, 10.41 Mpps switching rate (64 bytes)
Transmission support: Jumbo Frame up to 10 KB
Design: DIN rail or wall mounting
Power supply: dual input, DC 9-48 V or AC 24 V, maximum pPower consumption 10.18 W (power adapter not included)
Protection: ESD protection up to 5 kV DC, surge protection up to 6 kV DC
Operating temperature: -40 to +75 °C
Dimensions: 135 × 135 × 60 mm
Weight: 949g

Administration functions:
Management: console via RJ-45, Telnet, Web (HTTP/HTTPS), SNMP v1/v2c/v3, SSH v2, TLS v1.2
Access control: ACL by IP/MAC/Ethertype/protocol/VLAN/DSCP/802.1p, up to 512 rules
TSN (Time-Sensitive Networking) protocols and synchronization:
IEEE 1588v2 PTP (Precision Time Protocol)
PTP Master, PTP Slave
IEEE1588 (Time Stamping)
802.1AS-Rev gPTP
802.1Qbv (Time-aware Scheduling)
802.1Qch (Cyclic Queuing and Forwarding)
802.1Qci (Per Stream Filtering and Policing)
802.1CB (frame replication and elimination for seamless redundancy)
IEEE 802.1Qbu Frame Preemption
IEEE 802.3br Interspersing Express Traffic (IET)
L3 routing: up to 8 VLAN interfaces, 32 static routes, IPv4/IPv6 static routing (SW routing)
ACL filter and bonding:
 IP ACL – filtering traffic by IP address
MAC ACL – filtering traffic by MAC address
QoS traffic prioritization: traffic classification, strict priority and WRR, 8 levels of switching priorities
VLAN support:
 IEEE 802.1Q (tagged VLAN)
IEEE 802.1ad Q-in-Q
Private VLAN Edge (PVE)
Port isolation
VLAN by MAC
VLAN by protocol
Voice VLAN
VLAN by IP subnet
Multicast VLAN Registration (MVR)
GVRP
Support up to 4K VLAN groups (from 4096 IDs)
Spanning Tree Protocol:
STP – IEEE 802.1d
RSTP – IEEE 802.1w
MSTP – IEEE 802.1s
BPDU Guard
BPDU filter
BPDU banner
Port mirroring: RX, TX, RX+TX, many-to-one
Link aggregation: IEEE 802.3ad LACP, up to 3 trunk groups, max. 6 ports per group
Multicast: IGMP v1/v2/v3 with querier function (up to 255 groups), MLD v1/v2 with querier function (up to 255 groups)
Authentication of connected devices: IEEE 802.1x, RADIUS, TACACS+
LLDP: yes (automatic device detection)
Cabling diagnostics: SFP-DDM




example of use





example of use





example of use





t="example of use" />





example of use





example of use





example of use





example of use





example of use





example of use



Product Details
PLANET Technology
NETPLA2594
8592457279907

Data sheet

Execution
On the wall
Color
Blue - silver
Warranty period for registration number (months)
60
Manufacturer
PLANET Technology
Warranty length (months)
60
Processed
Approved
Weight (g)
949
Dimensions
135 × 135 × 60 mm
Port speed
1Gbps + 2.5Gbps
Management
Yes
Industrial design
Yes
MODBUS support
Yes
Optical connector type
SFP
Conversion
LAN/SFP
Port speed - optical
2.5 Gbps
Port speed – metallic
1 Gbps
Connector type
SFP
AI translation
Translated
Zboží určeno pro
Commercial - pro profesionální použití
Grade
Write your review
Comments (0)
Grade

Price history

Our pricing is always guided by the principles of a fair price. We do not artificially move prices or brag about inflated percentages. You can always find price history for each product.

Lowest price in recent times 30 days was €705.10
