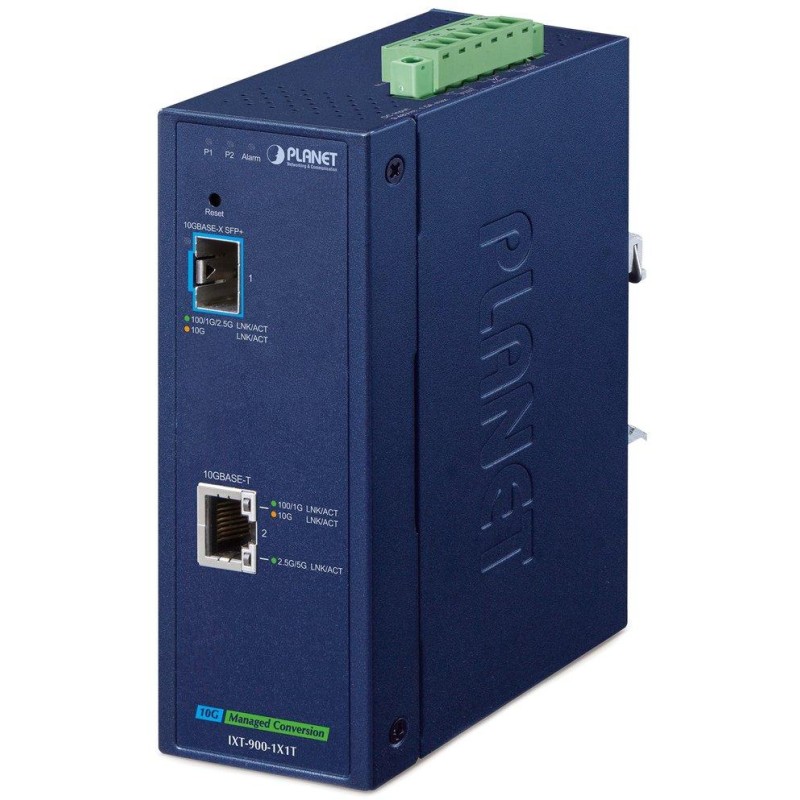

PLANET IXT-900-1X1T
Industrial 10G converter for easy transition between metallic and optical lines ( 10G/5G/2.5G/1G/100M Base-T to 10G/2.5G/1G/100M Base-X with SFP+ port).
Industrial design -40 to 75 °C, IP40 protection , ESD protection, wall or DIN rail installation, alarm output for power failure (relay; DC 24 V/ 1 A), dual power supply DC 9–48 V or AC 24 V.
The device is designed for industrial Ethernet in harsh operating conditions with a wide range of operating temperatures, unstable power supply and frequent shocks. The converter can be easily installed on a standard DIN rail or on a wall and allows the expansion of Ethernet technology in industrial environments or outdoor installations (e.g. ISP and FTTH applications). It supports remote management via web interface, command line interface (CLI) and SNMP protocol , which facilitates trouble-free monitoring and configuration from any location.
The device has one 10GBASE-T metallic port and one 10G SFP+ slot , which allows flexible connection using optical or metallic lines and ensures higher transmission capacity.
Possible monitoring of mobile applicationsCloudViewer Pro .
BASIC SPECIFICATIONS
Physical properties:
Ports: 1x RJ-45 10G/5G/2.5G/1G/100BASE-T, 1x SFP+ 10G/2.5G/1G/100BASE-X
Processing technology: Store-and-forward
Throughput: 40 Gbps bus, operational 29.76 Mpps (64B)
Table of entries: 16K MAC addresses, buffer 12 Mb
Transmission support: JumboFrame 9K
Design: DIN rail, wall-mounted
Power supply: DC 9–48 V or AC 24 V, power consumption max. 10.7 W
Protection: ESD up to 4 kV DC contact, up to 8 kV DC air
Operating temperature: –40 to 75°C
Dimensions: 135 × 86.4 × 50 mm
Weight: 578g
Administration functions:
Management: Telnet, Web, SNMP v1/v2c/v3, SSH v2, TLS v1.2
QoS traffic prioritization: traffic classification, strict priority and WRR, 8-level priority for switching (CoS/802.1p, DSCP, IP precedence)
VLAN support:
VLAN according to IEEE 802.1Q standard with tag
IEEE 802.1ad Q-in-Q tunneling
Up to 256 VLAN groups from 4096 VLAN IDs
LLDP: yes (automatic detection of the type of connected devices)
Port configuration: port disable/enable, flow control disable/enable, auto-negotiation 100Mbps, 1/2.5/5/10Gbps, full and half duplex mode selection
Bandwidth Control: Ingress/Egress: 16-10,000,000 Kbps
Ring: ERPS support in accordance with ITU-T G.8032, recovery time < 500 ms
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration 50g, long-term 4g (IEC-60068-2-27)
