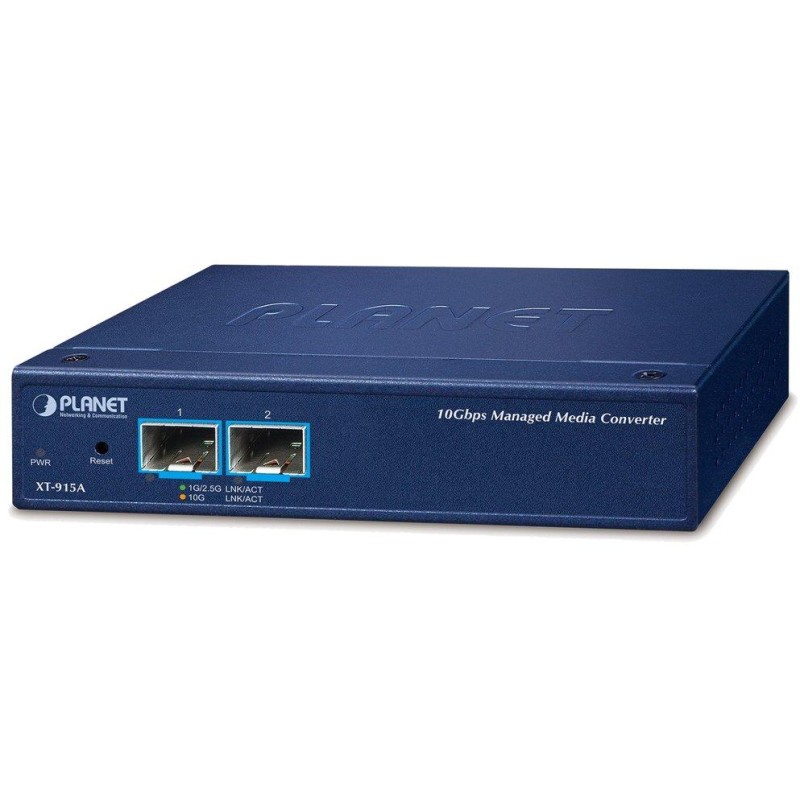

PLANET XT-915A
Industrial converter equipped with 2× 10G SFP+ slots . Suitable for use in networks where extremely high bandwidth is required, such as data centers, cloud storage, or operator infrastructure.
The XT-915A allows remote management via an intuitive web interface, command line interface (CLI), and SNMP , allowing for easy monitoring and configuration of the converter from anywhere.
Thanks to its reliability, high transmission speed is guaranteed without the risk of packet loss even at extreme speeds. ESD protection of 4 kV DC contact and 8 kV DC air is a matter of course. Another advantage is the low consumption of 9.84 W at full load.
Possible monitoring withCloudViewer mobile application.
BASIC SPECIFICATIONS
Physical properties:
Ports: 2× SFP+ 10G/2.5G/1G/100BASE-X
Processing technology: Store-and-forward
Transmission support: Jumbo Frame 12K
Throughput: 40 Gbps bus, operational 29.76 Mpps (64B)
Table of entries: 16K MAC addresses, buffer 12 Mb
Design: freestanding, optionally wall or DIN rail mounting (brackets not included)
Power supply: 12 V DC, 1.5 A, power consumption up to 9.84 W (power adapter included)
Protection: ESD 4 kV DC contact, 8 kV DC air
Operating temperature: 0 to 50 °C
Dimensions: 135 × 87.8 × 32 mm
Weight: 407g
Administration functions:
Management: Telnet, Web, SNMP v1/v2c/v3, SSH v2, TLS v1.2
QoS traffic prioritization: traffic classification, strict priority and WRR, 8-level priority for switching (CoS/802.1p, DSCP, IP precedence)
VLAN support:
VLAN according to IEEE 802.1Q standard with tag
IEEE 802.1ad Q-in-Q tunneling
Up to 256 VLAN groups from 4096 VLAN IDs
LLDP: yes (automatic detection of the type of connected devices)
Port configuration: port disable/enable, flow control disable/enable, port link capability control
Bandwidth Control: Ingress/Egress: 16-10,000,000 Kbps
Ring: ERPS support in accordance with ITU-T G.8032, recovery time < 500 ms
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration 50g, long-term 4g (IEC-60068-2-27)
/>
