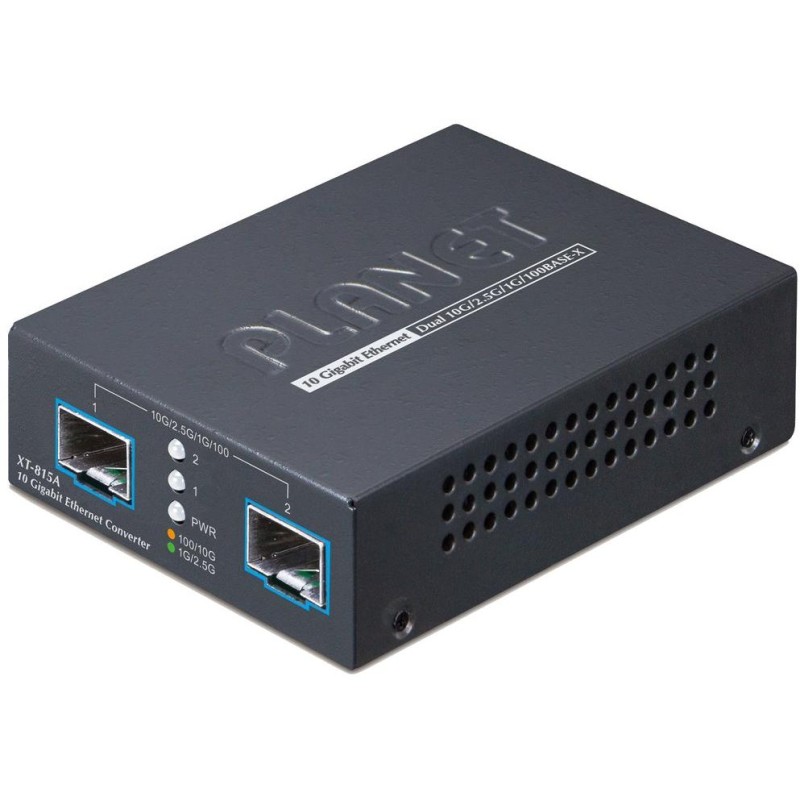

PLANET XT-815A
A 2-port 10G/2.5G/1GBASE-X and 100BASE-FX SFP+ converter designed for networks requiring high-speed transmission over fiber optic cabling. The XT-815A is suitable for enterprise, hospital, university and telecommunications backbone infrastructures, providing robust performance and versatility for a wide range of applications.
The XT-815A provides wide bandwidth and powerful computing capacity. Its two 10GBASE-X fiber SFP+ interfaces support multiple speeds , such as 10GBASE-SR/LR, 2500BASE-X, 1000BASE-SX/LX, and 100BASE-FX, so that the administrator can choose the appropriate SFP/SFP+ transceiver according to the distance or speed requirements. It also supports flexible conversion between multimode and single-mode fibers, extending transmission distances from 300 meters to 80 kilometers with 10GBASE-SR or 10GBASE-LR SFP+ modules.
The device provides high performance with 40 Gbps throughput and support for jumbo frames up to 12K , allowing for seamless processing of large data traffic. In addition, the 4K MAC address table and VLAN pass-through function enhance network management efficiency. The operating temperature is 0 to 50 °C .
BASIC SPECIFICATIONS
Physical properties:
Ports: 2× SFP+ 10G/2.5G/1GBASE-X, 100BASE-FX
Switching technology: Store-and-forward
Transmission support: Jumbo Frame 12K
Throughput: 40 Gbps bus
Table of records: 4K MAC addresses
Design: optional wall or DIN rail mounting (brackets not included)
Power supply: DC 5 V/ 2 A, external power adapter (included)
Operating temperature: 0 to 50 °C
Dimensions: 94 × 70.3 × 26.2 mm
Weight: 195g
L2 Function:
QoS traffic prioritization: 8-level priority switching (802.1p)
VLAN support: 802.1Q
Flow Control:
Half duplex: back pressure eliminates packet loss
Full duplex: IEEE 802.3x support for efficient flow control
