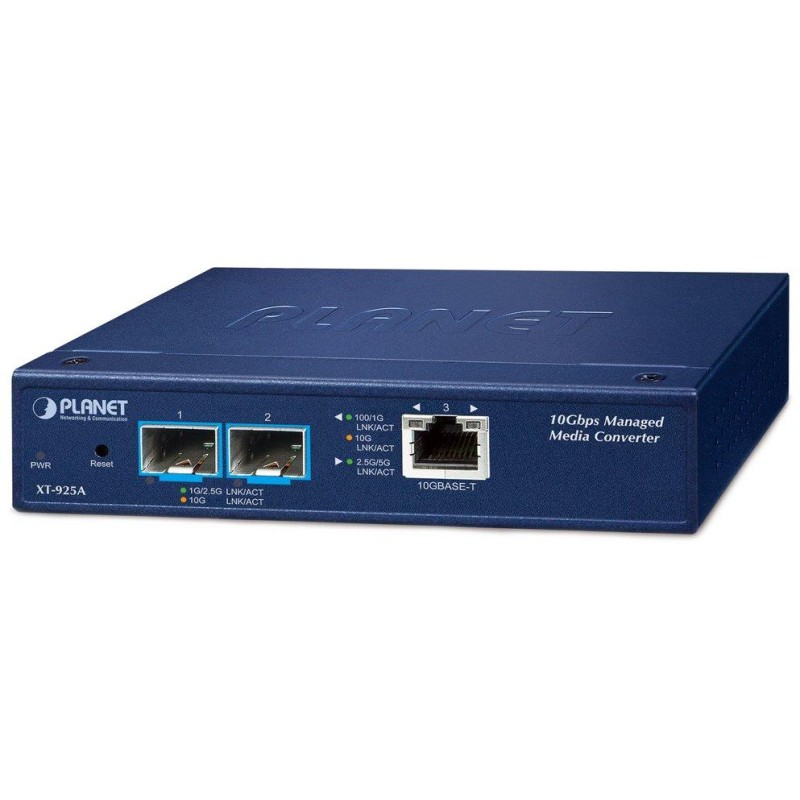

PLANET XT-925A
Industrial converter equipped with a metallic 10GbE RJ-45 connector and 2× 10G SFP+ slots . It is suitable for use in networks where extremely high bandwidth is required, such as data centers, cloud storage, or operator infrastructure.
The XT-925A allows remote management via an intuitive web interface, command line interface (CLI), and SNMP , allowing for easy monitoring and configuration of the converter from anywhere.
Thanks to its reliability, high transmission speed is guaranteed without the risk of packet loss even at extreme speeds. ESD protection of 4 kV DC contact and 8 kV DC air is a matter of course. Another advantage is the low consumption of 12.5 W at full load.
Possible monitoring withCloudViewer mobile application.
BASIC SPECIFICATIONS
Physical properties:
Ports: 1x RJ-45 100/1000/2.5G/5G/10GBASE-T, 2x SFP+ 10GBASE-X
Processing technology: Store-and-forward
Transmission support: Jumbo Frame 12K
Throughput: 60 Gbps bus, operational 44.64 Mpps (64B)
Table of entries: 16K MAC addresses
Design: freestanding, optionally wall or DIN rail mounting (brackets not included)
Power supply: 12 V DC, 1.5 A, power consumption up to 12.5 W (power adapter included)
Protection: ESD 4 kV DC contact, 8 kV DC air
Operating temperature: 0 to 50°C
Dimensions: 135 × 87.8 × 20 mm
Weight: 437g
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
The device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration 50g, long-term 4g, (IEC-60068-2-27)
Layer2 features:
Port configuration - port disable/enable, full and half duplex mode selection, flow control
VLAN - IEEE 802.1Q tag-based VLAN, IEEE 802.1ad Q-in-Q tunneling, up to 256 VLAN groups from 4096 VLAN IDs
Bandwidth Control - Ingress/Egress: 16-10,000,000 Kbps
QoS - Traffic classification, strict priority and WRR, 8-level priority for switching, CoS/802.1p, DSCP, IP precedence
Ring - ERPS support in accordance with ITU-T G.8032, recovery time < 500 ms
Management:
Telnet, web browser, SNMP v1, v2c
SSHv2, TLSv1.2, SNMPv3
LLDP protocol, SNTP, PLANET Smart Discovery Utility, PLANET NMS Controller, PLANET CloudViewer mobile app
Remote syslog, local syslog, SNMP trap
RFC 1213 MIB-II, RFC 2863 IF-MIB, RFC 1493 Bridge MIB, RFC 1643 Ethernet MIB, RFC 2863 Interface MIB, RFC 2665 Ether-Like MIB, RFC 2737 Entity MIB, RFC 2819 RMON MIB (Groups 1, 2, 3 and 9), RFC 3411 SNMP-Frameworks-MIB, MAU-MIB
Standards:
IEEE 802.3u, 100BASE-TX/FX
IEEE 802.3ab, 1000BASE-T
IEEE 802.3bz, 2.5G/5GBASE-T
IEEE 802.3an, 10GBASE-T
IEEE 802.3z, 1000BASE-SX/LX
IEEE 802.3ae 10GBASE-SR/LR
IEEE 802.3x full-duplex flow control
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging />
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 2474 DSCP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
ITU-T G.8032 ERPS Ring
