Planet GT-915A converter 10/100/1000 Base-T / miniGBIC SFP, Web mng., OAM, SNMP, LFP/LLCF

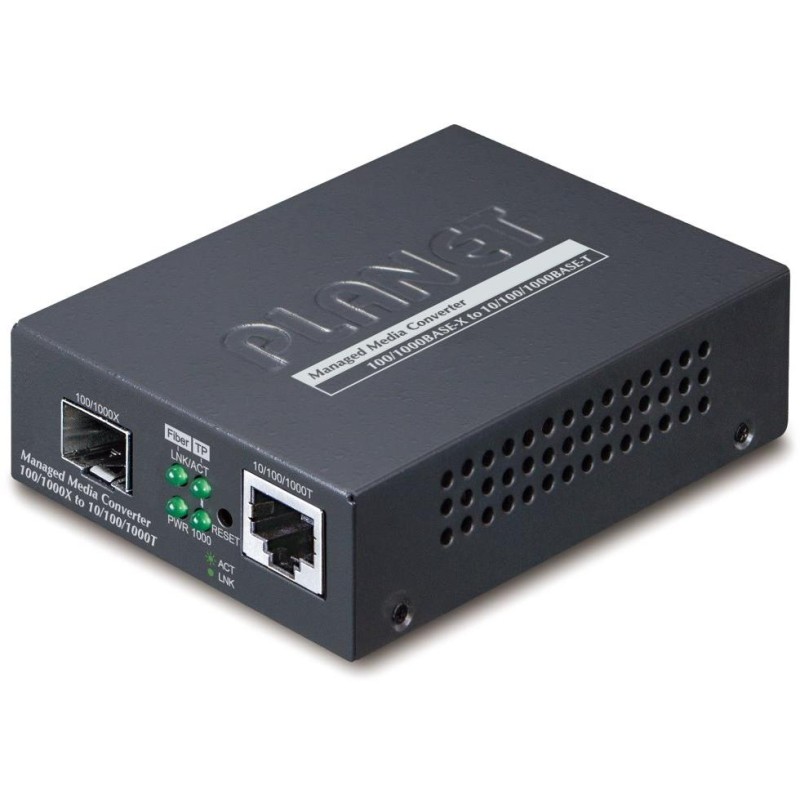

PLANET GT-915A

Ethernet RJ-45 10/100/1000 Base-T to miniGBIC (SFP 100/1000 Base-X) optical converter. Converts metallic Ethernet to optical Gigabit Ethernet via an embedded miniGBIC (SFP) converter module.

Converter for transition between optical and metallic connection for Gigabit Ethernet. Requires purchase of compatible miniGBIC optical module.

The GT-915A features auto MDI/MDI-X on the TP port and integrated Link Fault Pass-through (LFP). The LFP function includes Link Loss Carry Forward (LLCF) and Link Loss Return (LLR), which can immediately alert administrators to link media problems and provide an effective solution for network monitoring.

•

• Plug & Play design + management (Web - HTTP, Telnet, SNMP, SSH/TLS/SNMP v3), NTP, VLAN support, QoS, etc.

• Easy to install and use, compact design, simple solution to technology transition problems

• OAM compliant - TS-1000 OAM, IEEE 802.3ah OAM, Loop Back test

• Integrated Link Fault Pass-through (LFP) + Link Loss Carry Forward (LLCF)

• Wall, DIN rail or chassis mounting MC-700/1500/1500R/1500R48


Possible monitoring withCloudViewer mobile application.

Supports UNI-NMS universal network management system for remote administration/management.

BASIC SPECIFICATIONS

Physical properties:

Ports: 1x RJ-45 10/100/1000 Base-T, 1x SFP 100/1000 Base-X (SX/LX)

Transmission support: JumboFrame 16K

Design: internal

Power supply: external power adapter DC 5 V (2 A), total power consumption up to 3.4 W

Protection: ESD protection up to 6 kV DC

Operating temperature: 0 to +50 °C

Dimensions: 94 x 70 x 26 mm

Weight: 201g

Can be installed in chassis: MC-700, MC-1500, MC-1500R, MC-1500R48
