Planet GT-805A-PD converter 10/100/1000Base-T / miniGBIC SFP / powered by PoE 802.3af/at/bt

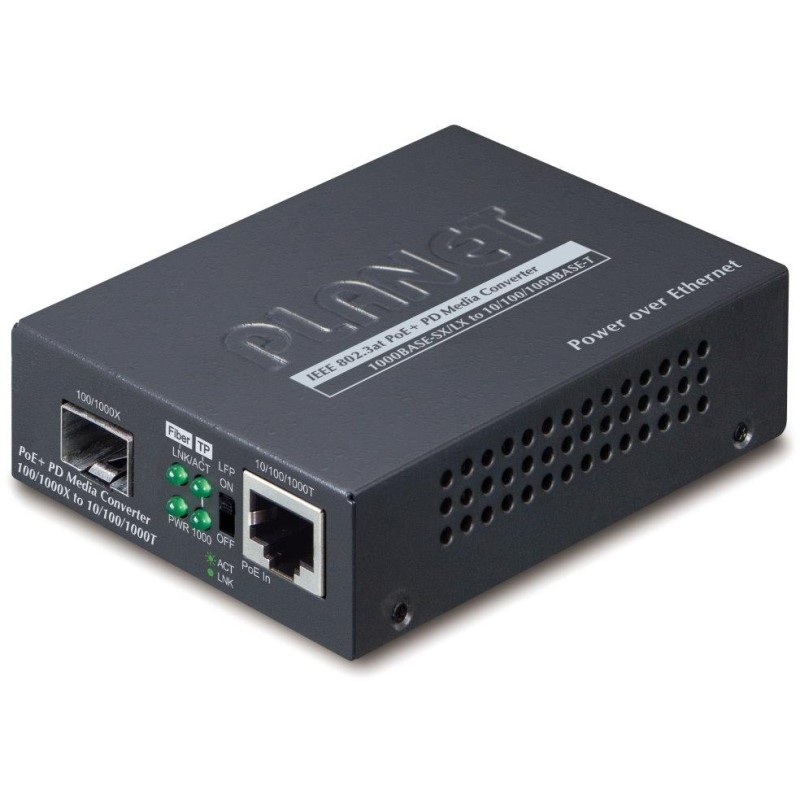

PLANET GT-805A-PD

PoE+/PoE++ Ethernet converter RJ-45 10/100/1000 Base-T to miniGBIC optical (SFP 100/1000 Base-X) . Converts metallic Ethernet to optical Gigabit Ethernet via the embedded miniGBIC (SFP) converter module.

Converter for transition between optical and metallic connection for Gigabit Ethernet. Requires purchase of compatible miniGBIC optical module.

•

• Powered by PoE 802.3af/at/bt

• IEEE 802.3af/at/bt 48 to 54 V DC in-line power and optional 5 V DC input

• Easy to install and use, compact design, simple troubleshooting

• DIP switch for setting LFP (Link Fault Passthrough) function - includes Link Loss Carry Forward (LLCF) and Link Loss Return (LLR) functions

• Wall, DIN rail (RKE-DIN) or MC-700/1500/1500R/1500R48 chassis mounting


BASIC SPECIFICATIONS

Physical properties:

Ports: 1x RJ-45 10/100/1000 Base-T, 1x SFP 100/1000 Base-X (FX/SX/LX)

Transmission support: JumboFrame 9 KB

Design: internal

Power supply: optional DC 5 V (2 A) or PoE (802.3af/at/bt), total power consumption up to 3.2 W

Protection: no

Operating temperature: 0 to +50 °C

Dimensions: 94 x 70 x 26 mm

Weight: 186g

Can be installed in chassis: MC-700, MC-1500, MC-1500R, MC-1500R48
