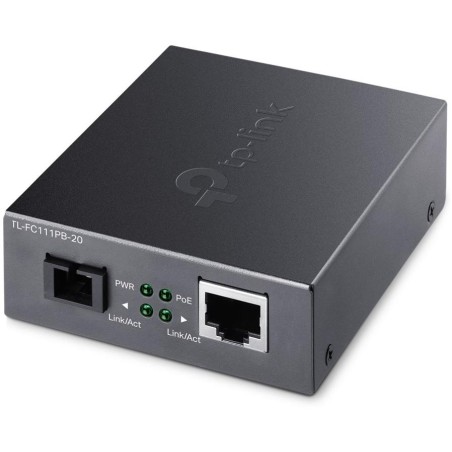

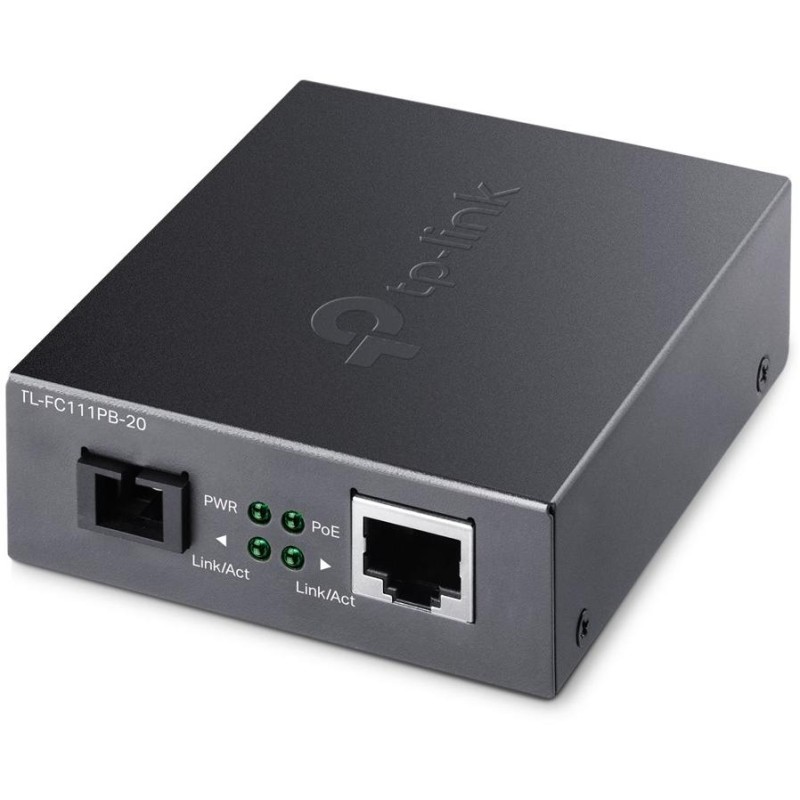

TP-Link TL-FC111PB-20
Ethernet/optical media converter using WDM (Wavelength Division Multiplexing) technology, equipped with one 10/100 Mbps RJ-45 port (PoE 802.3af output) and single-mode with SC connector .
With an optical transmission distance of up to 20 km and 802.3af PoE output, this media converter was designed for flexible installation of surveillance systems over fiber optic cables. It provides a cost-effective option when you need to extend the distance of an existing network.
- It converts data between optical (optical signal) and Ethernet (electrical signal) interfaces.
- Extends the range of optical lines up to 20 km.
- 802.3af PoE output makes installation easy and powers connected devices (15.4W).
- WDM (Wave Division Multiplexing) technology allows data to be transmitted and received over one fiber optic cable instead of two.
- Wide operating temperature range (0 to +50 °C) for reliable operation.
- Supports Half-Duplex and Full-Duplex transmission.
The TL-FC111PB-20 uses Wavelength Division Multiplexing (WDM) technology to help send and receive data over distances of up to 20 km using single-mode fiber optic cable. The device sends data at a wavelength of 1310 nm and receives data at a wavelength of 1550 nm of fiber optic cable. Therefore, the end device used in conjunction with the TL-FC111PB-20 should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm. Another media converter from the TP-Link range, the TL-FC111A-20, is an example of a unit that works with the TL-FC111PB-20 module. In addition, this media converter can be used as a standalone device (without a rack) or together with the TP-Link TL-FC1420 rack.
BASIC SPECIFICATIONS
Ports: 1x 10/100 Mbps RJ-45, 1x 100 Mbps SC
Optical line type: 9/125 µm single-mode
Metallic cable type: UTP/STP Cat5 or better
Range: up to 20 km
Standards Compliance: IEEE 802.3, IEEE 802.3i, IEEE 802.3u
Power supply: external adapter 48 V / 0.5 A
Dimensions: 94.5 x 73 x 27 mm
