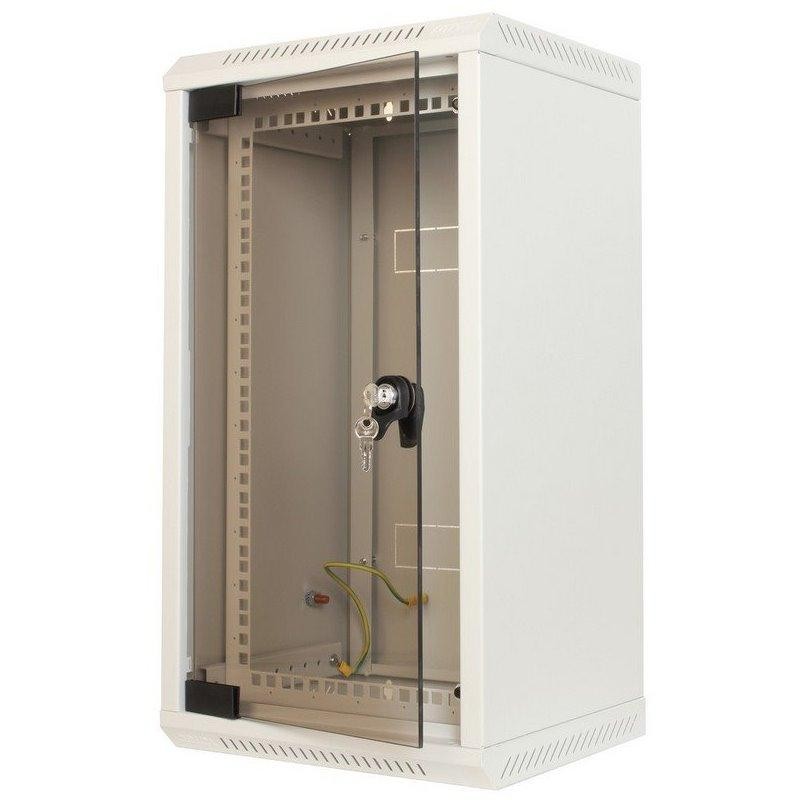

Triton 10" - 10U or 19" - 5U, single-piece rack, 260mm all-glass door

Triton RKA 10"/19" 260 mm

The welded distribution cabinet with IP20 protection and load capacity offers the possibility of using 10" or 19" components. When expanding the network, there is no need to change the infrastructure, you only need to connect the existing cabling to new devices and patch panels. This makes it an ideal distribution cabinet for small and medium-sized installations.

•

• High structural strength - The cabinet has a robust welded construction. High quality workmanship and the latest technology ensure a great appearance of the cabinet.

• Doors - These cabinets are supplied as standard with all-glass doors with a lock. On request, it is possible to supply all-metal or perforated doors.

• Glass - All-glass doors are made of tempered safety glass 4 mm thick, which is resistant to common impacts. When broken, it forms a number of small fragments like car glass. The doors are tested in a certified testing laboratory and comply with the requirements of the ČSN EN 12150-1+A standard.

• Flexible door opening - The custom hinge system allows the door to open at an angle of 130°. The door can be easily dismantled.

• Lock - Allows easy and quick access to the switchboard.

• Adjustable mounting frame - The 10"/19" mounting frame can be adjusted in depth inside the cabinet in predefined positions. This facilitates the installation of equipment and the organization of connecting cables.

• Knock-out blanking plugs - Cable entries are provided in the top, bottom and rear of the cabinet, covered with knock-out blanking plugs. To prevent dust from entering, the cables can be sealed in the opening with a brush. A edging is used to protect the cables from damage (they are not included in the cabinet package, both are optional accessories).


Features

•

• 10”/19” wall-mounted distribution cabinet with IP20 protection.

• The switchboard is hung directly on the wall.

• The switchboard includes an adjustable mounting frame.

• Cabinet construction: compact welded cabinet / all-glass door with 4 mm tempered safety glass, all-metal or perforated on request.

• The maximum permissible load for each door is 10 kg.

• The minimum thickness of the surface treatment is 65 µm.

• Distribution cabinets are designed for the installation of data and telecommunications equipment and its distribution systems.

• The cabinet frame and all detachable parts (side and rear covers, doors, etc.) are connected using connecting cables, which must be firmly attached and inserted into the connectors throughout the entire period of use of the cabinet.

• The main M5 grounding screw is located on the side of the switchboard.

• Cable entries covered by knock-out blanks are located in the upper and lower parts of the rear wall of the cabinet, others are on the upper and lower walls of the cabinet.


BASIC SPECIFICATIONS

Height: 10U(10") / 5U(19") - 570 mm

Depth: 260 mm

Width: 310 mm

Max. recommended load: 20 kg

Weight: 9 kg

Accessories:

2× key - front door

4× screw 6x50

4× washer 6.6

4× dowel 10

8× M6 floating nuts
