Triton 19" container rack 12U, 1000hl, black color, perforated metal door

Triton RCA 19" 12U 1000 mm

Special welded container cabinet designed for placement under an office desk. Installed on wheels included in the package. Glass doors with 4 mm tempered safety glass.

•

• Casters - This type of cabinet is installed on casters (included). Two of them are equipped with brakes.

• Adjustable vertical rails - Two pairs of continuously adjustable vertical 19" rails are supplemented by a central pair in the 900 and 1000 mm deep versions.

• Knock-out blanking plugs - Cable entries covered by knock-out blanking plugs are provided in the top, bottom and rear of the cabinet.

• High structural strength - The cabinet has a robust welded construction. High quality workmanship and the latest technology ensure a great appearance of the cabinet.

• Flexible door opening - The custom hinge system allows the door to open at an angle of almost 165°. The door can be easily dismantled.

• Glass - All-glass doors are made of tempered safety glass 4 mm thick, which is resistant to common impacts. When broken, it forms a number of small fragments like car glass. The doors are tested in a certified testing laboratory and comply with the requirements of the ČSN EN 12150-1+A standard.

• Door lock - Allows easy and quick access to the switchboard.

• Doors - The cabinet doors are all-glass as standard, but upon request they can also be all-metal or perforated.

• Mounting an additional ventilation unit - On the rear wall there is preparation for mounting an additional ventilation unit for wall-mounted cabinets supporting cooling of installed devices (e.g. RAx-CH-X2x-X1).


Features

•

• 19" container cabinet with IP20 protection.

• The cabinet is designed to be placed on wheels under a workbench.

• The cabinet includes two pairs of vertical rails (three pairs for cabinets deeper than 800 mm).

• Cabinet construction: Compact welded cabinet / All-glass door with 4mm tempered safety glass. All-metal or perforated on request.

• The maximum permissible load for each door is 10 kg.

• The minimum thickness of the surface treatment is 65 μm.

• Distribution cabinets are designed for the installation of data and telecommunications equipment and its distribution systems.

• The cabinet frame and all detachable parts are connected using connecting cables, which must be firmly attached and inserted into the connectors throughout the entire period of use of the cabinet.

• There is an M8 screw on the bottom of the switchboard for connecting the connectors.

• Cable entries covered with knock-out blanks are located in the upper and lower parts of the rear wall of the cabinet, others are at the bottom of the cabinet.

• On the rear wall of the cabinet there are knock-out blanking plugs and holes prepared for mounting the ventilation unit.

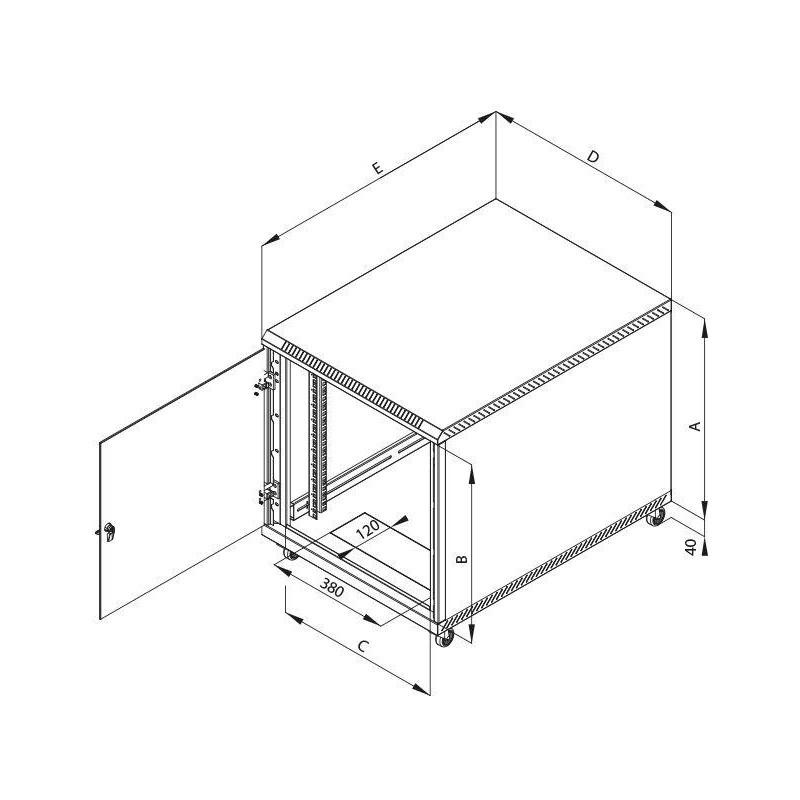

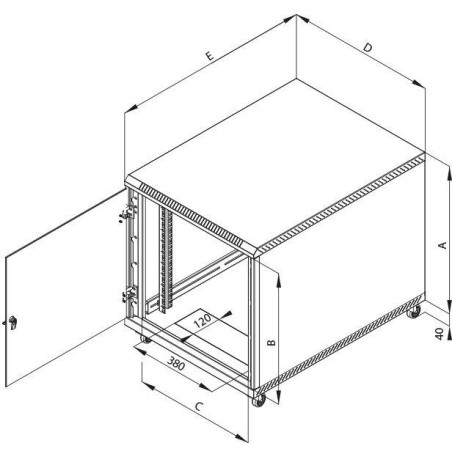

BASIC SPECIFICATIONS

Height: 12U (620mm)

Depth: 1000mm

Width: 600 mm

Max. recommended load: 200 kg

Weight: 45.9 kg

Accessories:

2× key - front door

2× castors without brakes

2× castors with brakes
