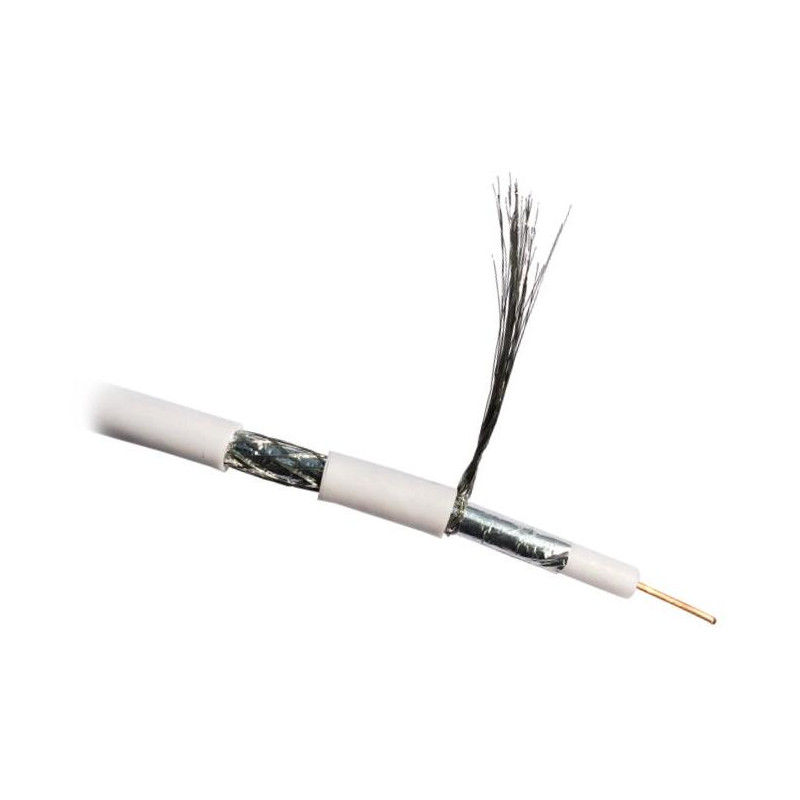

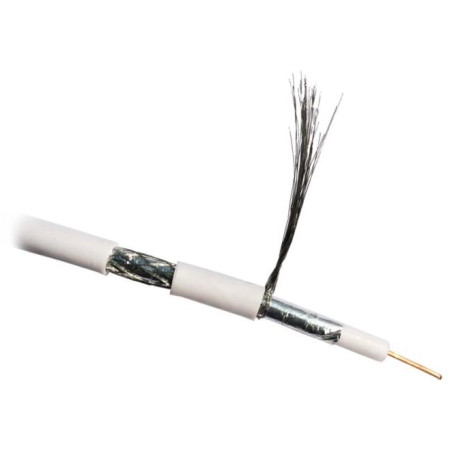

DATACOM Coaxial cable RG-59 (6.3mm/0.9mm) 75 Ohm 250m white

DATACOM coaxial cable RG-59 250 m

Installation coaxial cable RG-59 designed for TV and SAT distribution (alternative to CB 50 F).

Design:

•

• Impedance: 75 Ω

• Parasitic capacitance: 56.8 pF/m

• Signal propagation speed: 83%

• Inner conductor: AWG20, copper, diameter 0.81 mm

• Insulation: foamed polyethylene, diameter 3.71 mm

• External shielding: aluminum foil and braid

• Braid type: aluminum (0.1 mm), 48 strands

• Outer sheath: PVC, diameter 6.3 mm, white


Attenuation

50 MHz: 5.90 dB/100 m

100 MHz: 8.50 dB/100 m

200 MHz: 12.50 dB/100 m

300 MHz: 14.60 dB/100 m

400MHz: 17.00dB/100m

500MHz: 21.00dB/100m

900MHz: 27.60dB/100m

1000 MHz: 28.90 dB/100 m

BASIC SPECIFICATIONS

Cable type: coaxial

Shielding: aluminum foil + aluminum braid

Material (inner conductor): copper

Material (insulation): foamed polyethylene

Sheath type: PVC

Color: white

Length: 250 m

Dimensions: 390 x 390 x 100 mm

Weight: 8.275 kg
