Victron solar panel 45Wp/12V, Poly

Victron BlueSolar 45 Wp

BlueSolar 45 Wp (12 V) polycrystalline solar panel series 4a with a maximum (peak) power of 45 Wp . It is designed for systems with an operating voltage of 12 V.

•

• Low voltage temperature coefficient increases operating efficiency at high temperatures.

• Exceptional low-light performance and high light sensitivity across the entire solar spectrum.

• 25-year limited warranty on output power and operating parameters (10 years 90% + 25 years 80% output power).

• The enclosed waterproof multi-function junction box provides a high level of safety.

• Powerful bypass diodes limit power drop when shaded.

• The robust anodized aluminum frame makes it easy to install the panels on the roof in a variety of mounting systems.

• High-quality tempered glass with high transmittance ensures increased rigidity and impact resistance.

• The advanced EVA (ethylene vinyl acetate) encapsulation system with a three-layer protective film meets the strictest safety requirements for high-voltage operation.


A high-quality solar panel with a 25-year manufacturer's performance guarantee . More information can be found below in the related documents.

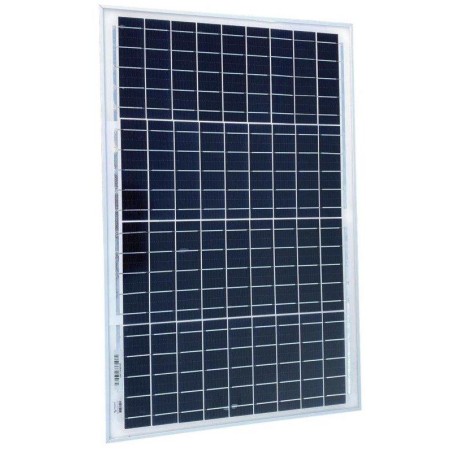

This panel has 36 cells and a solid aluminum frame. It is equipped with special mechanically resistant tempered glass with high light transmission ability.

The waterproof output has integrated bypass diodes for reverse current protection and is highly resistant to extreme weather conditions such as high and low temperatures, frost, heavy rain or wind.

The panel also includes a connection box with outputs for MC4 cables .

We usually have panels in stock in Prague with fast delivery within the Czech Republic and Slovakia within two days.

BASIC SPECIFICATIONS

Panel type: polycrystalline

Number of articles: 36

Max. power (P _max ): 45 W

Max. power voltage (V _mp ): 19.1 V

Max. power current (I _mp ): 2.36 A

Dimensions: 668 x 425 x 25 mm

Color: blue (silver frame)
