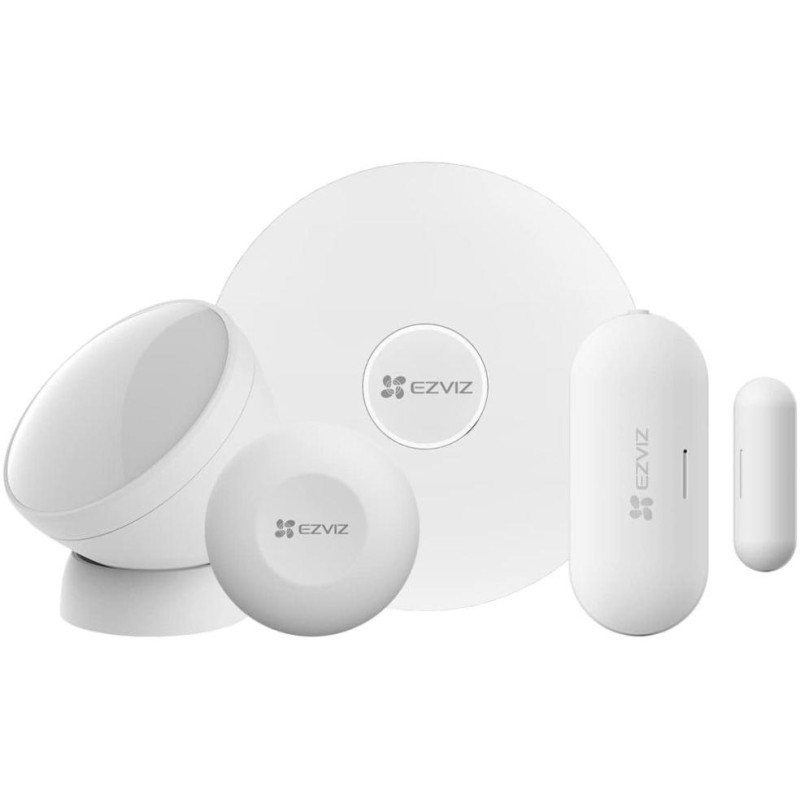

EZVIZ Home Sensor Kit 2.0
A kit of security elements. This is a sophisticated solution for a safer home.
A3-R200 Home Gateway
Smart gateway for connecting up to 64 Zigbee sensors . It functions as a central node for connecting security system elements. Each connected product appears in the EZVIZ application and can be used for automation as if it were directly connected to the Wi-Fi network. Internet connection can be easily implemented both wired via RJ-45 connector and wirelessly via Wi-Fi .
PIR sensor
Wireless PIR motion detector with a range of up to 7 m and a viewing angle of 90° horizontally and vertically. It uses passive infrared (PIR) technology to detect human movement and can send alerts directly to your smartphone using the EZVIZ app. The T1C sensor connects to your home gateway.
Open/close sensor
The sensor is based on the Zigbee 3.0 protocol, which allows it to operate for up to several years on a single set of 2 batteries.
Doors, windows, pet gates – forget about having to check if they are open or closed. Install the T2C Open/Close Sensor wherever you need it and monitor your home in real time. If someone breaks in, you will hear a loud alarm and receive a mobile notification directly to your smartphone. Enjoy the peace of mind that comes with a protected home.
Smart button - control with just a click
You can use the smart button in two ways - to turn the entire sensor system on or off, or to send an emergency alarm by pressing it. Suitable for seniors and children who are home alone, so they can call for help if they need it. The button can be carried in your pocket or, for example, stuck to a wall or other necessary place.
Zigbee is an alternative protocol to Wi-Fi, the main advantage of which is its low power consumption . This allows small wireless sensors to operate for up to several years on a single battery.
BASIC SPECIFICATIONS
A3 Home Gateway (CS-A3-R200)
App available for: Android, iOS
Interface: Zigbee 3.0, Wi-Fi (2.4 GHz), RJ-45, Bluetooth 5.3
Power supply: DC 5 V external USB-C adapter (included), power consumption up to 3 W
Dimensions: 80 × 80 × 33 mm
Weight: 90g
Color: white
PIR sensor (CS-T1C-A0-BG)
Security coverage: up to 7 m
Detection angle: 90° horizontal, 90° vertical
Interface: Zigbee 3.0
Range: up to 250 m (in open space)
Power supply: 1× CR2450 battery
Battery life: up to 1 year (up to 2 years - power saving mode)
Dimensions: 43.5 × 43.5 × 32 mm
Dimensions (base/holder): 29 × 29 × 9.5 mm
Weight: 92g
Color: white
Door sensor (CS-T2C-A0-BG)
Interface: Zigbee 3.0
Range: up to 250 m (in open space)
Power supply: 2× CR1632 batteries
Battery life: up to 1 year (based on usage - 30 detections per day)
Dimensions (sensor): 53.5 × 22.5 × 13.5 mm
Dimensions (magnet): 32 × 13.5 × 10.5 mm
Weight: 21g
Color: white
Smart button (CS-T3C-A0-BG)
Interface: Zigbee 3.0
Range: up to 250 m (in open space)
Power supply: CR2032 battery
Battery life: up to 1 year (based on usage - 15 clicks per day)
Dimensions 40.6 × 40.6 × 12.3 mm
Weight: 13g
Color: white
