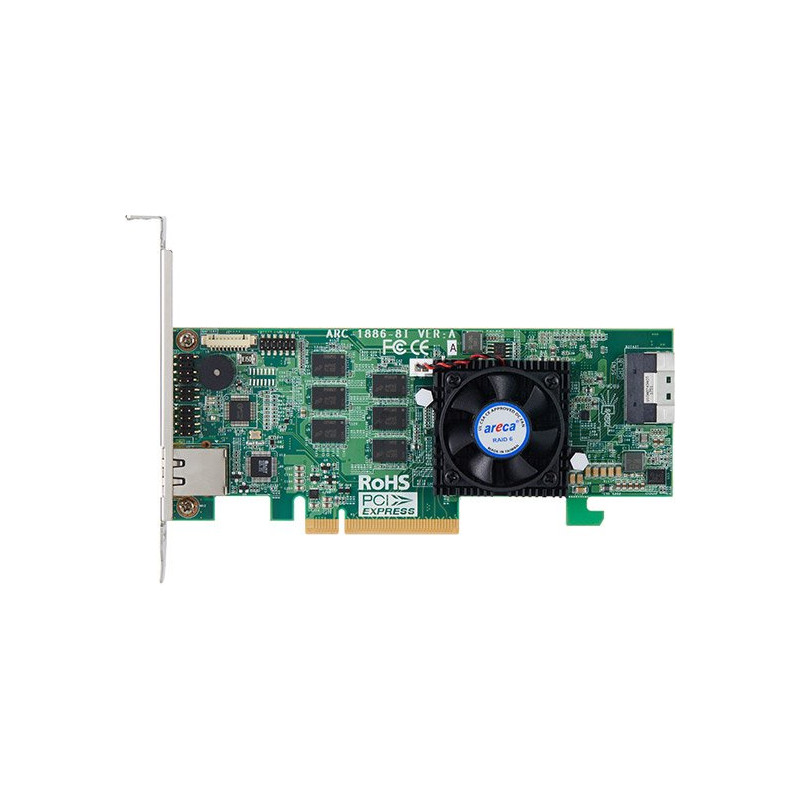

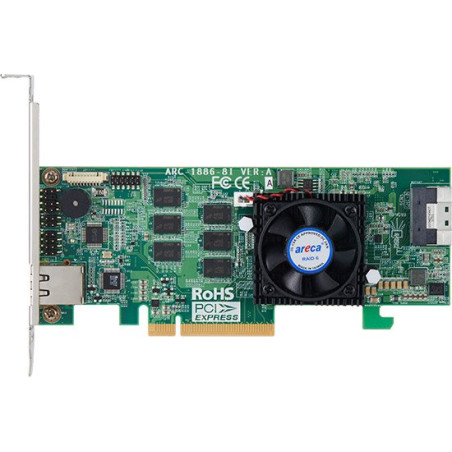

ARECA Tri-mode RAID card 8-port int. (SFF-8654) 8GB DDR4, PCIe4.0 x8 Card, LP
  • ARECA Tri-mode RAID card 8-port int. (SFF-8654) 8GB DDR4, PCIe4.0 x8 Card, LP

ARECA Tri-mode RAID card 8-port int. (SFF-8654) 8GB DDR4, PCIe4.0 x8 Card, LP

ARC-1886-8I
Areca
Grade
Write your review
€1,195.99
Tax included
€988.42 Tax excluded
i
The amount of VAT applied is 21% for the country Czechia.
To order
Quantity
Out of stock

Ask about the product on WhatsApp


Business terms and conditions



Delivery policy



Return policy

help_outlineProduct inquiry by email
Description



Product Highlights






? Support up to 8GB DDR4-2666 cache



? SFF-9402 compliant connector pin-out



? Support read/write cache allocation by policy



? Support up to 24 NVMe drives using PCIe switch



? Redundant flash image for adapter availability



? UBM, SES2, SMP and SGPIO enclosure management





? Support up to (512) 12Gb/s SAS, SATA or SSD drives using SAS expanders



? Support optional cache backup module (CBM) protection using SuperCap



? Tri-mode interface at each drive ports-12Gb/s SAS/SATA/ Gen 4.0 PCIe (NVMe)



? Controller level hardware encryption and self-encryption drive management



? Support RAID 1 - Multi Mirroring and Mirrored Pass-Through Disk



? Multiple RAID 0 and RAID 10 (1E) support (RAID 00 and RAID100)



? Broad operating support including Windows, Linux, FreeBSD, macOS and VMware












8/16 Ports PCIe Gen 4.0 Tri-Mode RAID Adapters






The new fourth generation ARC-1886 family offers advanced technology for increased performance and improved enterprise data protection. They were designed with 1.6 GHz dual core ROC processor, DDR4-2666 memory and PCIe 4.0 interface for the most performance-hungry database and IT applications. Based on the ARM A15 PCIe 4.0 x8 to SAS/SATA/PCIe RAID on Chip (ROC) controller, the ARC-1886 series RAID adapters can offer both PCIe Gen 4.0 host and 12Gb/s SAS/SATA/PCIe (NVMe) tri-mode storage interfaces.









  ARC-1886 Series 8-Ports PCIe Gen 4.0 Tri-Mode RAID Adapters
ARC-1886-8i ARC-1886-8x
Physical Dimensions Low Profile: 167.65(L) x 64.4(H) mm
Ports 8 x internal 8 x external
Drive Connectors 1 x SFF-8654 [x8] 2 x SFF-8644 [x4]
Host Bus Interface 8-Lane PCI Express® 4.0
I/O Processor Tri-Mode Dual Core ARM A15 1.6GHz ROC
Cache Memory 8GB on-board DDR4-2666 SDRAM with ECC Protection
Data Transfer Rate Up to 12Gb/s SAS/SATA/Gen 4.0 PCIe (NVMe) per port
Drive Support

  • Up to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSDs, using 12Gb/s SAS expander
  • Up to 24 NVMe drives through the PCIe switches
Power Consumption Approximately 12 Watts
Operating Temperature 0 °C to 60 °C
Operating Humidity 10% to 85%, non-condensing
Cache Protection ARC-1886-CBM




  ARC-1886 Series 16-Ports PCIe Gen 4.0 Tri-Mode RAID Adapters
ARC-1886-8x8i ARC-1886-16i ARC-1886-4N8I
Host Bus Interface 8-Lane PCI Express® 4.0
Physical Dimensions LP-MD2: 167.65(L) x 64.41(H) mm 205(L) x 107.2(H) mm
Ports 8 x internal & 8 x external 16 x internal
Drive Connectors 1 x SFF-8654 [x8]

2 x SFF-8644 [x4]		 2 x SFF-8654 [x8] 1 x SFF-8654 [x8]

4 x M.2 Connectors
RAID-on-Chip Controller Tri-mode Dual Core ARM A15 1.6GHz ROC
Cache Memory 8GB on-board DDR4-2666 SDRAM with ECC Protection
Data Transfer Rate Up to 12Gb/s SAS/SATA/Gen 4.0 PCIe (NVMe) per port
Drive Support

  • Up to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSDs, using 12Gb/s SAS expander
  • Up to 24 NVMe drives through the PCIe switches
Power Consumption Approximately 14 Watts
Operating Temperature 0 °C to 60 °C
Operating Humidity 10% to 85%, non-condensing
Cache Protection ARC-1886-CBM





RAID Features







  • RAID Levels - 0, 1, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD
  • Multiple RAID 0 and RAID 10(1E) support (RAID 00 and RAID100)
  • Support RAID 1 - Multi Mirroring and Mirrored Pass-Through Disk
  • Multiple RAID selection
  • Configurable stripe size up to 1MB
  • Write-through or write-back cache support
  • Support read/write cache allocation by policy
  • Support HDD firmware update
  • Online array roaming
  • Online RAID level/stripe size migration
  • Online capacity expansion and RAID level migration simultaneously
  • Instant availability and background initialization
  • Support global and dedicated hot spare
  • Automatic drive insertion/removal detection and rebuilding
  • Support for native 4K and 512 byte sector SAS and SATA devices
  • Support UNMAP command
  • S.M.A.R.T. support
  • Multiple pairs SSD/HDD disk clone function
  • SSD automatic monitor clone (AMC)
  • Controller based hardware encryption function
  • SED (self-encryption drives) function support
  • Support backplanes based on the SFF-TA-1005 specification (UBM)
  • Redundant flash image for adapter availability
  • Support intelligent power management to save energy and extend service life
  • Support NTP protocol synchronize RAID adapter clock over the onboard Ethernet port






Operating Systems







  • Microsoft Windows
  • Red Hat Linux, Centos Linux, SUSE Linux, Fedora, Debian Linux, Ubuntu Linux
  • FreeBSD
  • XenServer
  • unRAID
  • macOS
  • VMware ESXi






Management Monitor







 McRAID Storage Manager




  • Web-based GUI management utility
  • Remote configuration, monitoring, and notification
  • Graphical-based management utility


  •


 McRAID Utility




  • Command-line interface
  • CIM provider for VMware
  • API code support




 McBIOS Configuration Utility




  • Legacy configuration utility
  • Flashable BIOS support


  •


 Monitors/Notification




  • Global HDD activity/fault connector, individual fault connector
  • LCD/I²C connector and alarm buzzer
  • SNMP
  • SMTP






Product Details
Areca
ARC-1886-8I
4712774412106
