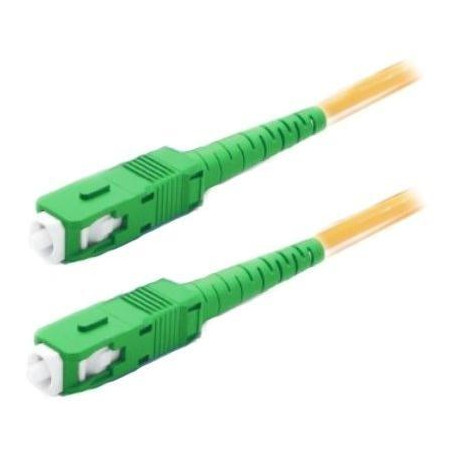

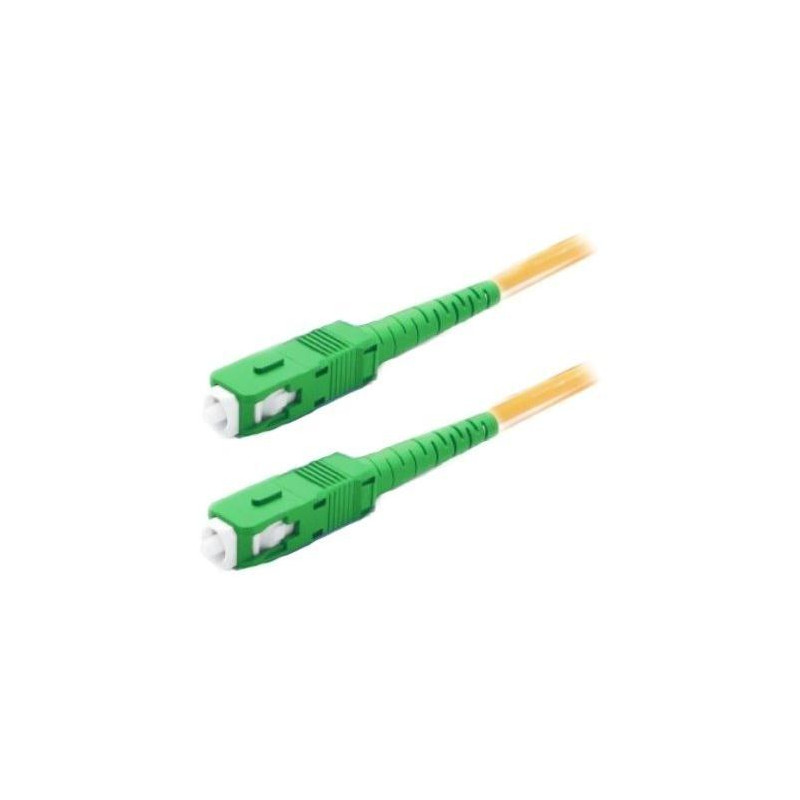

XtendLan FO patch SC/APC-SC/APC 2m 9/125, simplex, ultraflexible G.657.A1, LS0H, diameter 2mm, short outlet

XtendLan FOP-SCASCA-S-2-9-A1

Optical connection cable used for connection to a regular optical cable and for connecting individual optical modules. The ultra-flexible optical cable used allows a very small bending radius without signal attenuation. The connector has a shortened outlet cover, which saves about 2 cm of depth in a distribution board or other confined space.

BASIC SPECIFICATIONS

Fiber type: 9/125 µm, singlemode G.657.A1, fully compatible with OS1 (G.652 all types), flexible, no light attenuation occurs up to a bending radius of 15 mm and less than 1 dB at a bending radius of 7.5 mm (at 1550 nm)

Cable type: 2 round cables side by side (so-called zipper), width 4 mm, surface insulation type LS0H

Number of fibers in the cable (all connected): 1

Connector type on side A: SC, angled ground (/APC), insertion loss (I/L) typically 0.15 dB, max. 0.3 dB, return loss (R/L) better than 60 dB

Connector type on side B: SC, angled ground (/APC), insertion loss (I/L) typically 0.15 dB, max. 0.3 dB, return loss (R/L) better than 60 dB

Cable length: 2 m
