Solarix Blow-in cable MINI 04vl 9/125 HDPE Fca black SXKO-MINI-4-OS-HDPE

Solarix MINI 4 fibers 9/125

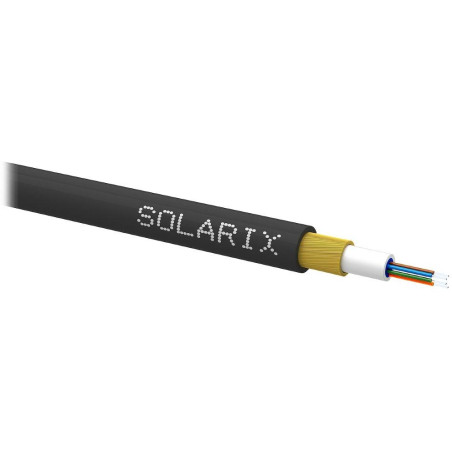

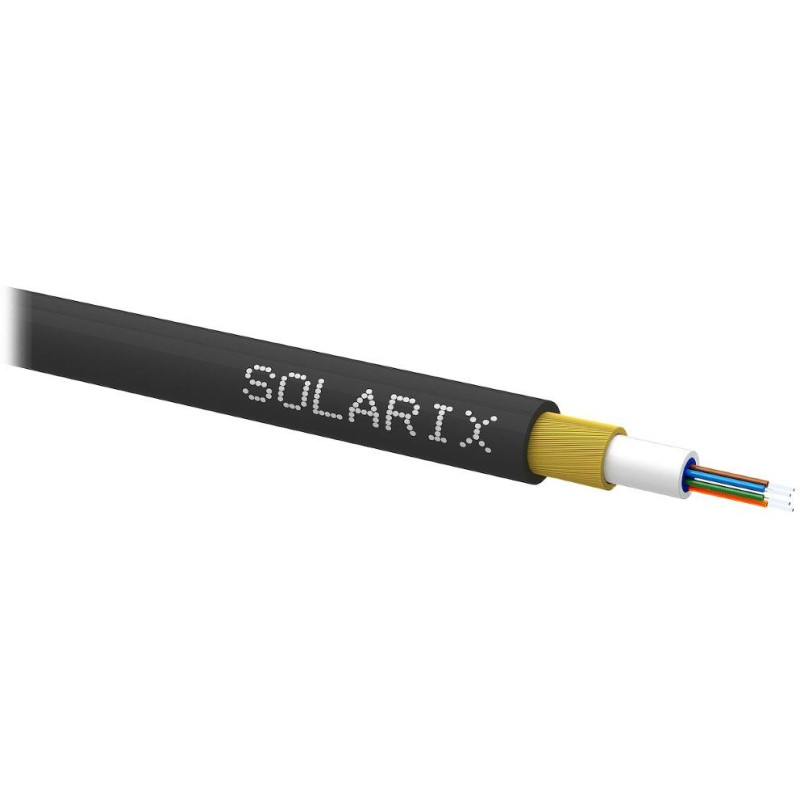

The blow-in optical cable with fire reaction class F _ca is ideal for blowing into 3.5 mm microducts, thanks to its dimensions and highly viscous HDPE jacket , which allows the cable to slide easily along the inner circumference of the tube. The fibers themselves are placed in a central tube filled with gel, which protects them from water ingress. The cable contains aramid yarn to increase mechanical resistance. The optical cable does not contain any metal elements and is fully dielectric. The fiber itself is of the G.657A1 type with increased resistance to bending , and therefore allows easier installation in confined spaces. G.657A1 fibers are fully compatible with commonly used G.652D fibers.

BASIC SPECIFICATIONS

Cable type: blow-in

Fiber type: 9/125 µm

Fire reaction class, sheath type: Fca HDPE

Secondary protection type: free

Cable type according to filling: gel

Type by number of tubes: CLT

Operating temperature: -30°C to +60°C

Installation temperature: -10°C to 50°C

Attenuation at 1310 nm: 0.35 dB/km

Attenuation at 1550 nm: 0.25 dB/km

Cable diameter: 2.8 mm

Short-term tensile strength: 75 N

Short-term compressive strength: 450 N/ 100 mm
