Solarix POD-SR-1-G

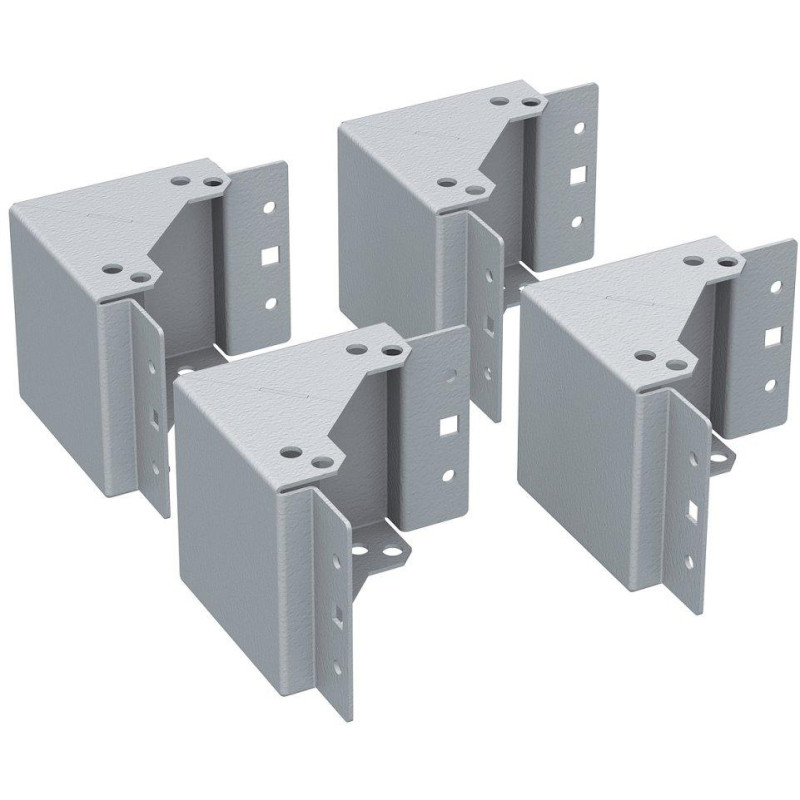

Universal set of pedestal corners, height 100 mm, including mounting kit RAL7035
Modular pedestals are designed for installation under the LC-50, LC-30 Solarix rack cabinets.
They are always based on symmetrical corner pieces and side panels, which can be used in width and depth. The variability of the assembly results in new application possibilities. For example, it is possible to attach parts with ventilation openings or a brush strip to the side. The corner pieces can be fixed to the floor in the room.
The grid base panels are complemented by a replaceable filter fabric that allows sufficient filtered air to flow into the rack.
The stands are delivered in parts and disassembled!
The simple pedestal consists of the following parts ordered separately:
Plinth height 100 mm:
– 1x universal corner set, height 100 mm
– 4x base panels (each can be solid, with a hole, perforated or with a brush strip)
Plinth height 200 mm:
– 1x universal corner set, height 200 mm
– 8x base panel (each can be solid, with a hole, perforated or with a brush strip)
Corner parts:
– are supplied in two heights: 100 and 200 mm
Side panels of the base:
– four types of base side panels are available
– side panels can be removed even after installation under a built-in cabinet with equipment
Delivery contents:
– the corner set and base panels always include mounting material for assembly and mounting on the cabinet
Material:
– steel sheet painted with powder technology in shades of light gray RAL 7035
BASIC SPECIFICATIONS
Height: 100mm
Material: steel sheet
Color: gray (RAL 7035)
Assembly example:
