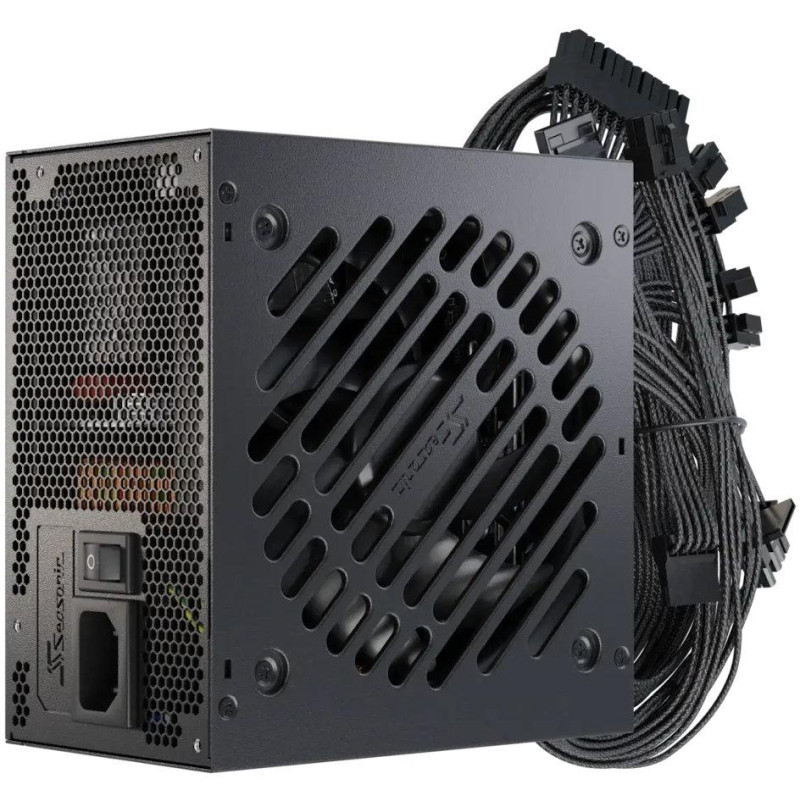

SEASONIC power source Core BC-650 / 650W / ATX3.1 / 120mm fan / 80PLUS Bronze

Reliable power supply with 650W output and modern ATX 3.1 compatibility for gaming builds and everyday use.

SEASONIC Core BC-650 is an ideal choice for PC builders looking for a reliable power supply with modern standards. With 80PLUS Bronze certification , it ensures high energy efficiency, which means lower power consumption and less heat loss. The compact design of 140 × 150 × 86 mm fits into most cases.

The power supply is equipped with an advanced Smart and Silent Fan Control (S2FC) system, which intelligently regulates the speed of the 120mm fan with Hydro Dynamic Bearings . This technology ensures the optimal balance between effective cooling and quiet operation according to the current system load.

Advanced protection features
The power supply includes a full set of protection circuits including overload (OCP), overvoltage (OVP), undervoltage (UVP), short circuit (SCP), overtemperature (OTP), and overpower (OPP) protection. These systems protect both the power supply itself and the connected components.

Connectors and cables
The BC-650 features fixed, individually braided cables. It includes a 24-pin motherboard connector, an 8-pin CPU connector, two 8-pin PCIe connectors for graphics cards, and SATA/Molex connectors for storage and other components.

Certifications and standards
The product meets international safety standards CE, CB, CCC, cTUVus, TUV, BSMI, EAC and UKCA. Environmental certifications include Energy Star, RoHS, REACH, WEEE and ErP Lot 6.

BASIC SPECIFICATIONS

Power: 650W

Certification: 80PLUS Bronze

Compatibility: ATX 3.1 / EPS

Fan: 120 mm HDB, S²FC control

Input voltage: 100-240V AC, 50-60Hz

Output voltage: +3.3V (20A), +5V (20A), +12V (54A), -12V (0.3A), +5Vsb (2.5A)

Connectors: 24-pin MB, 8-pin CPU, 2x 8-pin PCIe, SATA/Molex

Protective functions: OCP, OPP, OTP, OVP, SCP, UVP

Dimensions: 140 × 150 × 86 mm

Operating temperature: 0 to +40°C

MTBF: 100,000 hours at 25°C
