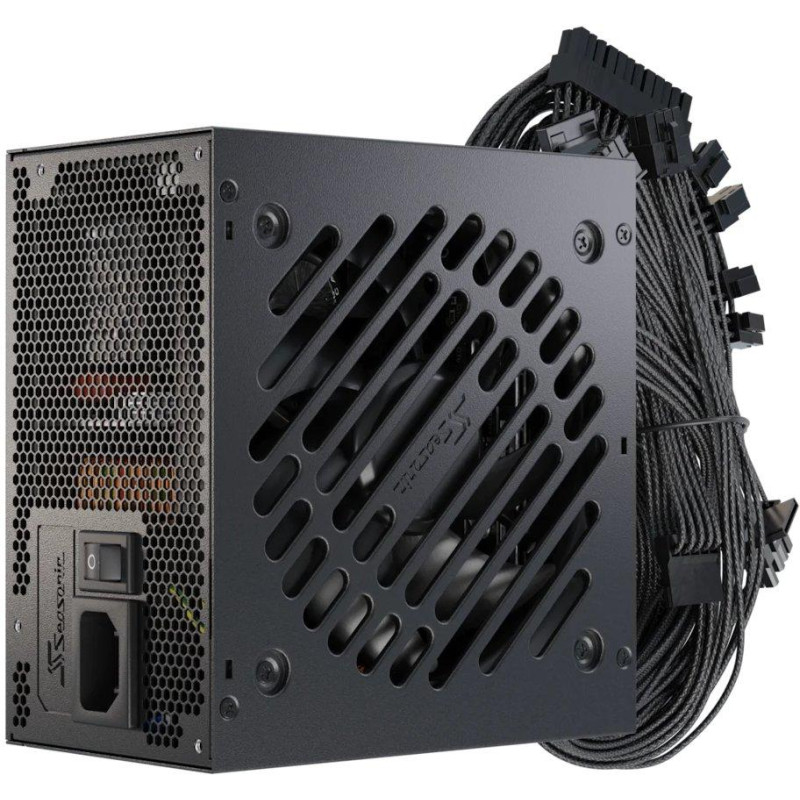

SEASONIC power source Core BC-750 / 750W / ATX3.1 / 120mm fan / 80PLUS Bronze

Modern ATX power supply with 750W power and full support for the latest ATX 3.1 and PCIe 5.1 standards.

The SEASONIC Core BC-750 is a reliable solution for current and future PC builds. With a native 12V-2x6 cable , it is ready for the latest NVIDIA RTX 40 and 50 series graphics cards with the ability to deliver up to 600W of power . At the same time, it maintains compatibility with older GPUs via traditional 2x 8pin PCIe cables .

Compact dimensions of 140 x 150 x 86 mm and 80 PLUS® Bronze certification ensure energy-efficient operation with minimal heat output. Intelligent fan control S2FC (Smart and Silent Fan Control) with 120mm HDB fan provides the optimal balance between efficient cooling and quiet operation.

Advanced cooling technology
The S2FC system dynamically adjusts the fan speed according to the current temperature and load. It operates almost silently at low to medium loads, and ensures effective heat dissipation at higher loads. HDB bearings guarantee a long service life of up to 40,000 hours at 40°C .

Universal connectors
The power supply includes 1× 24pin ATX connector for the motherboard, 2× 8/4pin CPU connectors for processor power, 2× 8/6pin PCIe connectors for older graphics cards, 1× 12V-2×6 connector for the latest GPUs, and 3× SATA/Molex connectors for storage and accessories.

Reliability and safety
A full set of protection circuits protects all components against overload, overvoltage, undervoltage, short circuit and overheating. An MTBF of 100,000 hours at 25°C and a wide operating temperature range of 0 to 40°C ensure long-term reliability.

BASIC SPECIFICATIONS

Performance:750W continuous

Standard: ATX 3.1, PCIe 5.1

Certification: 80 PLUS® Bronze

Fan: 120mm HDB with S2FC control

Input voltage: 100-240V AC, 50-60Hz

Output voltage: +12V (62A/744W), +5V (20A/100W), +3.3V (20A/100W)

Connectors: 1× 24pin ATX, 2× 8/4pin CPU, 2× 8/6pin PCIe, 1× 12V-2×6, 3× SATA/Molex

Dimensions: 140 × 150 × 86 mm

Protection circuits: OCP, OPP, OTP, OVP, SCP, UVP
