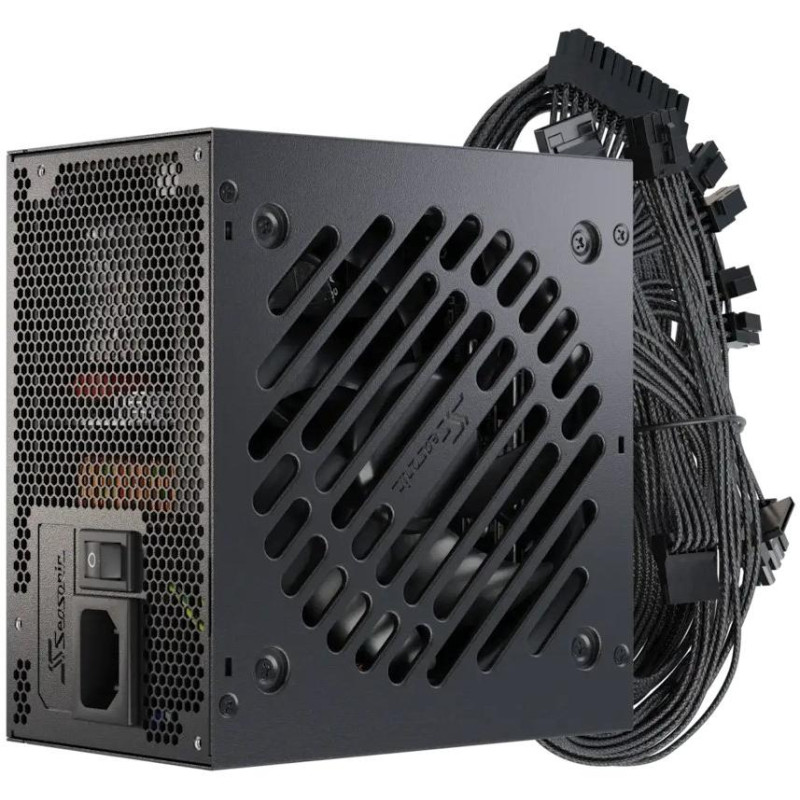

SEASONIC power supply Core GC-750 / 750W / ATX3.1 / 120mm fan / 80PLUS Gold

Modern ATX 3.1 power supply with 750W power and support for the latest PCIe 5.1 graphics cards.

The SEASONIC Core GC-750 is the ideal solution for current and future gaming setups. With full compatibility with ATX 3.1 and PCIe 5.1 standards, it is ready for the latest components, including NVIDIA RTX 40 and 50 series graphics cards. 80PLUS Gold certification guarantees high power conversion efficiency and lower operating costs.

The compact 140 x 150 x 86mm design fits into smaller cases, while the S2FC intelligent fan control ensures the optimal balance between cooling and quiet operation. The high-quality 120mm HDB fan with a 40,000-hour lifespan provides reliable cooling throughout operation.

Ready for the future
The native 12V-2x6 cable allows for safe powering of the latest graphics cards with up to 600W of power. At the same time, it maintains compatibility with older GPUs thanks to traditional 8-pin connectors, so you can upgrade your power supply without having to replace the graphics card.

Intelligent cooling
S2FC technology dynamically adjusts fan speed based on current temperature and load. At lower loads, the power supply operates virtually silently, while at higher loads, it ensures effective heat dissipation.

Reliability and safety
A complete set of protection circuits protects your components from overvoltage, undervoltage, short circuit and overheating. CE, TUV, cTUVus and other certifications confirm high quality and operational safety.

BASIC SPECIFICATIONS

Power: 750W

Certification: 80PLUS Gold

Standard: ATX 3.1, PCIe 5.1

Fan: 120mm HDB, S2FC control

Connectionry: 24pin MB, 2× 8pin CPU, 2× 8pin PCIe, 1× 12V-2×6, 3× SATA/Molex

Power lines: +12V (62A/744W), +5V (20A/100W), +3.3V (20A/100W)

Input voltage: 100-240V AC, 50-60Hz

Dimensions: 140 × 150 × 86 mm

Fan life: 40,000 hours at 40°C

MTBF: 100,000 hours at 25°C
