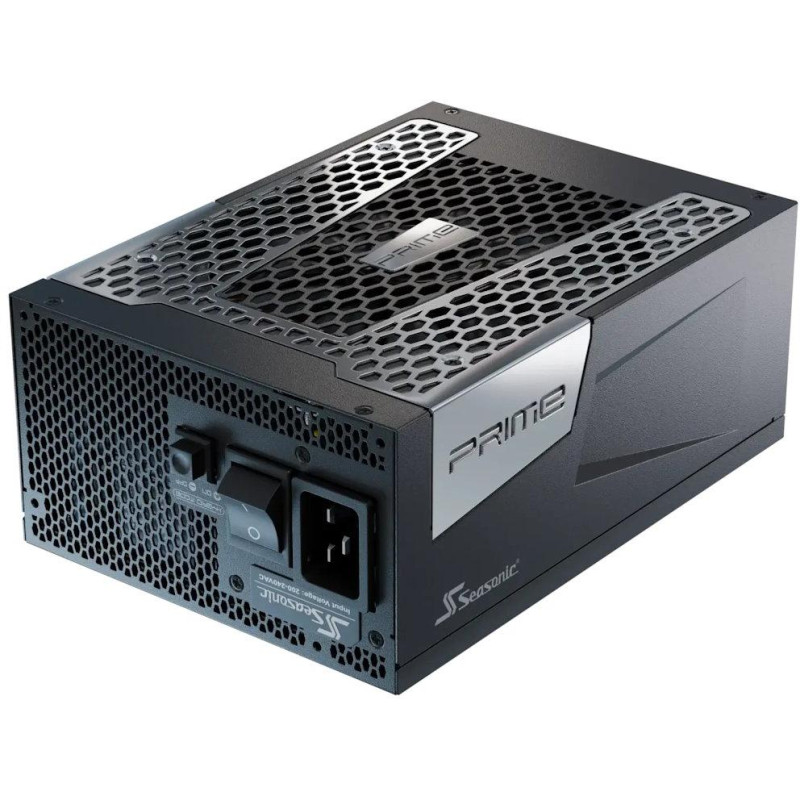

SEASONIC power supply Prime PX-2200 Platinum / ATX3.1 / active. PFC / 80PLUS Platinum

Top-notch modular power supply with 2200W output for the most demanding gaming and professional setups.

Introducing the PRIME PX-2200 series premium power supply with full ATX 3.1 and PCIe 5.1 compatibility. This powerful power supply is designed for extremely demanding applications and multi-GPU configurations with the latest RTX 50 series graphics cards.

The power supply is 80 PLUS® Platinum certified with over 90% efficiency, ensuring minimal energy loss and lower operating costs. Advanced micro-tolerance load regulation (MTLR) with 1% accuracy and ultra-low ripple below 20 mV provide stable power for even the most sensitive components.

Advanced cooling and quiet operation
A high-quality 135mm fan with fluid dynamic bearing technology ensures long life and quiet operation. Digital hybrid speed control optimizes cooling according to the current load.

Premium connectivity
The power supply offers a rich set of connectors including 3× EPS 12V/ATX 12V, 2× native 12V-2x6, 2× adapter 12V-2x6 and 4× PCIe connectors. All high-current connectors are gold-plated for better conductivity.

Support for multi-GPU technologies
With 2200W of power and a stable 12V rail, the power supply is ideal for setups with multiple graphics cards or for demanding professional applications requiring maximum power stability.

BASIC SPECIFICATIONS

Power: 2200W

Certification: 80 PLUS® Platinum, ATX 3.1, PCIe 5.1

Voltage lines: +3.3V/25A, +5V/25A, +12V/183.33A, -12V/0.5A, +5Vsb/3A

Connectors: 1× 24-pin ATX, 3× EPS/ATX 12V, 4× 12V-2x6, 4× PCIe, 16× SATA

Fan: 135mm fluid dynamic bearing with digital control

Protective functions: OPP, OVP, UVP, SCP, OCP, OTP

Input voltage: 200-240V AC

Ripple: below 20mV (below 25mV for 1000W)

Dimensions: 210 × 150 × 86 mm
