XtendLan EHDMIC11D-TR
HDMI transmission over LAN. Use as an HDMI extender or signal splitter. A couple of devices. HDMI is transmitted compressed up to 18 Mbps. Only one transmitter can be used for many receivers. Broadcasting in UDP multicast.

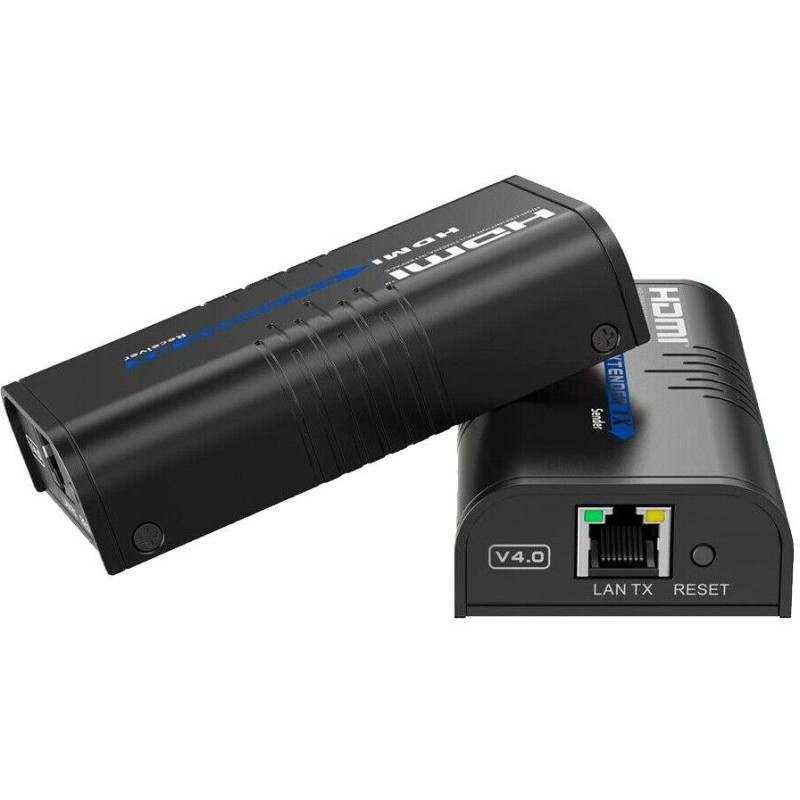

A pair of transmitter and receiver units that allow the transmission of HDMI video over Ethernet networks. Typically suitable for digital signage applications and the transmission of compressed HDMI signals. Transmission distance for 1080 px at 60 Hz: Cat5 - 80 m, Cat5e - 100 m, Cat6 - 120 m.
The transmission is performed using UDP multicast. This allows you to purchase multiple receiving sites and receive and display the same source on them. The number of possible receivers in the network is up to 263. The user does not need to configure anything, just connect the devices.
This converter is already the 4th generation. If you have an older version of this model marked as v1 / v2 / v3, it will not be compatible with this converter.
BASIC SPECIFICATIONS
Features:
- HDMI 1.3 input, HDCP 1.4 compatible
- connection via IP network (Ethernet, UDP multicast)
- range given by the existence of an IP network, e.g. using Ethernet converters and hubs and routers, it can be expanded unlimitedly
- The HDMI signal is compressed to a level of up to 18 Mbit/s, it is not a lossless transmission
- LED activity/power indicator
- support for resolutions up to 1080 px at 50/60 Hz
- support UTP/STP Cat5/5e/6
Sending party:
LAN, 10/100 Mbps, RJ-45, 10/100Base-TX
HDMI input
5 V DC power supply, component power supply
Receiving party:
LAN, 10/100 Mbps, RJ-45, 10/100Base-TX
HDMI output
5 V DC power supply, component power supply
Connectors: 2x RJ-45 for extension, 1x HDMI input, 1x HDMI output
Dimensions: 110 x 58 x 26 mm
