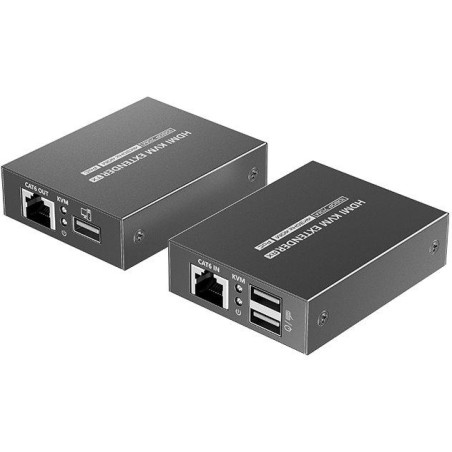

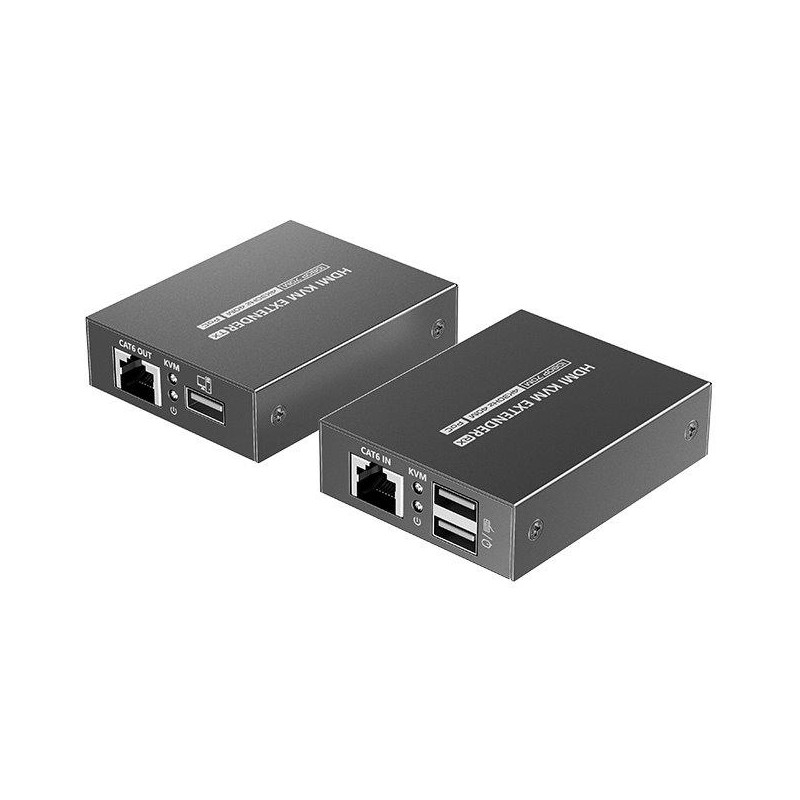

XtendLan CAT6 HDMI extender, transmitter+receiver, 40m 4k/2k/1080p over one CAT6 cable, POC, IR and USB transmission (KVM)

XtendLan EHDMI11EIRU4K-TR40

With this extender, you can easily transmit HDMI and USB signals over distances of up to 40 m. The converter (transmitter) converts the standard HDMI/USB signal to a network LAN and uses a CAT6/6a/7 cable to transmit it to the destination, where it is converted back to HDMI/USB. This allows you to transmit images with resolutions up to 4K safely and without loss of quality. The first converter (on the video signal source side) is powered by the supplied 5V adapter. The second converter is powered via an Ethernet cable from the first converter and does not require any additional power supply. .

•

• HDMI 1.4 signal transmission

• 4K transmission at 30 Hz at a distance of 40 m and Full HD at 60 Hz at a distance of up to 70 m

• HDCP 1.4, HDR and KVM support

• DTS, DTS-HD, PCM, LPCM audio support

• ESD protection, 4 kV contact, 8 kV air, IEC61000-4-2


BASIC SPECIFICATIONS

Supported resolution: up to 4K

Connectors: 1. converter: 1× HDMI input, 1x USB, 1x power jack, 1x RJ-45 output 2. converter: 1× HDMI output, 2× USB for keyboard and mouse, 1× RJ-45 input

Transmission technology: via LAN cable

Maximum transmission distance: up to 70 m when using CAT6/6a/7 cable (40 m at 4K)

Dimensions: 75 × 60 × 20 mm

Weight: 123g

Color: black
