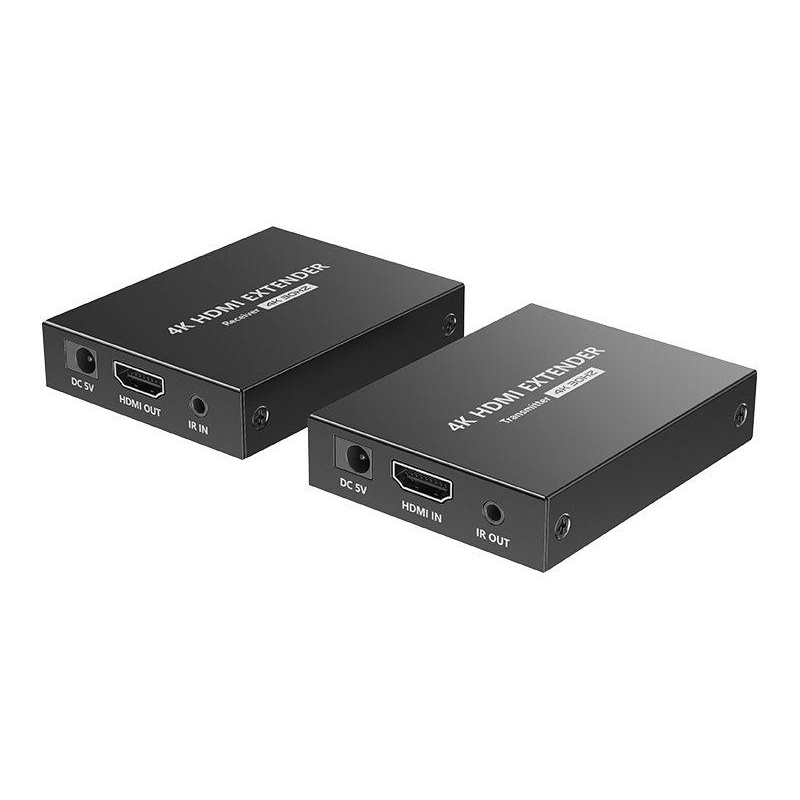

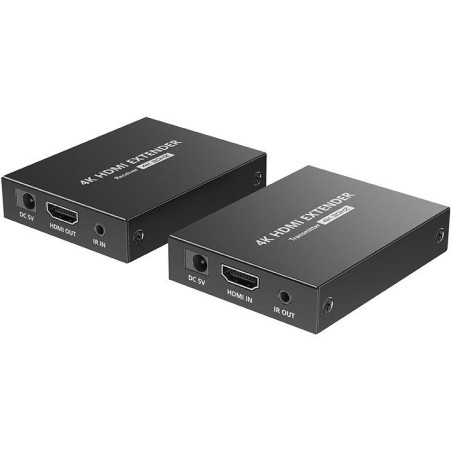

XtendLan CAT6 HDMI extender, transmitter+receiver, 40m 4k/2k/1080p over one CAT6 cable, POC, IR transmission

XtendLan EHDMI11EIR4K-TR40

With this extender, you can easily transmit an HDMI signal up to 40 m away. The converter (transmitter) converts a standard HDMI signal to a network LAN and uses a CAT6/6a/7 cable to transmit it to the destination, where it is converted back to HDMI. This allows you to transmit images with a resolution of up to 4K safely and without loss of quality. The converters can be controlled remotely using an IR remote control.

•

• HDMI 1.4 signal transmission

• 4K transmission at 30 Hz at a distance of 40 m and Full HD at 60 Hz at a distance of up to 70 m

• HDCP 1.4 support, HDR

• DTS, DTS-HD, PCM, LPCM audio support

• IR pass-back support (20-60 kHz)

• ESD protection, 4 kV contact, 8 kV air, IEC61000-4-2


BASIC SPECIFICATIONS

Supported resolution: up to 4K

Connectors: 1x HDMI input, 1x HDMI output, 1x IR input, 1x IR output, 1x RJ-45 input, 1x RJ-45 output

Transmission technology: via LAN cable

Maximum transmission distance: up to 70 m when using CAT6/6a/7 cable (40 m at 4K)

Dimensions: 75 × 60 × 16.5 mm

Weight: 127g

Color: black
