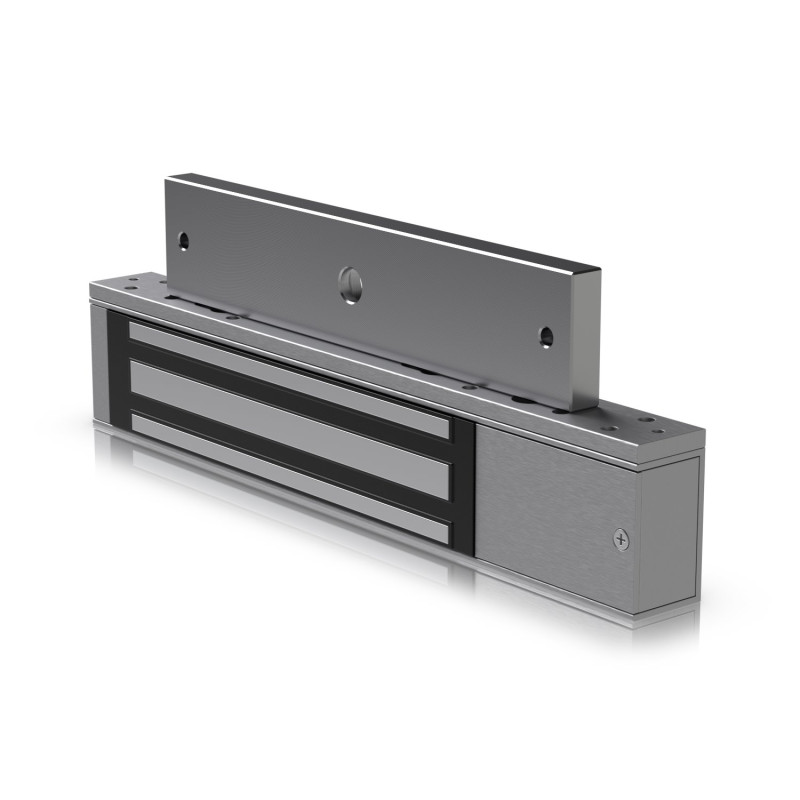

Spolehlivý fail-safe magnetický zámek navržený pro dveře otevírané dovnitř i ven. Tento zámek se přímo připojuje k jednotce UniFi Access Hub a představuje vysoce bezpečné řešení přístupu pro komerční i firemní prostory. Vyniká vysokou přídržnou silou, integrovaným senzorem stavu dveří a robustním provedením z kvalitních materiálů.
Přehled
Rozměry
UA-Lock-Magnetic-270kg
Lock body: 250 x 42.5 x 26 mm (9.8 x 1.7 x 1")
Install plate: 250 x 25 x 5 mm (9.8 x 1 x 0.2")
Armature: 185.5 x 38.5 x 11 mm (7.3 x 1.5 x 0.4")
UA-Lock-Magnetic-540kg
Lock body: 266 x 67.5 x 40 mm (10.5 x 2.7 x 1.6")
Install plate: 266 x 40 x 6 mm (10.5 x 1.6 x 0.2")
Armature: 185 x 61 x 16 mm (7.3 x 2.4 x 0.6")
Hmotnost
UA-Lock-Magnetic-270kg
Lock body: 1 kg (2.2 lb)
Install plate: 70 g (0.15 lb)
Armature: 600 g (1.3 lb)
UA-Lock-Magnetic-540kg
Lock body: 2.9 kg (6.4 lb)
Install plate: 145 g (0.3 lb)
Armature: 1.4 kg (3.1 lb)
Materiál krytu
Device/brackets: aluminum Armature: steel
Typ zámku
Fail safe
Podporovaný typ dveří
UA-Lock-Magnetic-270kg: Single door (Wooden/metal/glass)
UA-Lock-Magnetic-540kg: Single door (Wooden/metal)
DPS
Embedded
Přídržná síla
UA-Lock-Magnetic-270kg: 270 kg (600 lb)
UA-Lock-Magnetic-540kg: 540 kg (1,200 lb)
Proudový odběr
500mA ±10%
Podporovaný rozsah napětí
12V DC ±10%
Zapojení
(1) Lock 12V/NC (red)
(1) Lock 12V/COM (black)
(1) DPS/+ (white)
(1) DPS/- (yellow)
Montáž
UA-Lock-Magnetic-270kg
L bracket: for outward opening door thickness < 42 mm (< 1.7")
Z bracket: for inward opening door, used with L bracket
U bracket: for glass door thickness ? 17 mm (? 0.7") and door gap ? 5 mm (? 0.2")
UA-Lock-Magnetic-540kg
L bracket: for outward opening door thickness < 42 mm (< 1.7")
Z bracket: for inward opening door, used with L bracket
