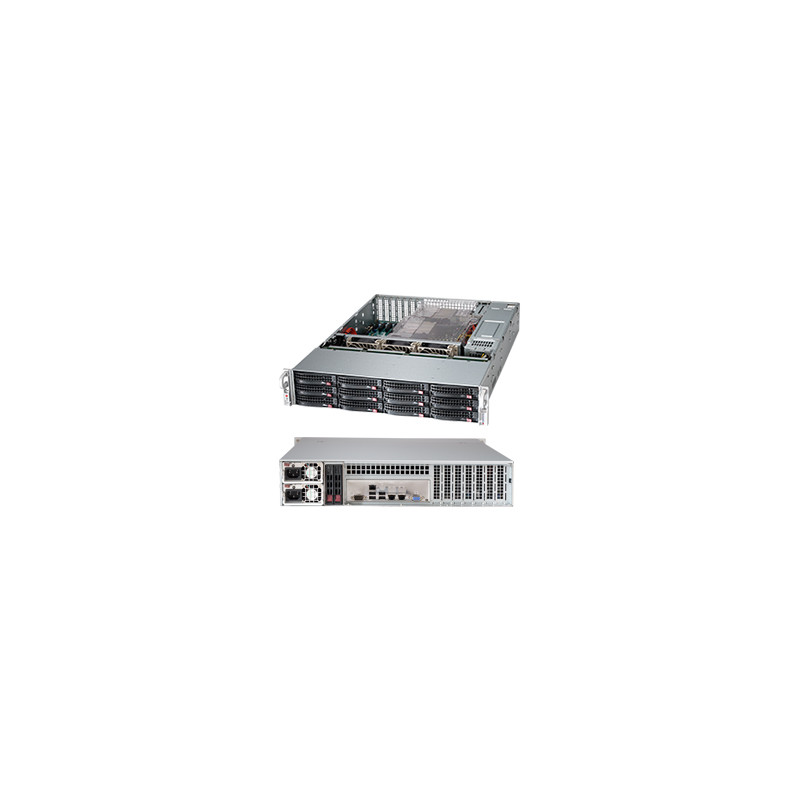

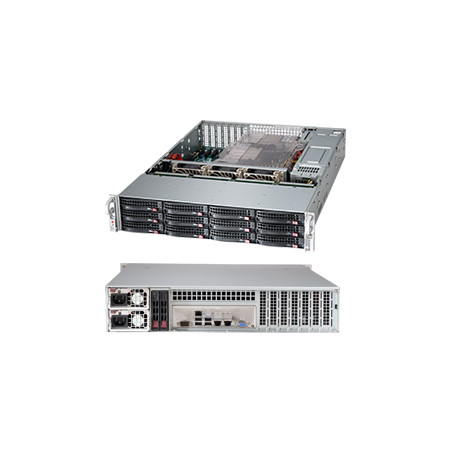

SUPERMICRO 2U chassis 12x 3,5" HS SAS/SATA/NVMe + volitelný 2x 2,5", 2x800W (80PLUS tit.)
  • SUPERMICRO 2U chassis 12x 3,5" HS SAS/SATA/NVMe + volitelný 2x 2,5", 2x800W (80PLUS tit.)

SUPERMICRO 2U chassis 12x 3,5" HS SAS/SATA/NVMe + volitelný 2x 2,5", 2x800W (80PLUS tit.)

SRCSE826BAC12R802LPB
Supermicro
Grade
Write your review
€1,332.78
Tax included
€1,101.47 Tax excluded
i
The amount of VAT applied is 21% for the country Czechia.
To order
Quantity
Out of stock

Ask about the product on WhatsApp


Business terms and conditions



Delivery policy



Return policy

help_outlineProduct inquiry by email
Description

Key Features




  2. 800W high-efficiency AC-DC Redundant power supplies
  3. Direct attached Storage Rackmount chassis
  4. Support 12x SAS3/SATA3/NVMe4 storage devices
  5. 3 high-performance fans with adjustable air shroud


Specifications








Product SKUs

CSE-826BAC12-R802LPB

  • SuperChassis 826BAC12-R802LPB




Form Factor



  • 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68" with rear 2.5" HDD option installed




Processor Support



  • Dual and Single Intel® and AMD processors




Dimensions

Height

  • 3.5" (89 mm)
Width

  • 17.2" (437 mm)
Depth

  • 25.5" (647 mm)
Gross Weight

  • 55 lbs (24.95 kg)
Net Weight

  • 40 lbs (18.14 kg)
Packaging (W x H x L)

  • 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)
Available Color

  • Black




Expansion Slots



  • 7x Low-profile expansion slot(s)




Drive Bays



  • Optional 2x 2.5" hot-swap drive bay
  • 12x 3.5" hot-swap drive bay
  • 12x SAS3/SATA3/NVMe4 storage devices




Backplane



  • 12-Port 2U LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS




Front Panel

Button

  • Power On/Off button
  • System Reset button
LED

  • Power status LED
  • HDD activity LED
  • 2 Network Activity LEDs
  • Unit Identification (UID) LED
  • Fan Fail/System Over Heat LED











Systems Cooling

Fans

  • 3x 8cm high-performance PWM fan(s)




System Monitoring



  • Chassis intrusion switch




Operating Environment (System)

Operating Temperature Range

  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range

  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range

  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range

  • 5% - 95% (non-condensing)




Power Supply

1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
Power Efficiency

  • 96%
Total Output Power and Input

  • 800W with Input 200 - 240Vdc
  • 800W with Input 100 - 240Vac
AC Input Frequency

  • 50-60Hz
Dimensions (L x W x H)

  • 336 x 76 x 40 mm
Output Type

  • Backplanes (gold finger)
+12V

  • Max: 66A / Min: 0A (100Vac - 240Vac)
  • Max: 66A / Min: 0A (200Vdc - 240Vdc)
+5Vsb

  • Max: 4A / Min: 0A
Power Distributor

  • PDB-PT826-8824
  • O/P: 12V/135
  • +5V Max: 40A
  • +3.3V Max: 24A
  • -12V Max: 0.6A
Certification

  • Titanium Certified  Titanium Certified




Regulatory (Power Supply)

Power Supply Safety / EMC

  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • TUV/CB
  • UL/CUL

























Components







Standard Parts List
  Part Number Qty Description
Air Shroud MCP-310-29001-0N 1 SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
HD Backplane BPN-SAS3-LA26A-N12 1 2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS
Cable(s) CBL-CDAT-0607 1 [NR] FRONT CNTL,20 TO 20 PIN, P0.5, FFC,FLAT, 23.5CM, STD
Cable(s) CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
Cable(s) CBL-PWEX-1078 3 PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS
Part(s) MCP-120-00115-0N 7 Blank LP L-bracket with 4x4 vent holes
Part(s) MCP-230-82602-0N 1 Top cover for SC826B/216B/825B
Part(s) MCP-290-82604-0V 1 Silver right chassis handle for SC826,HF,RoHS/REACH,PBF
Part(s) MCP-290-82617-0V 1 SC826B left chassis handle w/ RESET mylar for FPB-FP826-T
Fan(s) FAN-0166L4 3 80x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4)
Fan(s) FAN-0206L4 3 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers
Front Panel FPB-TB826-T 1 Chassis transfer board for SC826
Drive Tray(s) MCP-220-00075-0B 12 Black gen 5.5 hot-swap 3.5" HDD tray
Power Distributor PDB-PT826-8824 1 PDB with longer 24pin for SC826B
Power Supply & Accessory PWS-802A-1R 2 1U 800W 100-240Vac/47-63Hz, and DC240 input
Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W
Mounting Rail(s) MCP-290-00060-0N 1 Threaded rail adapter default for round hole rack
Rear Window MCP-240-82608-0N 1 216B/826B LP rear window,RoHS/REACH,PBF








Optional Parts List

  Part Number Qty Description
Front Bezel MCP-210-82601-0B •logo_eStore.jpg - Black Front Bezel for 826 chassis
HDD Kit MCP-220-82616-0N •logo_eStore.jpg - 12G 2.5x2 Drive Kit w/ Status LED(216B/826B/417B/846X/847B)
Short Rail MCP-290-00058-0N •logo_eStore.jpg - Short rail set, quick release, 19.6"~26.9" Extendable Length
Tray(s) MCP-220-00116-0B •logo_eStore.jpg - Black gen-5 3.5-to-2.5 NVMe drive tray, Orange tab (for hotswap NVMe drive),RoHS/REACH
MCP-220-00118-0B •logo_eStore.jpg - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH










Servers (for CSE-826BAC12-R802LPB)

SSG-520P-ACTR12H SSG-520P-ACTR12L









Motherboard (for CSE-826BAC12-R802LPB)

blank-dot-image.png X12SPI-TF


red-dot-image.png = Most optimized Chassis for SuperServer Configuration

Blue color = Compatible

Green color = Global SKU & Compatible

Red dot & green color = Optimized + Global SKU
