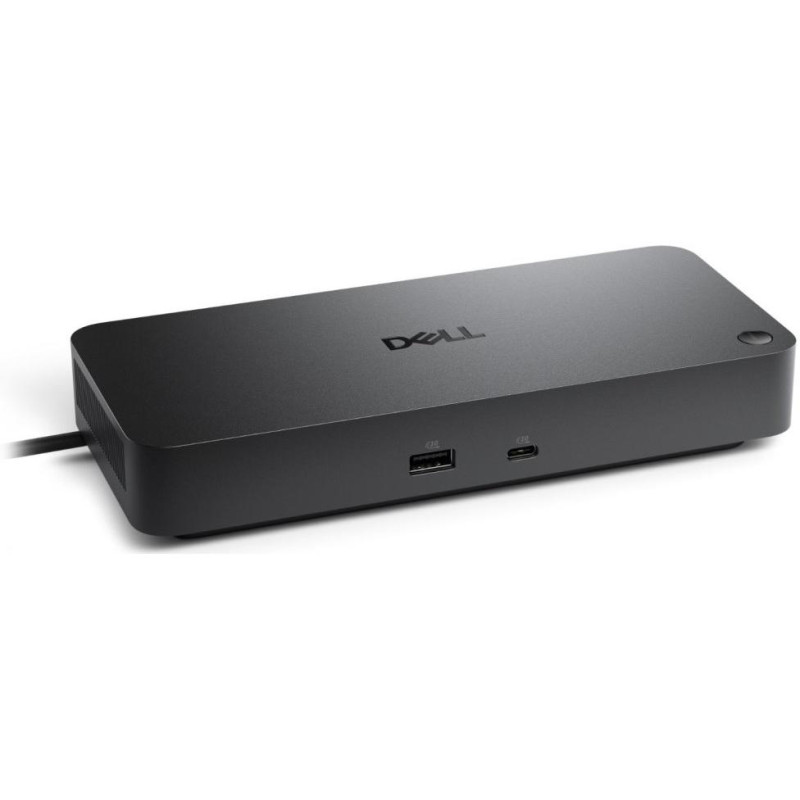

DELL WD25TB5/ docking station/ Thunderbolt/ Docking Station/ 330W

The most powerful docking station with Thunderbolt 5 technology for maximum productivity.

The Dell Pro Thunderbolt 5 Dock WD25TB5 is a premium solution for power users who need maximum performance and connectivity. With Extended Power Range technology, it can deliver up to 300W of power for Dell systems (240W for others) over a single USB-C cable , ensuring power for even the most powerful laptops, including AI PCs.

The station allows you to connect up to four external displays with support for resolutions up to 8K at 60 Hz or 4K at 120 Hz . There are two DisplayPort 2.1 ports , one HDMI 2.1 and a multi-function USB-C DisplayPort 2.1 . A fast 2.5 Gigabit Ethernet network card ensures a stable and powerful network connection.

Advanced management and security
The station offers comprehensive management capabilities via the Dell Device Management Console with support for automatic firmware updates, peripheral inventory, and silent updates when the dock is undocked. Remote management via Intel® AMT over Thunderbolt is available for Intel® vPro®-enabled computers. Features such as Kernel DMA Protection , port disablement, and MAC Address Pass-through ensure a high level of security.

Flexible display connection
The dock supports a wide range of display configurations: four QHD or 4K 60Hz displays, three WQHD or 4K 120Hz displays, two 6K 60Hz displays, or one 8K 60Hz or 5K 60Hz display. All video outputs use the latest DisplayPort 2.1 and HDMI 2.1 standards for maximum image quality.

Ecological solution
The dock is made with sustainability in mind – it contains at least 65% recycled plastic and comes in 100% recycled or renewable packaging . The ambidextrous 83cm USB-C cable allows for flexibleFlexible placement of the dock on the left or right of the computer.

BASIC SPECIFICATIONS

Interface: Thunderbolt 5

Video outputs: 2x DisplayPort 2.1, 1x HDMI 2.1, 1x USB-C Multi-function DisplayPort 2.1

USB ports: 4× USB-A 3.2 Gen 2 (10 Gb/s), 1× USB-C 3.2 Gen 2 (10 Gb/s), 2× Thunderbolt 5

Network: 2.5 Gigabit Ethernet (RJ-45)

Maximum number of displays: 4

Maximum resolution: 8K (7680 × 4320) at 60 Hz or 4K (3840 × 2160) at 120 Hz

Power: 300W (Dell systems), 240W (others), 330W power adapter

Data transfer: up to 1.25 GB/s

Compatible OS: Windows 10/11, Ubuntu 24.04, Red Hat Enterprise Linux 9.7, ChromeOS 141, macOS

Security: Kensington Security Slot, Noble Wedge Security Slot

Dimensions: 205 × 90 × 35.3 mm

Weight: 620g

Cable length: 83 cm
