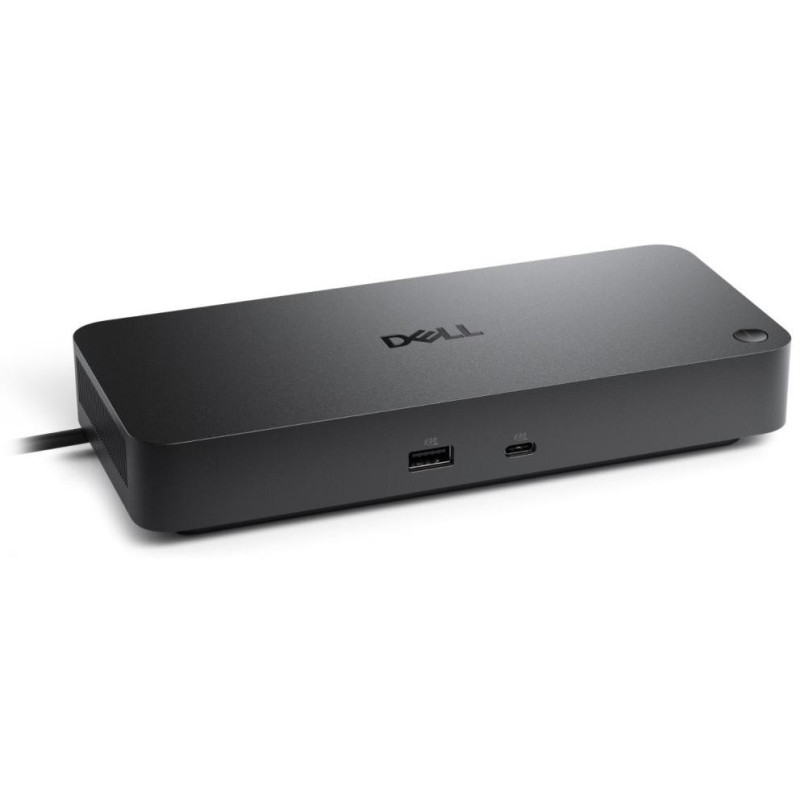

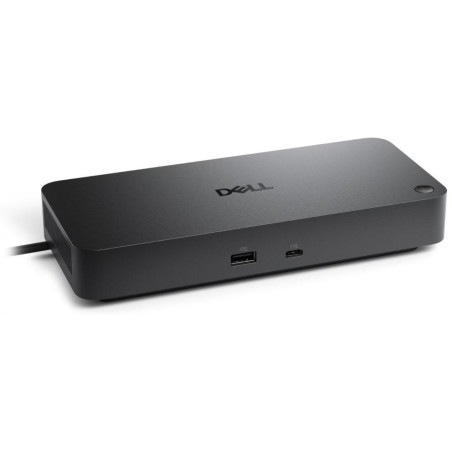

DELL WD25TB4/ docking station/ Thunderbolt/ Docking Station/ 180W

A powerful Thunderbolt 4 docking station for the modern workplace with support for up to four 4K displays and advanced IT management features.

The Dell Pro Thunderbolt 4 Dock WD25TB4 is a leading solution for expanding the connectivity of your notebook and desktop computers. With Thunderbolt 4, it delivers fast data transfer rates of up to 1.25 Gbps while simultaneously delivering up to 130W of power to the connected computer for Dell systems or 96W for non-Dell devices. The dock supports up to four external displays with resolutions ranging from QHD to 8K at 60Hz refresh rates.

The docking station is equipped with an integrated 2.5 Gigabit Ethernet port for fast and stable network connectivity. A total of 6 USB ports of various types ensure the connection of all necessary peripherals, with all ports supplying power even without a computer connected. For IT administrators, it offers advanced features including Intel AMT over Thunderbolt, MAC Address Pass-through, PXE Boot, Wake-on-LAN and remote management via Dell Device Management Console.

Advanced administration and management functions
The station supports remote management via Dell Device Management Console with the ability to automatically update firmware, maintain specific firmware versions, or downgrade. It allows for silent firmware updates when the dock is undocked, minimizing user disruption. Out-of-band management is available for Intel vPro computers via Intel Active Management Technology.

Universal compatibility
The docking station is compatible with Windows 10, Windows 11, Ubuntu 24.04, macOS, ChromeOS 137 and Red Hat Enterprise Linux 9.6 operating systems. It supports features such as Dock Power Button Sync for power-on synchronization, WLAN to LAN Switch for automatic network switching and Kernel DMA Protection for increased security.

Detailed power distribution
Each port provides a specific power output – 4x USB-A 3.2 Gen 2 delivers 4.5W, USB-C 3.2 Gen 2 delivers 15W, USB-C with DisplayPort delivers 7.5W, and both Thunderbolt 4 ports deliver 15W each. All ports deliver power even without a computer connected.

Package contents
The box includes the Dell Pro Docking Station WD25TB4, 180W power adapter, power cord, quick start guide, and documentation including safety, environmental, and regulatory information.

BASIC SPECIFICATIONS

Interface: Thunderbolt 4

Power: 130W (Dell systems), 96W (other systems), 180W adapter

Displays: up to 4 simultaneously, resolution up to 8K at 60Hz

Network: 2.5 Gigabit Ethernet (RJ-45)

USB ports: 4x USB-A 3.2 Gen 2, 2x USB-C 3.2 Gen 2

Video outputs: 2× DisplayPort 1.4, 1× HDMI 2.1, 1× USB-C DisplayPort 1.4

Thunderbolt ports: 2× Thunderbolt 4

Transfer speed: up to 1.25 GB/s

Cable length: 83 cm

Compatibility: Windows 10/11, Ubuntu 24.04, macOS, ChromeOS 137, RHEL 9.6

Security: Kensington Security Slot, Noble Wedge Security Slot

Dimensions: 205 × 90 × 35.3 mm

Weight: 567g
