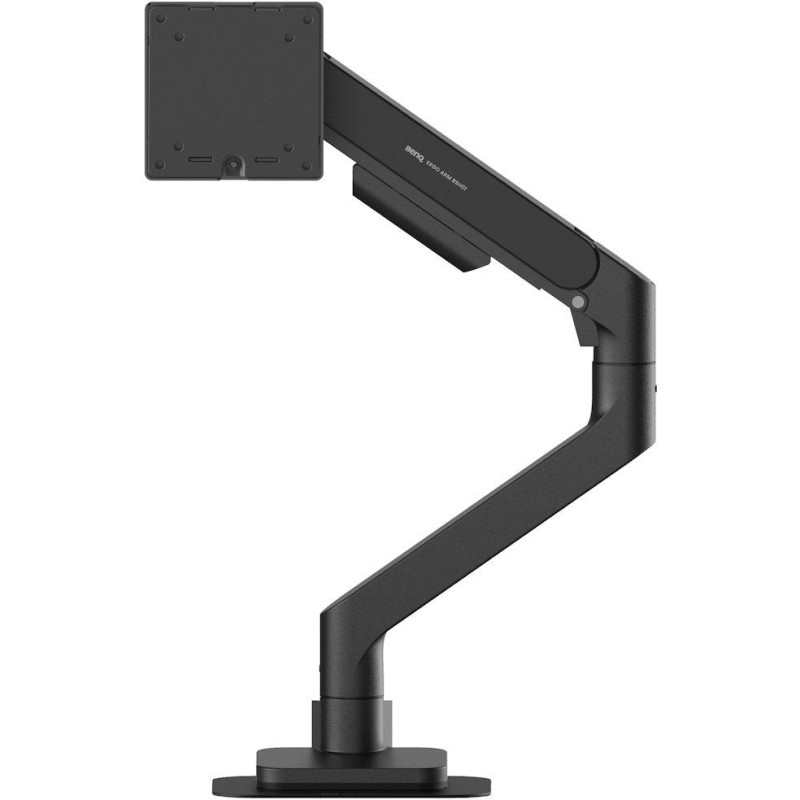

BENQ BSH01 ergonomic monitor arm black

Professional ergonomic arm for monitors with a diagonal of 17 to 45 inches and a weight of 2 to 20 kg.

The arm uses an advanced gas spring tested to 25,000 cycles , ensuring reliable monitor support and long-term functionality. The optimized design allows for smooth adjustment of the monitor's height and position to suit the user's individual ergonomic needs.

The system is compatible with VESA standards 75 x 75 mm and 100 x 100 mm and includes protective steel reinforcement plates to protect thin, glass and fragile tabletops from scratches and deformation. Integrated cable management keeps your workspace tidy.

Flexible assembly and installation
The arm supports two mounting methods – using a clamp or a through hole in the table top. The clamp is suitable for table tops with a thickness of 17–50 mm, and with reinforcement plates, 12–45 mm.

Ergonomic settings
A wide range of adjustments allows for the optimal monitor position for each user. The monitor can be rotated 360°, tilted from 50° to -20°, and extended up to 482 mm from the base.

Work surface protection
Special steel reinforcement plates protect sensitive table surfaces from damage and ensure a stable hold even on thin or glass tables.

BASIC SPECIFICATIONS

Compatible monitor size: 17-45 inches

Load capacity: 2–20 kg

VESA compatibility: 75 × 75 mm, 100 × 100 mm

Maximum extension: 482 mm

Monitor rotation: 180° to -180°

Arm rotation: 90° to –90°

Tilt: 50° to –20°

Tabletop thickness: 17–50 mm (without boards), 12–45 mm (with plates)

Dimensions: 130 × 573 × 548 mm

Weight: 4.43 kg
