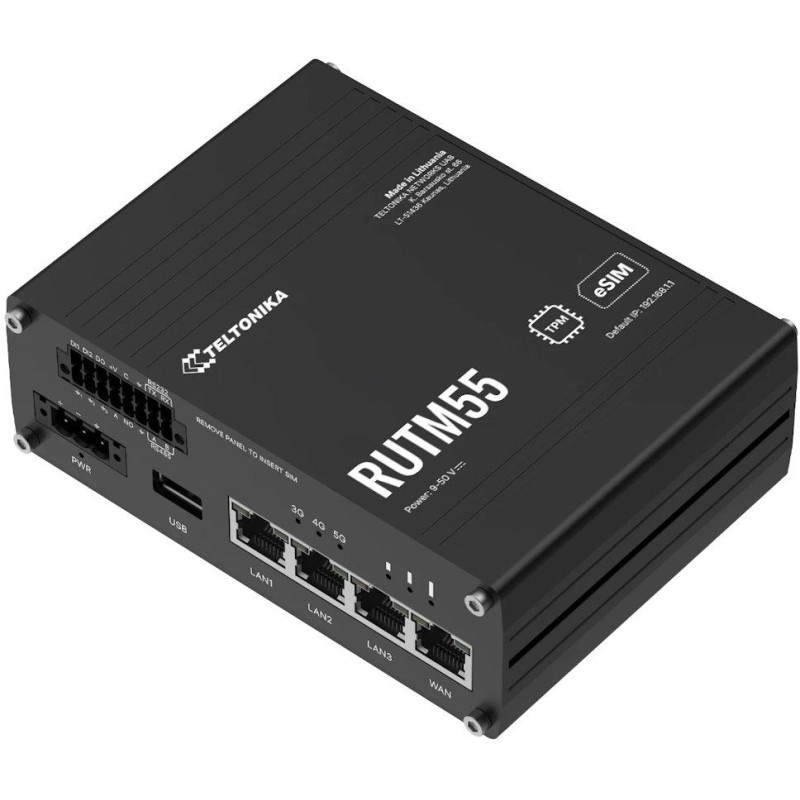

Powerful industrial 5G router for reliable connection even in demanding conditions.
Teltonika RUTM55 brings ultra-fast 5G connectivity with speeds of up to 3.4 Gbps to your industrial networks. This advanced router combines high-speed mobile connectivity with versatile connectivity via 4x Gigabit Ethernet and Wi-Fi 5. It ensures maximum availability with automatic switching between two SIM cards and eSIM in case of an outage.
The router allows direct connection of legacy devices via RS-232/RS-485 serial interfaces , protecting your investment and modernizing your infrastructure. With a robust aluminum body and an operating temperature range of -40°C to 75°C, the RUTM55 is designed for long-term operation in industrial environments. It can be mounted on a DIN rail, wall or flat surface (brackets not included).
Advanced network features
The router offers rich network features including firewall, VLAN, QoS, load balancing and VPN support. The RutOS operating system based on Linux OpenWrt provides a flexible and secure network management environment.
Industrial inputs and outputs
The RUTM55 is equipped with 3 inputs (1× digital dry input, 1× galvanically isolated digital input, 1× analog input) and 2 outputs (1× isolated open collector output, 1× SPST relay output) that allow monitoring and control of external devices.
Flexible power supply and mounting
The router supports a wide input voltage range of 9-50 V DC via a 3-pin connector with reverse polarity protection. The device can be mounted on a DIN rail, wall, or flat surface using optional mounting kits.
More detailed information can be found in the attached manual, in the documents tab or on the pagewiki.teltonika-networks.com/RUTM55 .
BASIC SPECIFICATIONS
Mobile connectivity: 5G Sub-6 GHz SA, NSA (up to 3.4 Gbps DL, 550 Mbps UL), 4G LTE Cat 19 (up to 1.6 Gbps DL)
Processor: MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
Memory: 256MB DDR3 RAM, 16MB NOR flash, 256MB NAND flash
Ethernet: 4x RJ-45 port 10/100/1000 Mbps (1x WAN/LAN, 3x LAN)
Wi-Fi: 802.11b/g/n/ac (Wi-Fi 5), dual-band, MU-MIMO, up to 867 Mbps
SIM: 2x mini SIM slot (2FF), eSIM support (up to 7 profiles)
USB: 1× USB 2.0
Serial interfaces: RS-232, RS-485
I/O: 3× input (digital, galvanically isolated, analog), 2× output (open collector, relay)
Antenna connectors: 4× SMA (cellular), 2× RP-SMA (Wi-Fi), 1× SMA (GNSS)
Power supply: DC 9-50V, 3-pin connector, passive PoE
Operating temperature: -40°C to 75°C
Dimensions (W x H x D): 132 x 95 x 44.2 mm
Weight: 430g
Protection: IP30
Data sheet
