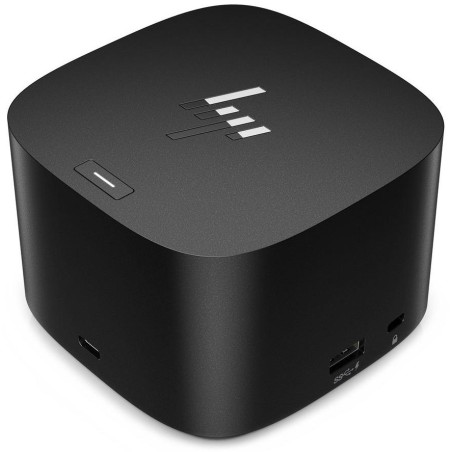

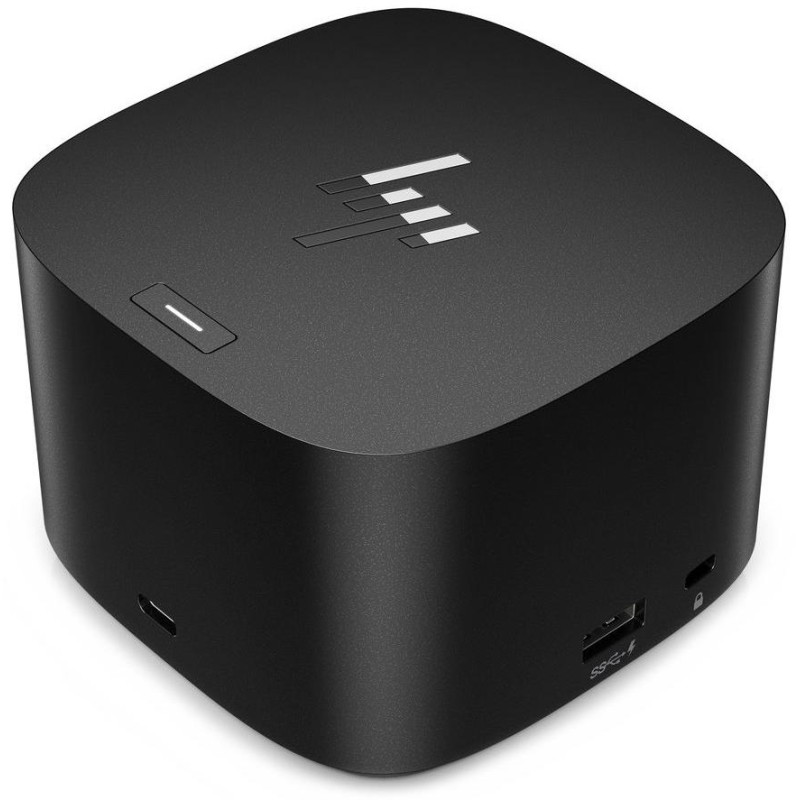

HP Thunderbolt Dock 120W G4
Docking station designed especially for HP laptops. It offers a wide range of connectors that make working with a laptop more enjoyable and easier. Connection to the computer is made via a Thunderbolt 4 connector (USB Type C) , which is used for both data transfer with data transfer rates of up to 40 Gb/s and charging. It is thus capable of transmitting power up to 100 W to supported devices. Powering selected devices via USB-C outside of HP products (such as MacBook) is supported up to 75 W. High-speed access to the network and the Internet can be achieved through the 2.5-gigabit RJ-45 port. For connecting peripherals, the docking station has HDMI and DisplayPort ports, four USB ports, two USB-C ports and one Thunderbolt 4 connector. The station allows you to connect up to four 4K monitors at once . If one monitor is connected, image transmission in a resolution of up to 8K is possible. You will also be pleased with the slot for a security lock or a button for turning the station and the connected device on and off. For laptops without support for charging via USB Type-C (Power Delivery), the docking station can be used as a port replicator.
A 120 W power adapter is included in the package.
BASIC SPECIFICATIONS
Ports: 2× DisplayPort, 1× HDMI, 4× USB 3.0, 2× USB-C, 1× Thunderbolt 4, 1× RJ-45
Interface: Thunderbolt 4
Cable length: 0.8 m
Dimensions: 98 × 98 × 68 mm
Weight: 760g
Color: black
Compatibility:
HP Elite Dragonfly (8MK78EA, 8MK80EA, 8MK77EA)
HP Elite Dragonfly G2 (358V8EA, 401J1EA, 336H1EA)
HP Elite Dragonfly G3 (6T1N2EA)
HP Elite x2 1012 G1 (L5H24EA, L5H19EA, L5H16EA, L5H02EA)
HP Elite x2 1012 G2 (1LV14EA, 2TS29EA, 1LV21EA)
HP Elite x2 1013 G3 (2TS87EA, 2TT29ES, 2TS94EA, 2TT39EA)
HP Elite x2 G4 (7YM41EA, 7KN91EA, 7KN90EA, 7KN93EA, 7YM40EA)
HP Elite x2 G8 (401P6EA, 401Q6EA, 401Q4EA)
HP Elite x360 1040 G9 (6T1N5EA)
HP Elite x360 830 G9 (6T1N3EA)
HP EliteBook 1040 G4 (1EQ14EA, 1EP90EA, 1EP77EA, 1EP15EA, 1EP72EA)
HP EliteBook 1040 G9 (6T1P1EA)
HP EliteBook 630 G9 (5Y3S3EA)
HP EliteBook 640 G9 (5Y3S4EA, 5Y3S5EA, 5Y3S6EA)
HP EliteBook 645 G9 (5Y3S8EA, 5Y3S7EA)
HP EliteBook 650 G9 (5Y3Y2EA, 5Y3W1EA, 5Y3W0EA)
HP EliteBook 655 G9 (5Y3S9EA, 5Y476EA)
HP EliteBook 735 G5 (5FL11AW)
HP EliteBook 735 G6 (7KN14EA)
HP EliteBook 745 G5 (5FL59AW)
HP EliteBook 745 G6 (7KN15EA)
HP EliteBook 755 G5 (5FL61AW)
HP EliteBook 830 G5 (3JW96EA, 3JX24EA)
HP EliteBook 830 G6 (6XD74EA, 6XE61EA, 6XD75EA)
HP EliteBook 830 G7 (1J6E6EA, 1J6F1EA)
HP EliteBook 830 G8 (3G2Q5EA, 3G2Q4EA)
HP EliteBook 830 G9 (6T1N4EA)
HP EliteBook 835 G7 (24Z93EA)
HP EliteBook 835 G8 (48R70EA)
HP EliteBook 840 Aero G8 (3G2J7EA)
HP EliteBook 840 G5 (3JY08ES, 3JX65EA, 3JX27EA, 3JY07ES)
HP EliteBook 840 G6 (6XD78EA, 6XD77EA, 6XD76EA, 6XD48EA)
HP EliteBook 840 G7 (18X52AW, 1J6F0EA, 1J6E8EA, 1J6E9EA)
HP EliteBook 840 G8 (3G2Q8EA, 3G2Q9EA, 3G2R1EA)
HP EliteBook 840 G9 (6T1N6EA, 6T1N8EA, 6T1N7EA)
HP EliteBook 845 G7 (24Z95EA, 24Z96EA, 24Z94EA)
HP EliteBook 845 G8 (48R68EA, 48R66EA, 48R67EA, 48R69EA)
HP EliteBook 845 G9 (6T1N9EA, 6T1P0EA)
HP EliteBook 850 G5 (3JY09ES, 3JX13EA, 3JX19EA)
HP EliteBook 850G6 (6XD81EA, 6XE73EA, 6XD79EA)
HP EliteBook 850 G7 (1J6F2EA, 1J5U6EA, 1J6E7EA)
HP EliteBook 850 G8 (3G2R3EA, 3G2R2EA)
HP EliteBook 855 G7 (1Q6F0ES, 24Z97EA, 24Z98EA)
HP EliteBook 855 G8 (48R65EA, 48R64EA)
HP EliteBook 860 G9 (6T1P3EA, 6T1P2EA)
HP EliteBook Folio G1 (X2F47EA, V1C40EA, V1C41EA)
HP EliteBook x360 1020 G2 (1EM62EA, 1EP66EA, 1EM56EA)
HP EliteBook x360 1030 G2 (Z2W63EA, Z2W74EA, Z2W73EA, 1EP08EA)
HP EliteBook x360 1030 G3 (4QZ23ES, 4QZ22ES, 3ZH02EA, 4QZ21ES)
HP EliteBook x360 1030 G4 (7YL01EA, 7YL04EA, 7YL50EA)
HP EliteBook x360 1030 G7 (1J6L4EA)
HP EliteBook x360 1030 G8 (358T6EA, 401J3EA, 336G0EA)
HP EliteBook x360 1040 G5 (5DG06EA, 5DG26EA, 5DF88EA, 5DF58EA)
HP EliteBook x360 1040 G6 (7KN26EA, 7KN62EA, 7KN38EA, 7KN24EA)
HP EliteBook x360 1040 G7 (204P1EA, 204P4EA)
HP EliteBook x360 1040 G8 (336F4EA, 336F6EA, 401J2EA)
HP EliteBook x360 830 G5 (5SR77EA, 5SR85EA)
HP EliteBook x360 830 G6 (7KN16EA, 7KP18EA, 6XD37EA)
HP EliteBook x360 830 G7 (1J6K8EA)
HP EliteBook x360 830 G8 (3G2Q6EA, 3G2Q7EA)
HP ENVY 17-cr0000nc (732Z9EA)
HP ENVY 17-cr0001nc (733A0EA)
HP ENVY 17-cr0002nc (733A1EA)
HP ENVY 17-cr0003nc (733A2EA)
HP ENVY 17-cr0004nc (733A3EA)
HP ENVY 17-cr0005nc (733A4EA)
HP ENVY 17-cr0222nc (733A5EA)
HP ENVY x360 13-bf0000nc (732X7EA)
HP ENVY x360 13-bf0001nc (732X8EA)
HP ENVY x360 13-bf0002nc (732X9EA)
HP ENVY x360 13-bf0003nc (732Y1EA)
HP ENVY x360 15-ew0000nc (732Y3EA)
HP ENVY x360 15-ew0001nc (732Y4EA)
HP ENVY x360 15-ew0002nc (732Y5EA)
HP ENVY x360 15-ew0003nc (732Y6EA)
HP ENVY x360 15-ey0000nc (732Y9EA)
HP ENVY x360 15-ey0001nc (732Z0EA)
HP ENVY x360 15-ey0002nc (732Z1EA)
HP Pro x2 612 G2 (L5H59EA, L5H56EA, L5H67EA)
HP ProBook 430 G5 (3DN45ES, 4BD51ES, 4WU78ES, 3DN84ES)
HP ProBook 430 G6 (5PP45EA, 8MH11ES, 5PP51EA, 5PP58EA, 6HL90EA)
HP ProBook 430 G7 (8MH50EA, 8MH51EA, 9HR42EA, 8VU50EA)
HP ProBook 430 G8 (3A5J2EA, 2R9C6EA, 3A5J3EA, 2R9C3EA)
HP ProBook 440 G5 (3CA01ES, 4WU79ES, 4BD52ES, 4BD53ES, 2XZ38ES)
HP ProBook 440 G6 (8MH10ES, 6HL91EA, 5PQ09EA, 5PQ24EA, 5TK01EA)
HP ProBook 440 G7 (8MH49EA, 9VY82EA, 9HP67EA, 8MH48EA)
HP ProBook 440 G8 (2R9C8EA, 3A5J5EA, 2R9D2EA, 3A5J6EA)
HP ProBook 440 G9 (6S6J2EA)
HP ProBook 445 G6 (6MR47ES)
HP ProBook 445 G7 (12X16EA, 12X15EA)
HP ProBook 445 G8 (45Q96ES)
HP ProBook 445 G9 (6S6K0EA)
HP ProBook 450 G5 (3DN49ES, 3DN83ES, 3DN48ES, 3DN47ES, 4WU80ES, 3DN86ES, 4WU82ES, 3DN85ES, 4BD55ES, 4BD54ES, 3DN87ES, 3DN88ES, 2XZ33ES, 4WU83ES, 4WU81ES, 2XZ32ES, 4WU84ES)
HP ProBook 450 G6 (6HL95EA, 5PP64EA, 6HL94EA, 6BN82EA, 6HL93EA, 8MH08ES, 8MH09ES, 6HL92EA, 8MH07ES, 8MH06ES, 6HL98EA, 6HL96EA, 6HL99EA)
HP ProBook 450 G7 (1F3H4EA, 1Q3J2ES, 9VY83EA, 255X7ES, 8MH53EA, 9VY85EA, 8VU58EA, 8MH54EA, 8MH55EA, 9VY84EA, 8VU64EA, 8MH56EA, 1Q3J1ES, 8MH57EA)
HP ProBook 450 G8 (2R9D5EA, 3A5H6EA, 3A5J1EA, 32M40EA, 3A5J0EA, 3A5J8EA, 4P333ES, 3A5H7EA, 2R9D7EA, 2R9D3EA, 3A5H9EA, 4K7P1EA, 3A5J7EA)
HP ProBook 450 G9 (6S6J5EA, 6S6J6EA, 723N5EA, 6S6J9EA, 6S6J3EA, 6S6J8EA, 6S6J7EA, 6S6J4EA)
HP ProBook 455 G6 (6MR46ES, 6MR45ES)
HP ProBook 455 G7 (1Q3J3ES, 12X19EA, 12X17EA, 12X21EA, 1Q3J5ES, 1Q3J4ES, 12X18EA, 1Q2W2ES)
HP ProBook 455 G8 (45R01ES, 4P334ES, 45Q97ES, 6Q976ES, 45Q93ES, 45Q98ES, 45Q99ES, 4P335ES, 32N20EA, 45R02ES, 45R00ES, 45R03ES, 43A29EA)
HP ProBook 455 G9 (6S6K1EA, 6S6K2EA)
HP ProBook 470 G5 (4WU85ES, 3DN44ES, 4WU86ES, 3BZ56ES, 3CA00ES)
HP ProBook 630 G8 (4K7D3EA, 250D7EA)
HP ProBook 635 Aero G8 (43A50EA, 43A46EA)
HP ProBook 640 G4 (3JY19EA, 3JY22EA, 3ZG57EA)
HP ProBook 640 G5 (7KP24EA, 6XE24EA)
HP ProBook 640 G8 (250F0EA, 4K7D5EA, 250F3EA, 4K7D4EA, 4K7D6EA)
HP ProBook 650 G4 (3ZG58EA, 3UP84EA, 3UN48EA, 3ZG60EA, 3ZG59EA, 4QZ20ES)
HP ProBook 650 G5 (6XE26EA, 7KN80EA, 7KP31EA)
HP ProBook 650 G8 (4K7D8EA, 250F5EA, 250F9EA, 4K7D7EA, 4K7D9EA)
HP ProBook x360 435 G7 (1F3H6EA, 1F3H5EA, 175X4EA)
HP ProBook x360 435 G8 (5N2H6ES, 45R04ES)
HP ProBook x360 440 G1 (4QX99ES, 4QY00ES, 4QY01ES)
HP Specter x360 14-ef0000nc (72F64EA)
HP Specter x360 14-ef0001nc (72F65EA)
HP Specter x360 14-ef0002nc (72F68EA)
HP Specter x360 14-ef0003nc (72H77EA)
HP Specter x360 14-ef0004nc (72H78EA)
HP Thunderbolt 120 W Cable (3XB94AA)
HP Thunderbolt Dock G2 Combo Cable (3XB96AA)
HP ZBook 14u G5 (2ZC32ES, 2ZC03EA, 2ZC31ES, 2ZC33ES, 2ZC34EA)
HP ZBook 14u G6 (6TV23EA, 6TP71EA, 6TP66EA)
HP ZBook 15u G5 (2ZC08EA, 2ZC30ES, 2ZC29ES)
HP ZBook 15u G6 (6TP79EA, 6TP59EA, 6TP54EA)
HP ZBook Firefly 14 G7 (111B9EA, 111D0EA, 111C6EA, 111C8EA, 111D1EA, 111C2EA, 111C0EA)
HP ZBook Firefly 14 G8 (525C7EA, 2C9R9EA, 2C9Q4EA, 525G7EA, 2C9Q1EA, 2C9Q9EA)
HP ZBook Firefly 14 G9 (69Q71EA, 69Q70EA, 453A3ES, 453A2ES)
HP ZBook Firefly 15 G7 (111G3EA, 111F1EA, 111D7EA, 111D9EA, 111F7EA, 111F5EA)
HP ZBook Firefly 15 G8 (2C9S5EA, 2C9S4EA, 452Z6ES, 313P1EA, 453A4ES, 525D9EA, 2C9S8EA, 313Q4EA, 525D8EA, 452Z7ES, 452Z5ES, 2C9S6EA, 2C9S3EA, 2C9S1EA)
HP ZBook Firefly 16 G9 (453A1ES, 453A0ES, 69Q41EA, 452Z9ES)
