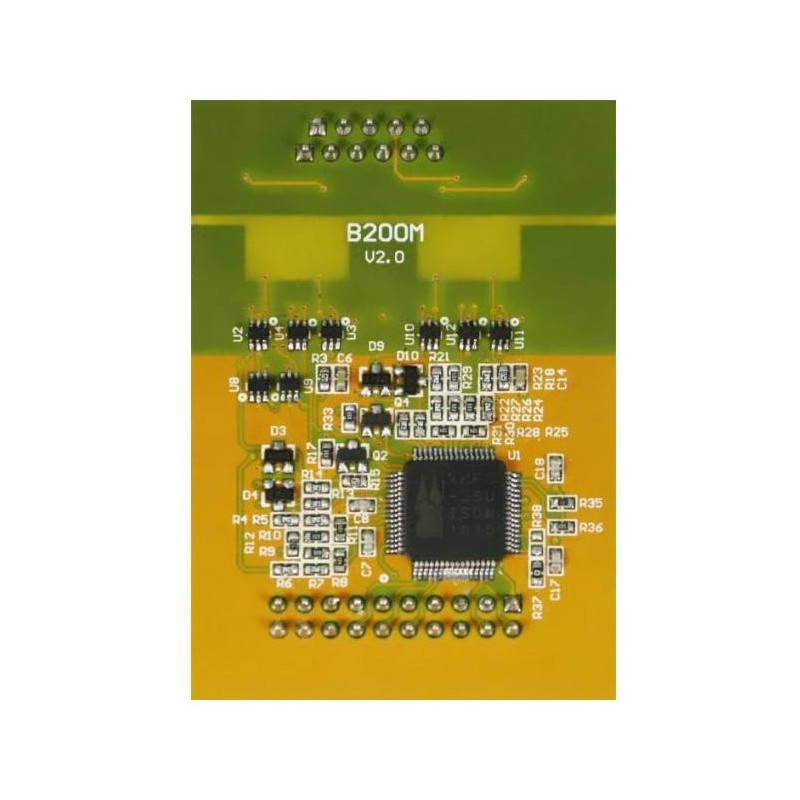

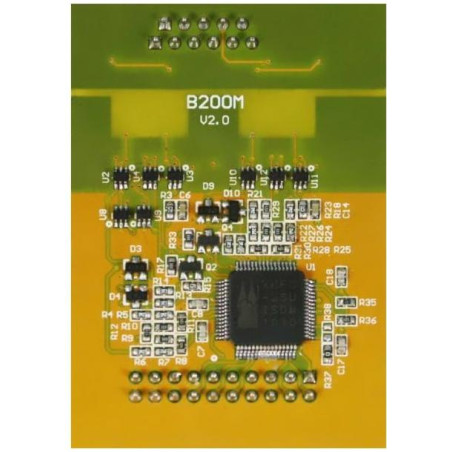

Yeastar BRI module for Yeastar PBXs – 2x BRI port for 2 ISDN2 lines

Yeastar BRI module The module has two BRI ports for connecting 2 digital ISDN2 lines (4 channels). BRI ports can also be used as a backup channel in case of an Internet connection failure, similar to FXO ports. The module is compatible with all Yeastar exchanges. After expanding the Yeastar exchange with this module, the exchange can be used, for example: To connect to the NT equipment of a telecommunications operator, and thus receive/send calls or faxes from a BRI (ISDN2) state line. To connect to a classic analog exchange, having a BRI connection, which will enable, for example, a simple transition of company telephony from classic telephony to IP telephony while maintaining the original exchange and telephones, or even while maintaining the original ISDN2 connection. To connect digital ISDN telephones directly to the exchange. To connect any other ISDN digital device to the exchange, such as ISDN faxes, ISDN routers or ISDN modems. The module or module port can be set to operate in TE or NT mode. Signaling on the port can then be: CPE Point-to-Point (BRI_CPE) CPE Point-to-Multipoint (BRI_CPE_PTMP) NET Point-to-Point (BRI_NET) NET Point-to-Multipoint (BRI_NET_PTMP) Note: The BRI module, and therefore the entire mPBX series switchboard, does not supply power to the ISDN bus (S0). Therefore, the bus power must be provided by the device connected to the ISDN port of this switchboard (NT, analog switchboard, ISDN telephone, etc.). This module can be used in Yeastar switches of the MyPBX series (SOHO, Standard, U100, U200, U300, U5x0), Smart PBX (N412), S series (S20, S50, S100, S300) and P series (P550, P560, P570). For Yeastar S100, S300, P560 and P570 PBXs, the Yeastar EX08 expansion card is required to install the expansion module. BASIC SPECIFICATIONS Function: 2x BRI port for 2x ISDN2 line Compatibility: Yeastar MyPBX (SOHO, Standard, U100, U200, U300, U5x0) Yeastar Smart PBX (N412) Yeastar S series (S20, S50, S100, S300) Yeastar P series (P550, P560, P570) Yeastar S100, S300, P560 and P570 (EX08 expansion card is required for these models)
