JRC GentleBOX JR-200 outdoor box for parabolas PAR-24, PAR-29

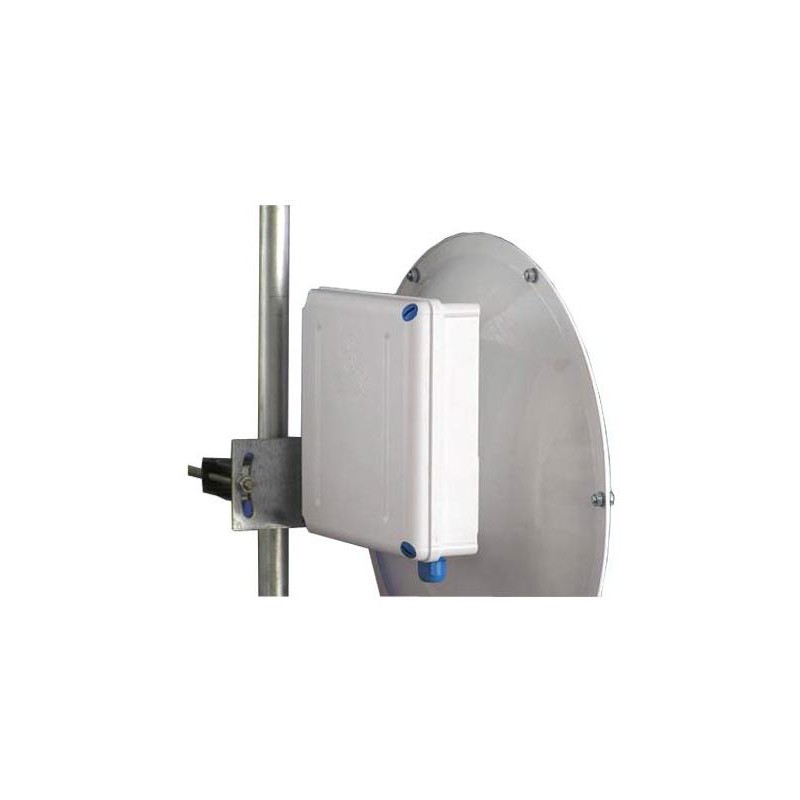

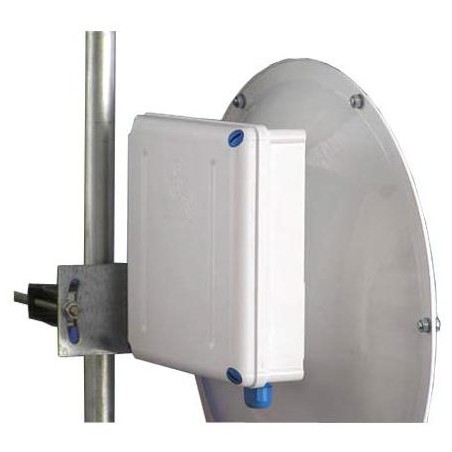

JRC GentleBOX JR-200

The JR-200 is a complete and ideal outdoor box for AP, RouterBOARD and other electronics. This box is designed to be placed directly on the antenna dish! Mounting parts for the AP or RouterBoard mount are included in the delivery.

Designed exclusively for mounting on PAR24-EXT, PAR24-PRO and PAR29-PRO antennas, including MIMO versions of these antennas.

This BOX is a very suitable solution for protecting AP, RouterBOARD and other devices from weather conditions. The BOX is already supplied as a complete solution - there is no need for any modifications or finding waterproof cable glands or material for holding the AP or RouterBoard in the BOX. All you need for assembly is a wrench, flat and Phillips screwdriver. Easy operation and assembly are also ensured by special recesses that prevent the glands from rotating when tightening or loosening. Any device not exceeding 186x186x53 mm in size can be placed in the BOX.

BASIC SPECIFICATIONS

External dimensions: 203 × 203 × 65 mm

Internal dimensions: 186 × 186 × 53 mm

Protection: IP56 provided that there is a device with safe voltage inside

Material: UV stabilized ABS plastic, Polyamide

Mast mounting: 19 – 54 mm (bracket included with antenna)

Accessories included in the package:

Captive bayonet "screws" for easy closing of the BOX: 4 pcs.

Cable gland for cables: 4 – 10 mm, 2 pcs.

Screws for mounting electronics + plastic posts: 4 + 4 pcs
