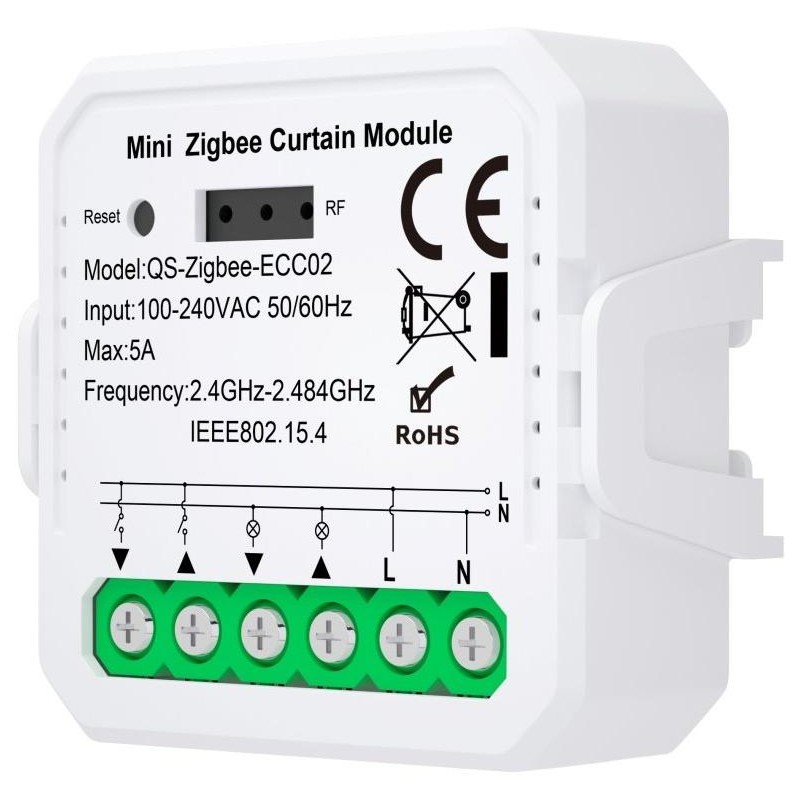

IMMAX NEO SMART controller for controlling blinds and shutters, Zigbee 3.0, TUYA

IMMAX NEO Smart controller for controlling blinds and shutters

Special controller for controlling blinds and roller shutters communicating on the ZigBee 3.0 protocol. Window blinds can be easily controlled via the IMMAX NEO PRO application or you can set smart scenes that will ensure their automatic raising and lowering according to your daily schedule, sunrise or sunset or current weather. The controller is compatible with iOS, Android, Amazon Alexa, Apple Siri shortcuts, Google Assistant and the Lidl system.

Note: The controller requires connection to the IMMAX NEO BRIDGE PRO Smart Zigbee 3.0 smart gateway (sold separately) or another TUYA hub based on the ZigBee 3.0 standard.

BASIC SPECIFICATIONS

Interface: Zigbee 3.0, Tuya support

Frequency: 2400–2483.5 MHz

Maximum RF output power: ZigBee: 10-19 dBm

Wireless range: 30 m line of sight, 10 m in built-up areas

Maximum load current: 5 A

Power supply: AC 100-240V

Operating temperature: -10 to +40 °C

Dimensions: 39 × 39 × 18 mm (without holder)

Degree of protection: IP20

Color: white

IMMAX NEO PRO:



Android app

iOS app
