IMMAX NEO SMART three-phase energy consumption meter, Wi-Fi, TUYA

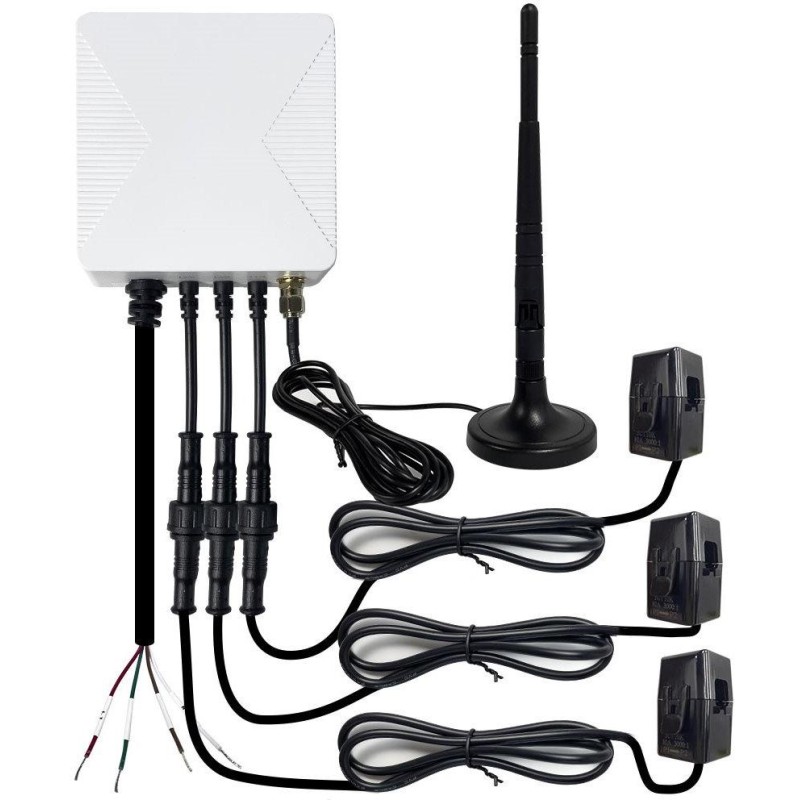

IMMAX NEO SMART three-phase energy consumption meter

The three-phase energy meter with Wi-Fi connectivity allows you to monitor the electricity consumption in your home by connecting the terminals to the power cables. In addition, it can measure voltage, current, power factor and active power.

Advantages of a three-phase contactless energy consumption meter:

•

• Accurate consumption measurement: Allows you to measure energy consumption in real time on all three phases separately or on three different single-phase circuits, which is useful for detailed monitoring of consumption of the entire house or individual appliances.

• Easy installation: Non-contact measurement allows current sensors to be easily attached to wires without the need to interrupt them. Installation can be done quickly and easily, minimizing interference with the electrical network.

• Multi-parameter monitoring: In addition to current, it also measures voltage, grid frequency, and calculates power and total consumption, providing a comprehensive overview of electricity consumption and grid quality.

• Remote monitoring: Thanks to Wi-Fi connectivity and compatibility with the IMMAX NEO PRO app (Smart Life, Tuya Smart), values can be conveniently monitored remotely. Consumption information is updated every 2 seconds, allowing for a continuous overview from anywhere.

• Energy and cost savings: A detailed consumption overview makes it easier to identify energy-intensive appliances or circuits and optimize energy use, which can lead to savings on electricity costs.

• Suitable for a wide range of uses: It is ideal for monitoring consumption of the entire household as well as for specific appliances or circuits, allowing you to adapt the measurement to different needs.


BASIC SPECIFICATIONS

Interface: Wi-Fi (802.11b/g/n)

Frequency: 2400–2483.5 MHz

Maximum RF output power: 20 dBm

Current measurement range: max. 80 A per phase

Measurement and data update frequency: every 2 seconds

Calibrated measurement accuracy: <= 100 W within ±2 W, >100 W within ±2%

Diameter of measuring sleeves: 10 mm

Power supply: AC 100-240V

Operating temperature: -20 to +55 °C

Main unit dimensions: 86 × 86 × 37 mm

Color: white
