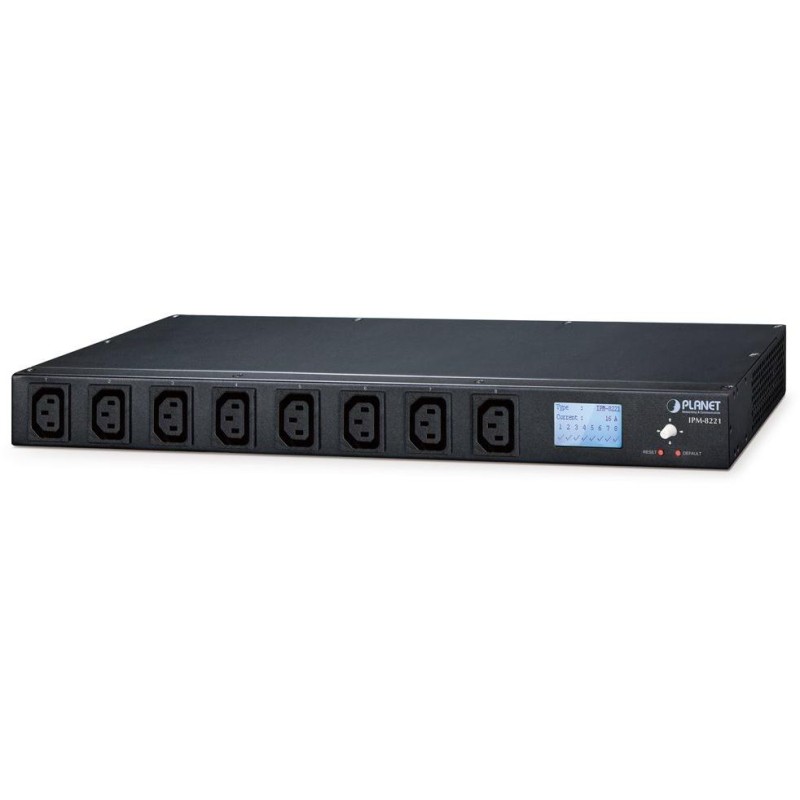

Planet IPM-8221, IP control 8x sockets 240V/10A, 1U Rack/desktop, LED+display, sensor port

PLANET IPM-8221

IP remote control of 8 IEC 60320 (C13) electrical sockets via web interface . Consumption monitoring for each socket, scheduler, connection of an environmental monitoring sensor (included in the package).

Logging of event and power data. Sending regular and alarm email notifications. Secure access via TCP/IP, UDP, HTTP/HTTPS (TLS 1.2), NTP, DHCP. Status LEDs and display.

BASIC SPECIFICATIONS

Features:

•

• Web browser control HTTP/HTTPS (TLS 1.2), TCP/IP, UDP, NTP, DHCP

• Restricting remote management access by source address

• MIB (Management Information Base) files for SNMP

• Output naming support

• Reports on voltage, current, power consumption and total kWh

• Setting overcurrent protection for each socket

• Wattmeter for each socket separately

• Logging of event and power data

• Calendar of regular automatic events

• Notification of events by sending a pop-up message or email

• IP filtering - IP address security masks to prevent unauthorized access


Number of sockets: 8

Connectors:

8x IEC 60320 C13 output

1× IEC320 C20 input

1× LAN RJ-45 10/100 Base-TX

1× RJ-11 for sensor connection

2× RJ-45 serial ports

Load: each socket up to 10 A, total 16 A

Switching voltage: AC 100–240 V, 50/60 Hz

Fuse: 16 A

Design: desktop or 19"/1U rack installation

Operating temperature: 0 °C to 60 °C, humidity up to 90%

Dimensions: 442 × 159 × 44.5 mm

Weight: 1.84 kg
