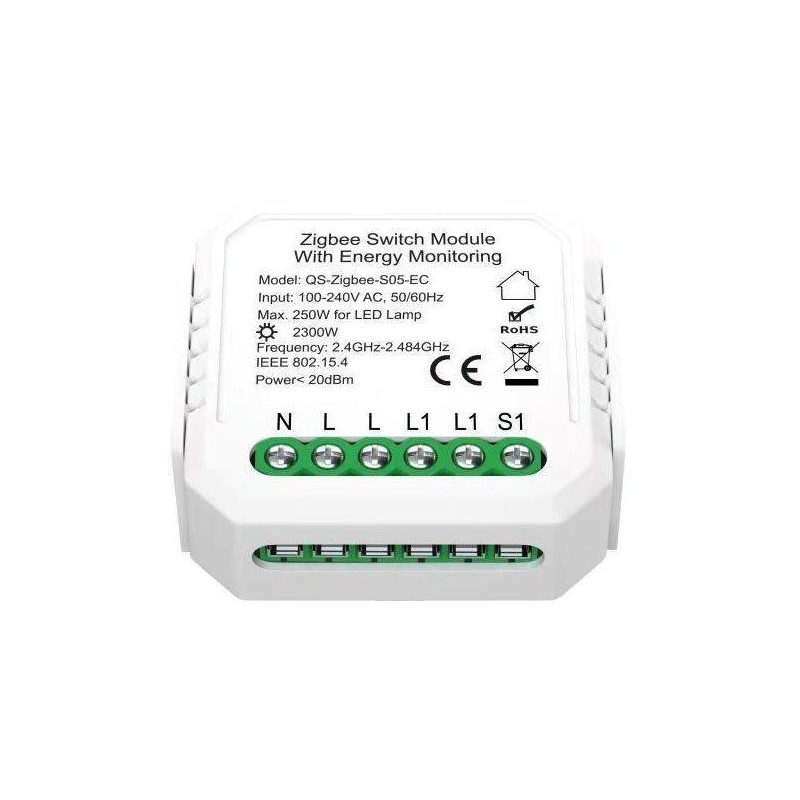

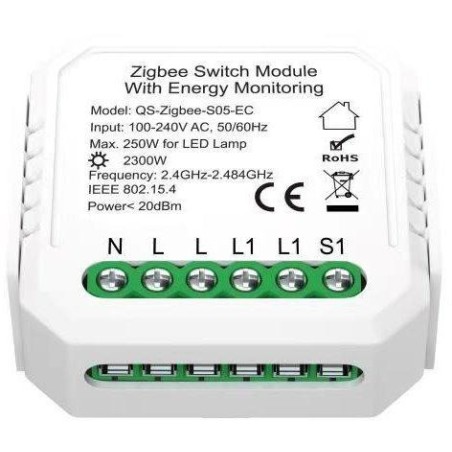

IMMAX NEO SMART controller with consumption measurement V6 1-button Zigbee 3.0, TUYA

IMMAX NEO SMART controller V6

Special controller for controlling light sources of the IMMAX NEO system communicating on the ZigBee 3.0 protocol. The controller can be dimmed or turned off, thanks to which you can have the lighting in your home under control at any time and become the "master of light". Of course, there is protection against overvoltage, overheating and overload. The controller is designed for mounting under a switch or in a luminaire and is fully compatible with iOS, Android, Amazon Alexa, Apple Siri, Google Assistant, TUYA and Lidl systems.

Note: The controller requires connection to the IMMAX NEO BRIDGE PRO Smart Zigbee 3.0 v2 smart gateway (sold separately) or another TUYA hub based on the ZigBee 3.0 standard.

BASIC SPECIFICATIONS

Interface: Zigbee 3.0

Frequency: 2400–2483.5 MHz

Wireless range: 30 m line of sight, 10 m in built-up areas

Maximum load: 2300 W/ 250 W for LED lighting

Power supply: AC 120-240V

Dimensions: 46 × 46 × 18 mm

Degree of protection: IP20

Color: white

TuyaSmart:



Android app

iOS app
