Ubiquiti UniFi Access G3 Starter Kit
A starter kit that provides complete entry and exit control for one door with one reader and Apple Touch Pass support.

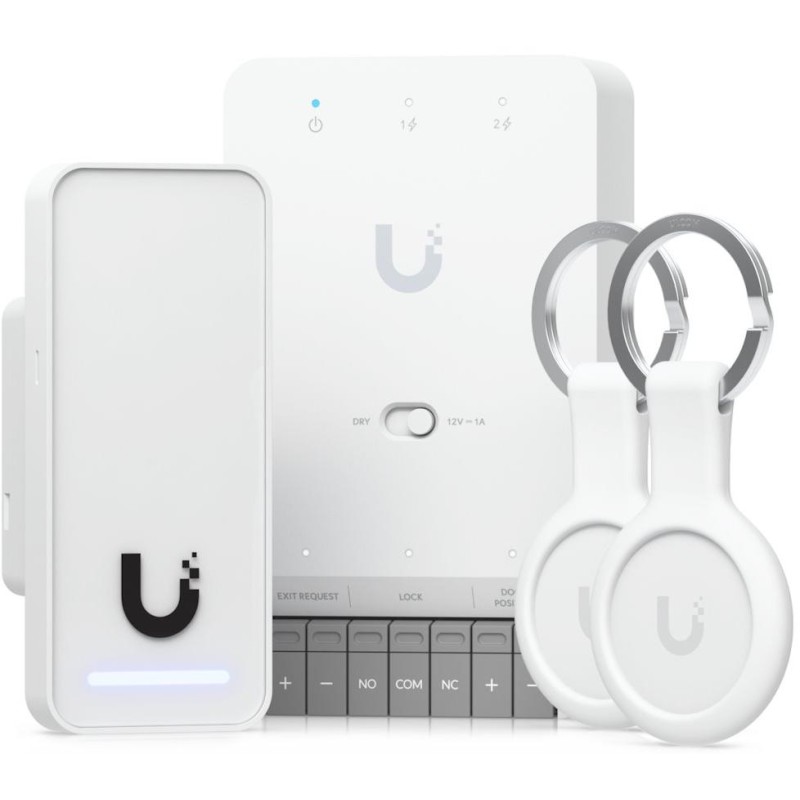

Starter kit contents:
1× UA-Hub-Door-Mini (hub/controller)
1× Ubiquiti UniFi Access Reader G3 (access reader)
2× UA-Pocket identification chip (identification/access card)
BASIC SPECIFICATIONS
UA-Hub-Door-Mini
Interface: 3× GbE RJ-45
PoE support: yes, 1× PoE++ input DC 50 V / 1 A, 2× PoE output (total 31 W)
Consumption: 19 W (50 W when using PoE outputs)
Relay outputs:
Dry: DC 30 V / 1 A
Wet: DC 12 V / 1 A
Weight: 190g
Dimensions: 113 × 66 × 27.6 mm
UA-G3-W
Mounting: flush-mounted
Interface: 1× 10/100 Mbps RJ-45, Bluetooth 4.1, NFC (13.56 MHz, Mifare)
Standards: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
Technology:
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
ECP 2.0
Power supply: PoE, 48 V DC, max. power consumption 5 W
Protection: IP55
Weight: 82g
Dimensions: 93 × 40 × 36.5 mm
Color: white
UA Pocket
RFID standard: 13.56 MHz
Dimensions: 84 × 39 × 7.4 mm
Weight: 16g
Color: white
Manual (assembly instructions):
dl.ui.com/qig/ua-g3-sk
