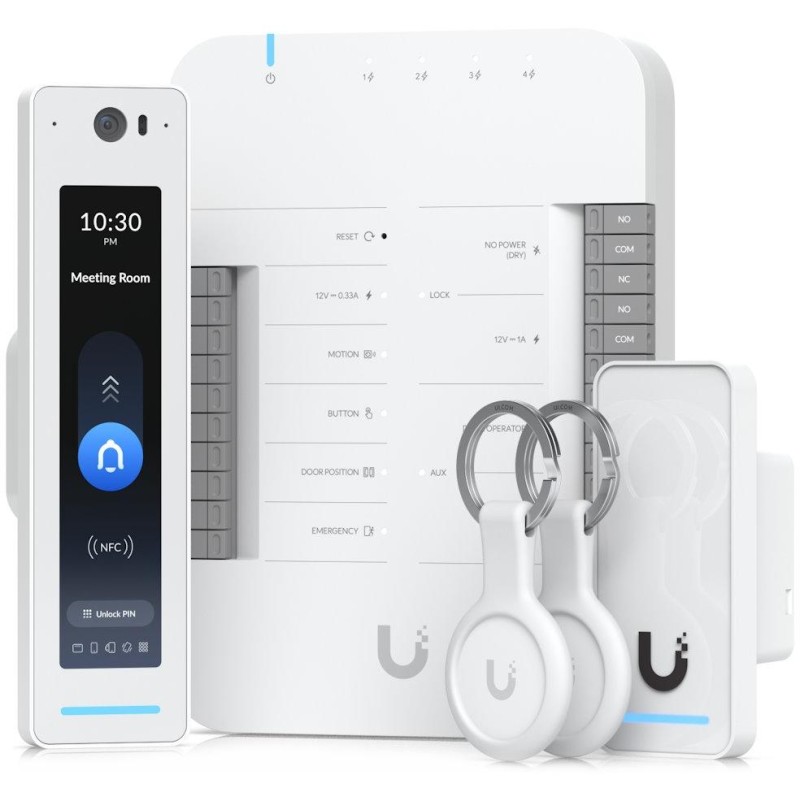

Ubiquiti UniFi Access G3 Starter Kit Pro
A starter kit that provides complete entry and exit control for one door with two readers and Apple Touch Pass support.
Starter kit contents:
1× UA-Hub-Door (hub/controller)
1× Ubiquiti UniFi Access Reader G3 Pro (access reader)
1× Ubiquiti UniFi Access Reader G3 (access reader)
2× UA-Pocket identification chip (identification/access card)
BASIC SPECIFICATIONS
UA-Hub-Door
Mounting: DIN, wall-mounted
Interfaces: 5× GbE RJ-45, 2× lock output, 2× AUX output, 4× digital input (for sensors and buttons), 1× DC 12 V/ 0.33A output
Power supply: PoE++ 802.3bt, max. power consumption 50 W
Weight: 363g
Dimensions: 174.9 x 126 x 32.9 mm
UA-G3-Pro-W
Mounting: on the wall
Interface: 1× GbE RJ-45, Bluetooth 4.2, NFC (13.56 MHz, Mifare)
Standards: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
Technology:
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa (ID only)
NFC forum tags T1T, T2T, T3T, T4T and T5T
ECP 2.0
Camera resolution: 12 Mpx (4000 × 3000 at 30 fps)
Power supply: PoE, 48 V DC, max. power consumption 6 W
Protection: IP55
Weight: 136g
Dimensions: 160 × 40.55 × 40.4 mm
Color: white
UA-G3-W
Mounting: flush-mounted
Interface: 1× 10/100 Mbps RJ-45, Bluetooth 4.1, NFC (13.56 MHz, Mifare)
Standards: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
Technology:
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
ECP 2.0
Power supply: PoE, 48 V DC, max. power consumption 5 W
Protection: IP55
Weight: 82g
Dimensions: 93 × 40 × 36.5 mm
Color: white
UA Pocket
RFID standard: 13.56 MHz
Dimensions: 84 × 39 × 7.4 mm
Weight: 16g
Color: white
Manual (assembly instructions):
dl.ui.com/qig/ua-g3-sk-pro
