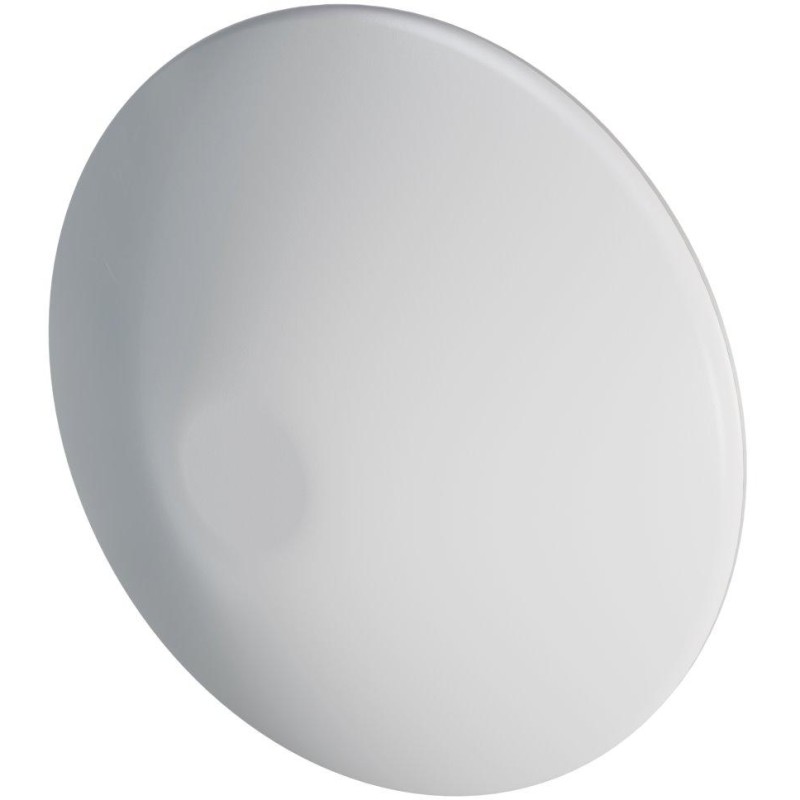

MikroTik ATL LTE18 kit, 3/4G (LTE18) modem, 4x4 MIMO, SIM slot, Gbit LAN, PoE+, RouterOS v7 L3

MikroTik ATL LTE18 kit ATL LTE18 kit is an outdoor unit with an integrated LTE modem Cat18 (ATLGM&EG18-EA) and a transfer rate of up to 1 Gbps. One of the key features is 4x4 MIMO and support for a wider range of frequency bands. The device is also suitable for very remote areas where standard Wi-Fi or line connection is not available, however, LTE service from a mobile operator is available. The device supports LTE/4G/3G connections. Inside the unit is an integrated modem with support for download up to 1.2 Gbps (limited by the GbE RJ-45 port) and uplink up to 150 Mbps. Power supply 12-57 V using active PoE+ (802.3at/af). LTE category: 18 (1.2 Gbps Downlink, 150 Mbps Uplink) LTE FDD bands: 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) LTE TDD bands: 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) 3G category: R8 (42.2 Mbps Downlink, 11.2 Mbps Uplink) 3G band: 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 8 (900 MHz) Package includes: 1x ATL LTE18 kit unit 2x metal strap for attachment 1x DC 24 V (0.8 A) 1x PoE injector Information about the RouterOS MikroTik system If you are starting with RouterOS MikroTik or if you need advice on a more complex setup, you can use our support. You can learn how to set up and manage the RouterBoard at our trainings. Setup tips and frequently asked questions can be found in the Technical Support section. All RouterBoards have the same RouterOS MikroTik system. All devices with RouterOS MikroTik fully support IPv6, have a firewall, Queues, NAT and with an L4 license support the CAPsMAN server. MikroTik can be set up via the web interface, via a mobile application, or with the winbox program, which can be downloaded from mikrotik.com. MikroTik has a "Quick Set" option for quick setup. There are several preset profiles to choose from. BASIC SPECIFICATIONS CPU: Marvell 88F3720 (1.2 GHz, 64-bit ARM, 2-core) Memory: 256 MB DDR3L RAM, 16 MB Flash Ports: 1x GbE RJ-45, 1x microSIM slot PoE support: yes, PoE+ 802.3af/at Antenna: 4x for mid-band (1.7 to 2.7 GHz), 2x for low-band (700 MHz to 1 GHz) Communication: 3G/4G/LTE Operating system: RouterOS v7 L3 Dimensions: 315 x 315 x 170 mm
